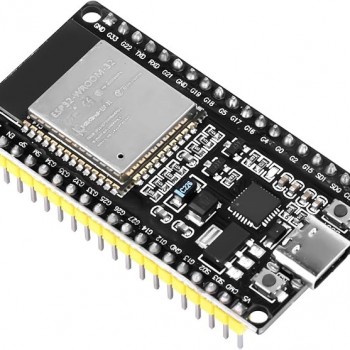

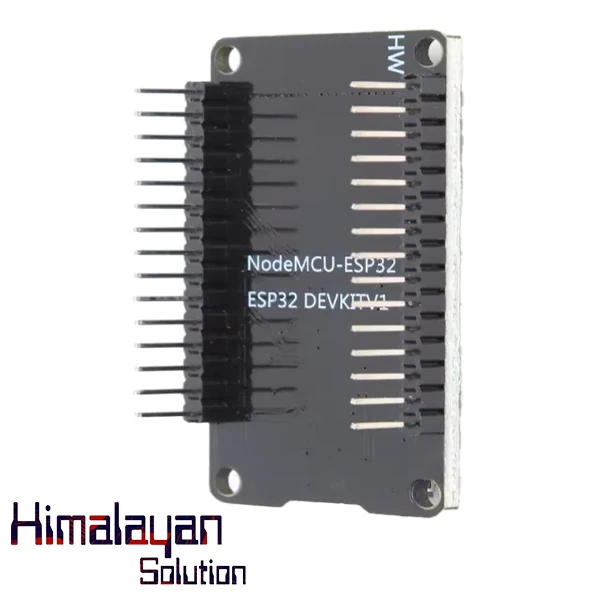

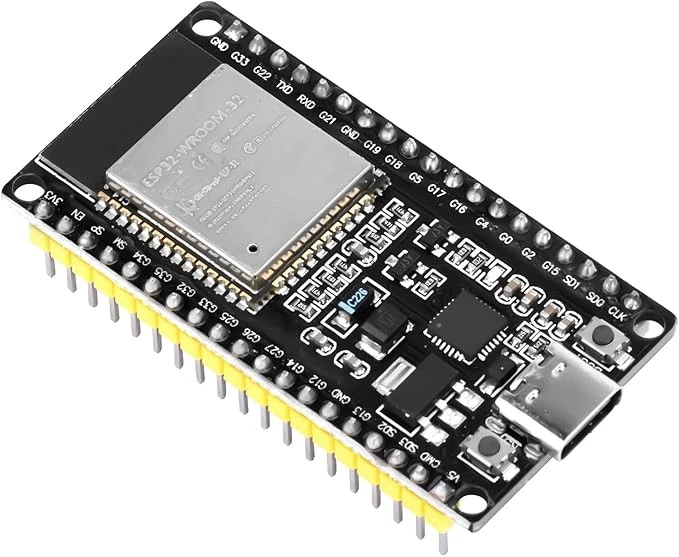

ESP32 DEVKIT V1 38-pin Type-C CP2102

The ESP32 DEVKIT V1 (38-Pin, Type-C, CP2102) is a powerful development board built around the ESP-WROOM-32 module. It features an ESP32 dual-core Tensilica LX6 processor with Wi-Fi and Bluetooth capabilities, making it ideal for IoT, automation, and embedded applications.

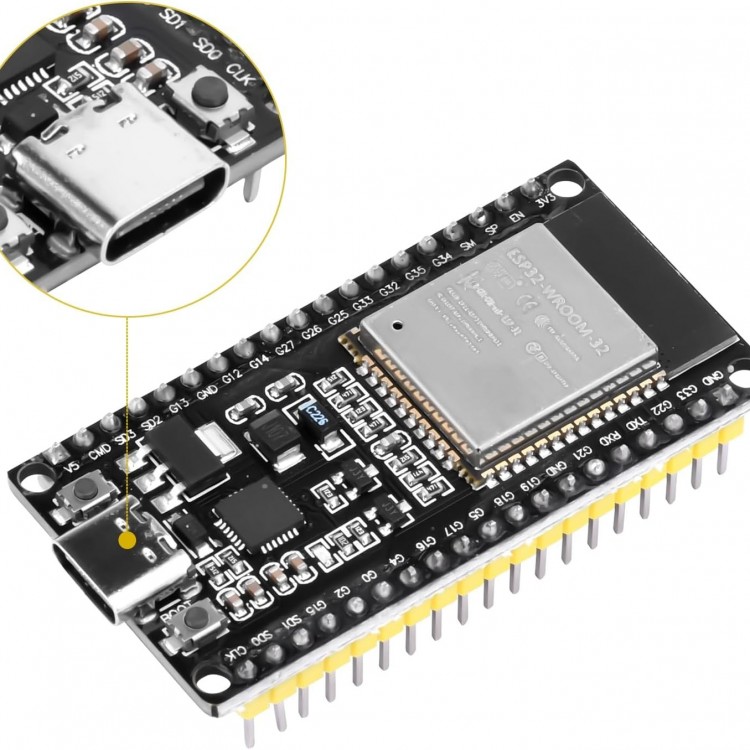

This version of the board comes with a USB Type-C connector for power and programming, replacing the traditional Micro-USB port. It also includes the CP2102 USB-to-UART bridge, ensuring reliable communication with computers for flashing firmware and serial debugging.

With 38 GPIO pins, support for ADC, DAC, PWM, capacitive touch sensors, and multiple communication interfaces, this board is well-suited for a wide range of projects, from home automation to robotics and industrial control systems.

Microcontroller & Performance

• ESP32-WROOM-32 module
• Dual-core Tensilica LX6 processor (up to 240MHz)
• 520KB SRAM, 4MB Flash memory

Wireless Connectivity

• Wi-Fi 802.11 b/g/n (2.4GHz)
• Bluetooth v4.2 (BR/EDR & BLE)

I/O and Interfaces

• 38 GPIO pins
• 12-bit ADC, 2-channel DAC
• PWM, capacitive touch sensors
• UART, SPI, I²C, I²S interfaces

Power & Programming

• USB Type-C for power and data transfer
• Onboard 3.3V voltage regulator
• 5V power input via USB
• CP2102 USB-to-UART bridge

Additional Features

• Boot and Reset buttons
• LED indicators (Power, Serial)
• Compact, breadboard-friendly design
