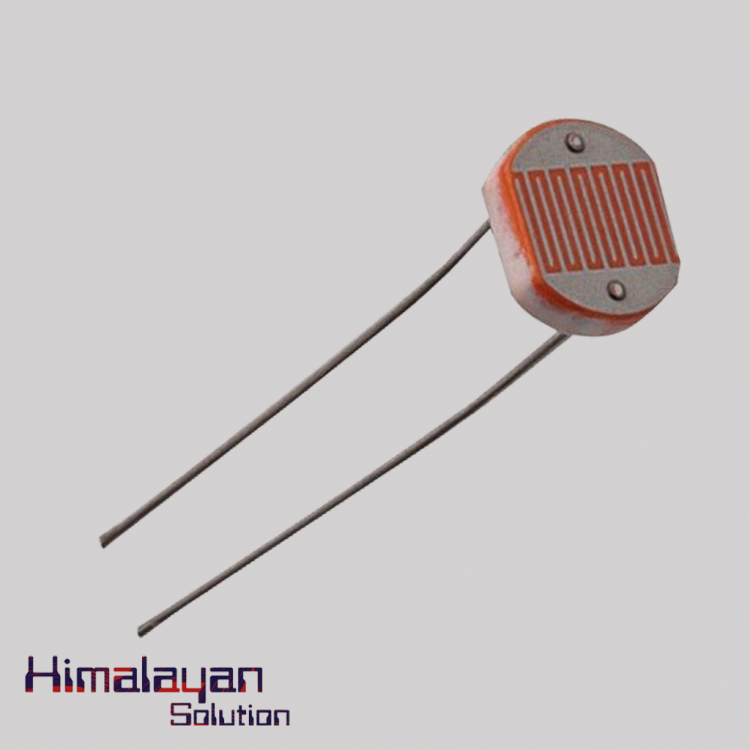

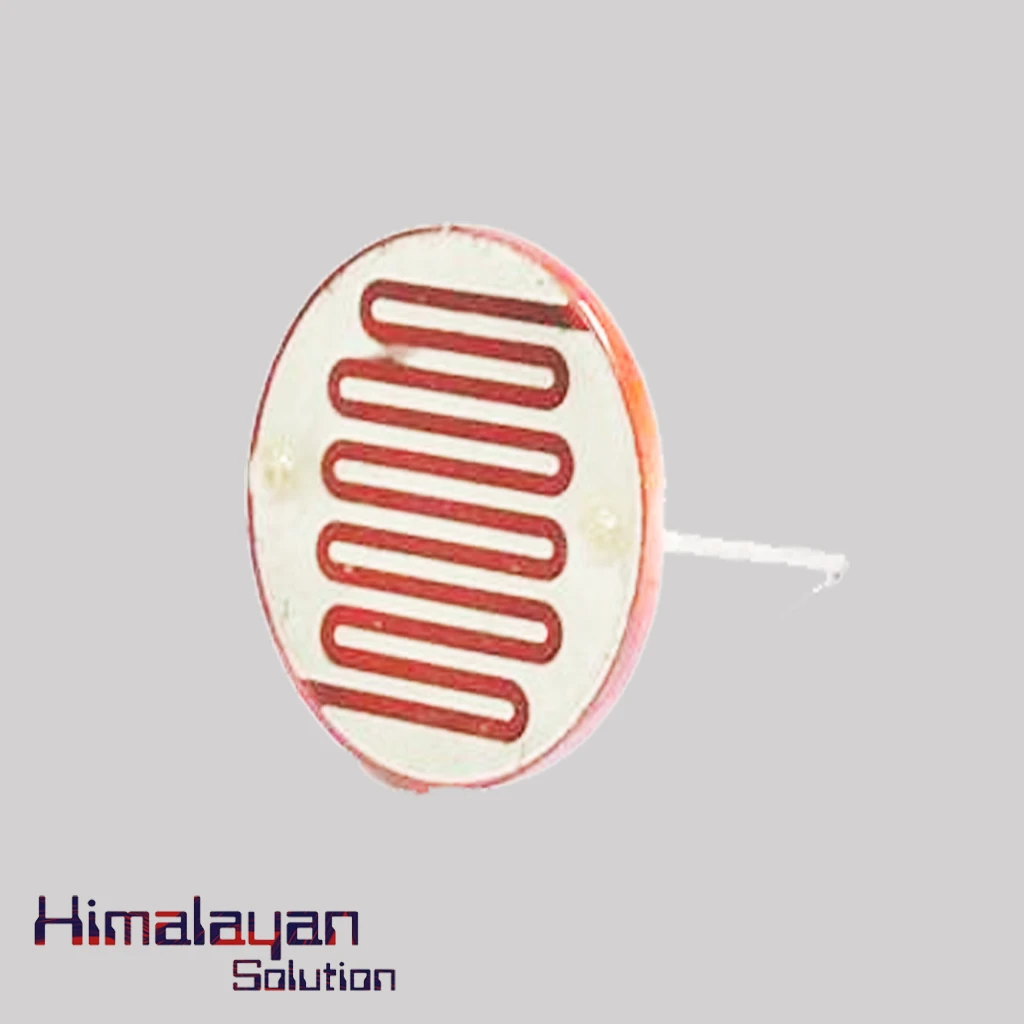

LDR
The LDR (Light Dependent Resistor) is sensitive to light and changes its resistance when light falls upon it. IT has quick response, reliable performance. Ldr is mostly used is photo switch, auto flash for camera and many more.
Availability: In Stock
| Light Resistance at 10Lux (at 25℃) | 8～20KΩ |
| Dark Resistance at 0 Lux | 1.0MΩ(min) |
| Gamma Value at 100-10 | Lux 0.7 |
| Power Dissipation(at 25℃) | 100mW |
| Max Voltage (at 25℃) | 150V |
| Spectral Response Peak (at 25℃) | 540nm |
| Ambient Temperature Range | -30～+70℃ |
