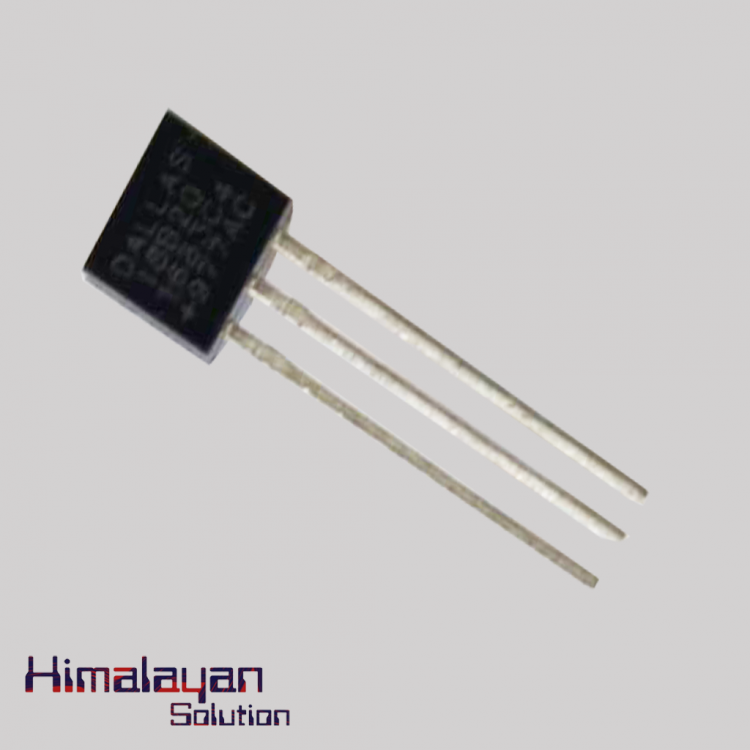

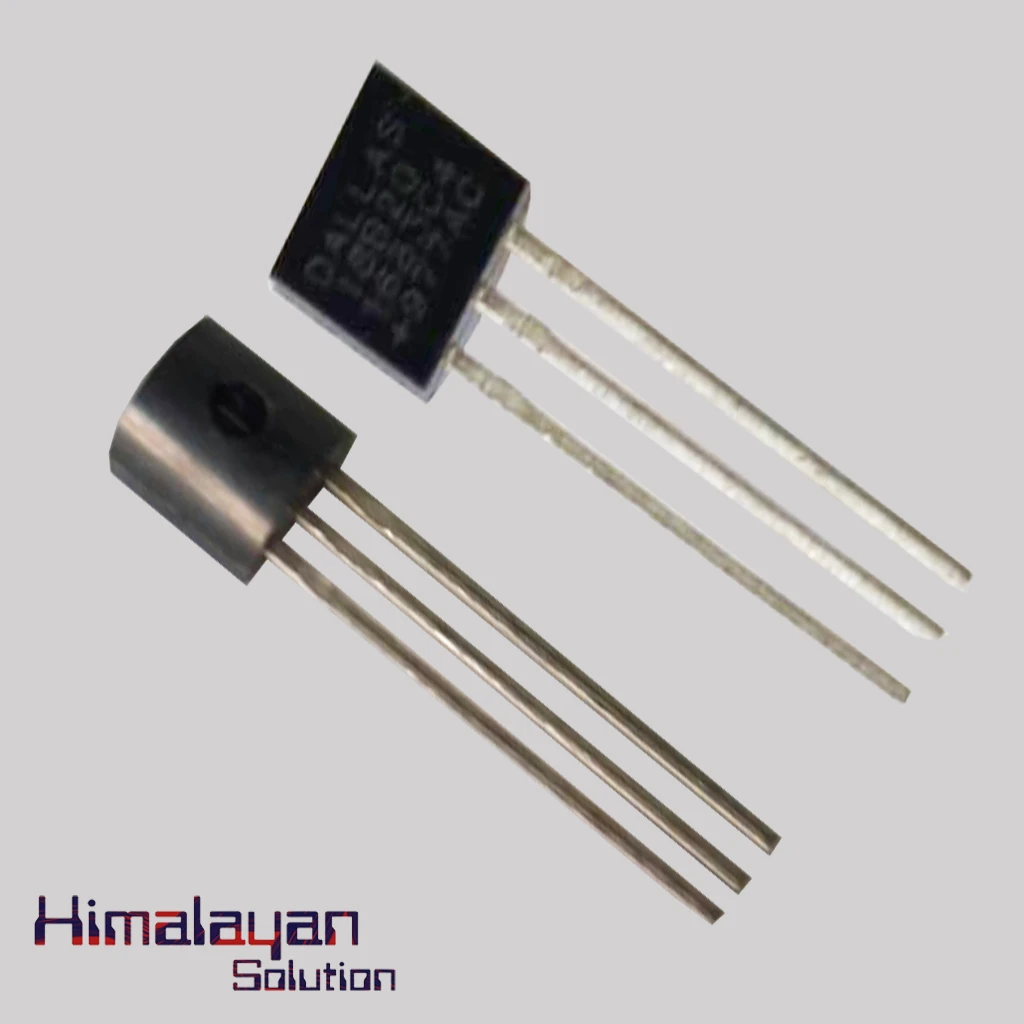

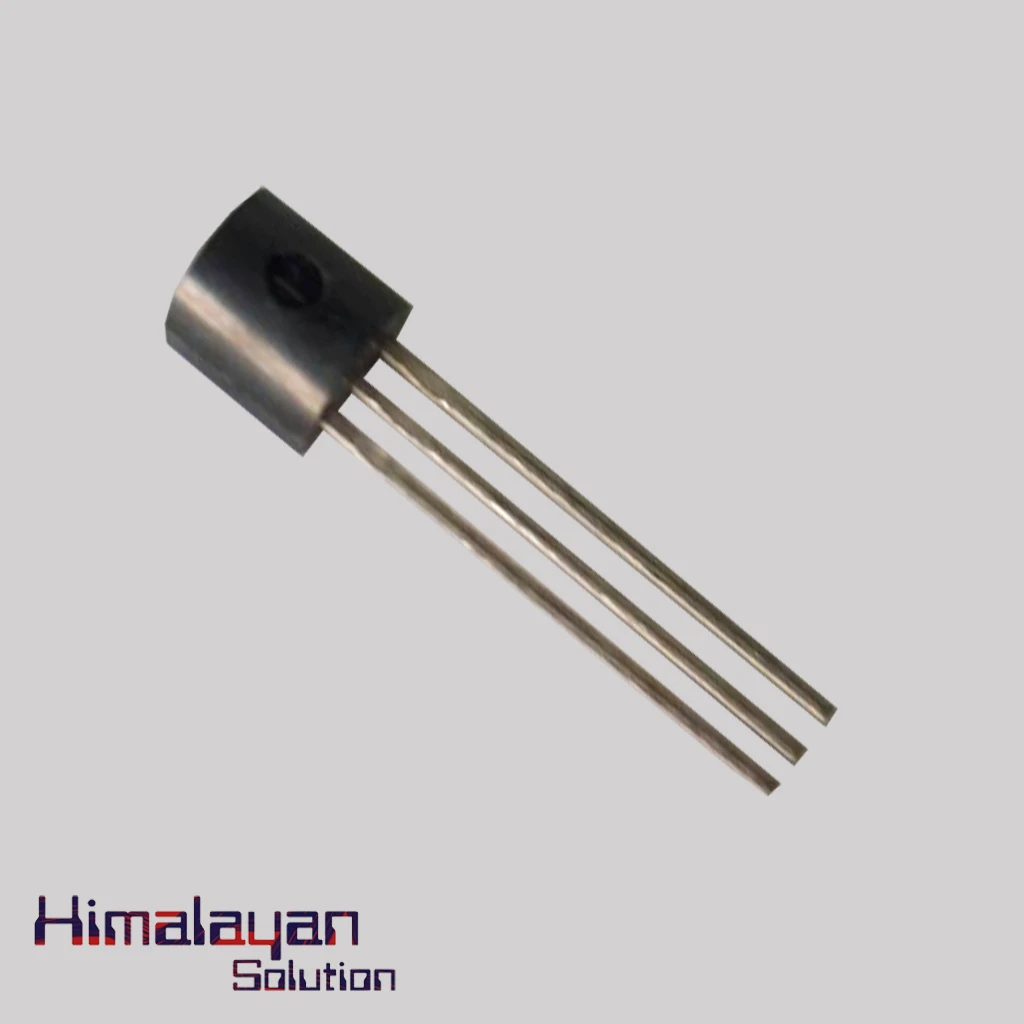

DS18B20 Temperature Sensor DS 18b20
The DS18B20 Sensor IC is a Digital Thermometer Integrated Circuit that provides 9-bit to 12-bit Celsius temperature measurements and also has an alarm function. It has various features like: - Requires no external components, Software compatible with the DS1822, Thermometer resolution is user selectable from 9 to 12 Bits, Unique 1-wire interface requires only one port pin for communication, a unique 64-bit serial code stored in an on-board Rom and many more. It can be suitable for various applications like Thermostatic controls, Industrial systems, Consumer products, Thermometers, or any thermally sensitive system etc.
Availability: Out Of Stock
| Name | DS18B20 Sensor IC |
| IC Output Type | Digital |
| Sensing Accuracy Range | ± 0.5 ° C |
| Temperature Detection Range | -55 ° C to +125 ° C |
| Supply Current | 1mA |
| Supply Voltage Range | 3V To 5.5V |
| Resolution | 12bit |
| Package Type | TO-92 |
| Pin Count | 3 |
| Sensor / Transducer Type | Temperature |
| Chip Label | 18B20 |
| Surface Mount Devices | Through Hole |
