Digital Multimeter Xl830L

The XL830L Handheld Digital Multimeter is a compact and user-friendly tool designed for accurate electrical measurements. With a clear 15mm high LCD display, it measures DC/AC voltage, current, and resistance. This versatile multimeter features diode and transistor testing, continuity checks with buzzer alerts, and low battery indication. Perfect for electricians, DIY enthusiasts, and students, it’s a reliable instrument for various applications, including circuit board repairs and educational purposes

In Category:

Electric Tools

Availability: In Stock

Email to a Friend

Enquiry

Display:	15mm high LCD, Max 1999, auto polarity
DC Voltage:	200mV to 600V (±0.5% to ±0.8%)
AC Voltage:	200V to 600V (±1.2%)
DC Current:	200μA to 10A (±1% to ±3%)
Resistance:	200Ω to 2MΩ (±0.8%)
Features:	Diode and transistor testing, continuity test with buzzer, low battery indication
Operating Temperature:	0°C to 40°C
Fuse Protection:	F-200mA/250V
Dimensions:	Approx. 138mm x 69mm x 31mm
Battery:	9V

The XL830L Digital Multimeter is a practical tool for electricians, featuring an easy-to-operate design that displays readings directly on a clear 15mm high LCD screen. This versatile multimeter is perfect for overhauling various circuit boards and serves as an ideal teaching instrument for students.

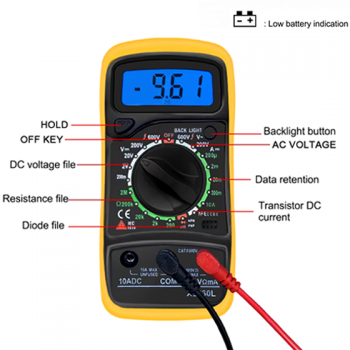

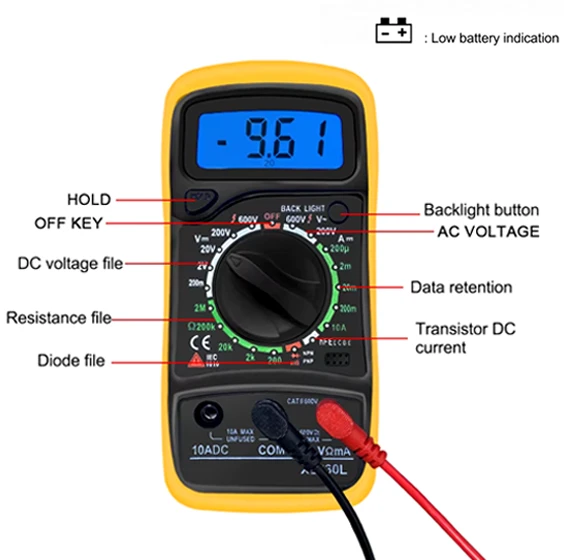

Key Features:

Max Display: 1999 with auto polarity indication.
Portable and Compact Design: Overload protection on all ranges.
Diode and Transistor Testing: Includes diode assembly test, P-N junction test, and transistor HFE test.
Continuity Testing: Equipped with a buzzer sound for circuit continuity tests.
Low Battery Voltage Indication: Alerts users when battery replacement is needed.

Measurement Specifications:

DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%
AC Voltage: 200V/600V ±1.2%
DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±0.8%
Fuse Protection: F-200mA/250V
Operating Temperature: 0°C to 40°C
Overrange Indication: Displays "1" for out-of-range measurements.
Polarity Indication: "-" displayed for negative polarity.
Low Battery Indication: Displays "-" or "+" for low battery.

Additional Information:

Battery: 9V .
Dimensions: Approx. 138mm x 69mm x 31mm

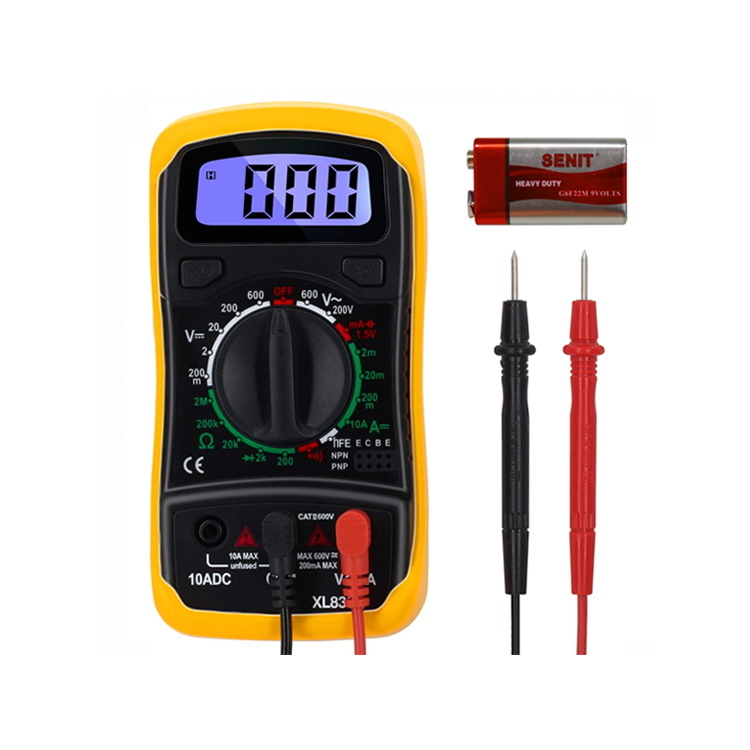

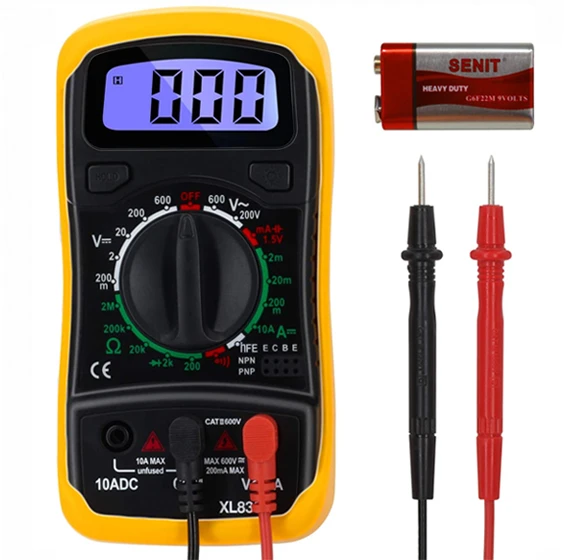

Package Includes:

1 x LCD Digital Multimeter
2 x Test Leads
1 x Back Cover
1 x English User Manual

This multimeter is an essential tool for anyone working with electrical systems, offering precision and reliability in a compact and user-friendly package.
