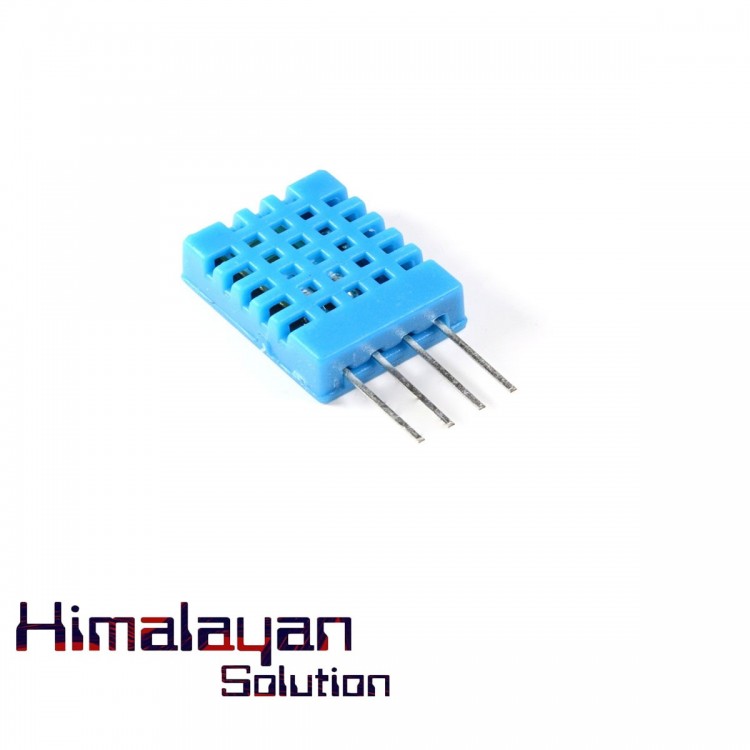

DHT11 Temperature and humidity Sensor

The DHT11 is a commonly used Temperature and humidity sensor that comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data.

DHT11  Specifications

• Operating Voltage: 3.5V to 5.5V
• Operating current: 0.3mA (measuring) 60uA (standby)
• Output: Serial data
• Temperature Range: 0°C to 50°C
• Humidity Range: 20% to 90%
• Resolution: Temperature and Humidity both are 16-bit
• Accuracy: ±1°C and ±1%
