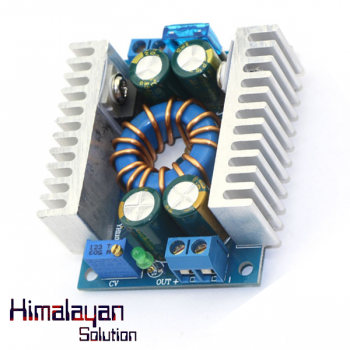

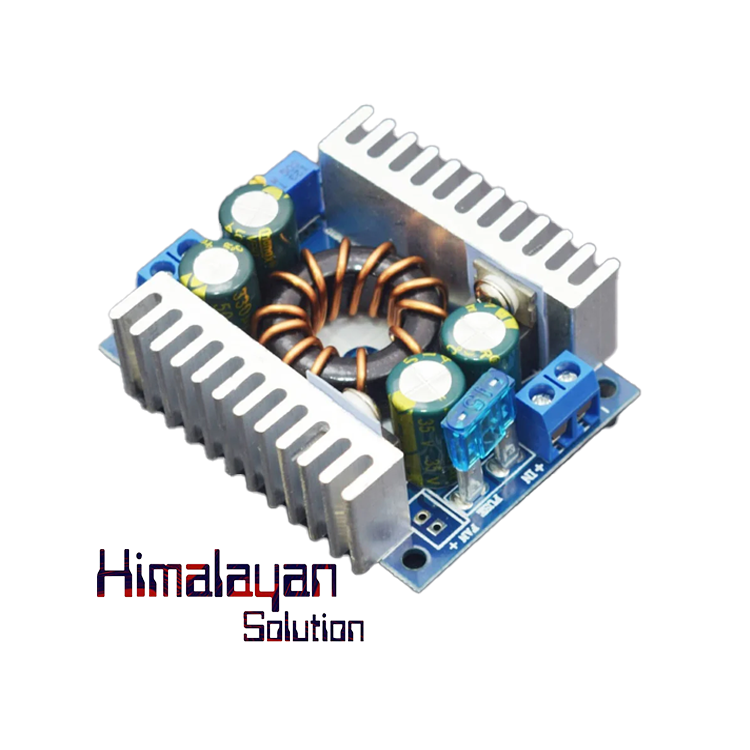

DC Boost Converter Power Module 150W
This 150W DC-DC boost converter power module is designed to step up a DC voltage to a higher DC voltage with a maximum power output of 150 watts. These modules are commonly used in applications where a higher voltage is needed from a lower voltage source, such as battery-powered systems or renewable energy applications.
Features:
- Input Voltage Range: 8V to 32V DC.
- Output Voltage Range: Adjustable or fixed, usually from 8V to 46V DC.
- Output Power: Rated for a maximum 150W of output power.
- High Efficiency: Typically between 85% and 95%.
- Adjustable Output Voltage: Often includes a potentiometer or digital control to set the desired output voltage.
- Current Output: Can deliver up to 6.25A at lower output voltages (e.g., 24V) and lower current at higher voltages (e.g., 3.125A at 48V).
- Built-in Protection Features:
- Overcurrent protection to prevent damage from excessive current.
- Overvoltage protection to avoid dangerous voltage spikes.
- Thermal protection to shut down if overheating occurs.
Availability: Out Of Stock
| Item | DC-DC Boost Regulator |
| Input Voltage | 8-32V |
| Output Voltage | 8-46V |
| Power Rating | 150W |
| Protection | Overcurrent, Overvoltage, and Thermal |
| Heatsink | Built-in |
