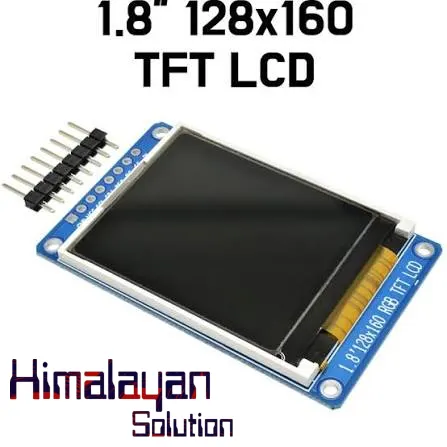

Board for ArdTFT LCD - Full Colour TFT LCD Display 1.8 inch(128x160) SPI Interfaceuino IDE

0 /5.0 (0 reviews)

This 1.8-inch full-colour TFT LCD display board offers a crisp 128x160 resolution and an SPI interface, making it easy to integrate with Arduino IDE projects. It is ideal for adding vibrant graphical output to your microcontroller applications, from sensor dashboards to custom user interfaces. With straightforward wiri...

Need More Information?

Message Us Now

Bring your Arduino projects to life with this 1.8-inch full-color TFT LCD display board. With a crisp 128x160 resolution and SPI interface, it delivers vibrant graphics and smooth performance for your embedded applications. Whether you're building a weather station, a custom UI, or a retro game console, this display provides the clarity and responsiveness you need.

Designed specifically for Arduino IDE compatibility, this board plugs directly into your existing setup, eliminating complex wiring and reducing development time. The SPI interface ensures fast data transfer with minimal pin usage, leaving more GPIO pins free for sensors and other peripherals. Its compact size makes it perfect for portable projects where space is at a premium.

Enjoy rich colors and sharp text thanks to the high-quality TFT panel. The onboard level shifting and regulation mean you can connect it directly to 5V or 3.3V logic without extra components. Start creating stunning visual interfaces today with this versatile and reliable display board.

Specifications

Model

ArdTFT LCD 1.8 inch Module

Display Size

1.8 inch diagonal

Resolution

128 x 160 pixels

Display Type

Full Colour TFT LCD

Interface

SPI (Serial Peripheral Interface)

Operating Voltage

3.3V to 5V DC

Logic Level Compatibility

3.3V and 5V tolerant

Compatibility

Arduino IDE, Arduino Uno, Mega, Nano, and similar microcontrollers

Dimensions

Approx. 35mm x 50mm (module PCB)

Package Contents

1 x 1.8 inch TFT LCD Display Module

FAQs

This 1.8 inch TFT LCD board is designed for use with Arduino boards and the Arduino IDE. It works with popular models like Arduino Uno, Mega, and Nano using the SPI interface.

Connect the display's SPI pins (SCK, MOSI, CS, DC, RESET) to your Arduino's digital pins. Then install the Adafruit ST7735 or similar library via the Arduino IDE Library Manager to start displaying graphics.

The package includes one 1.8 inch TFT LCD display module with an SPI interface. Jumper wires and an Arduino board are not included unless specified in the listing.

Yes, it is a full-color TFT LCD with a resolution of 128x160 pixels, capable of displaying up to 65K colors for vibrant images and text.

Warranty and return policies vary by seller. Please check the specific product listing for details on warranty coverage and return eligibility, typically offering a 30-day return window for defective items.

Yes, it is beginner-friendly. With the SPI interface and available Arduino libraries, you can quickly set up the display using example sketches provided in the library.
