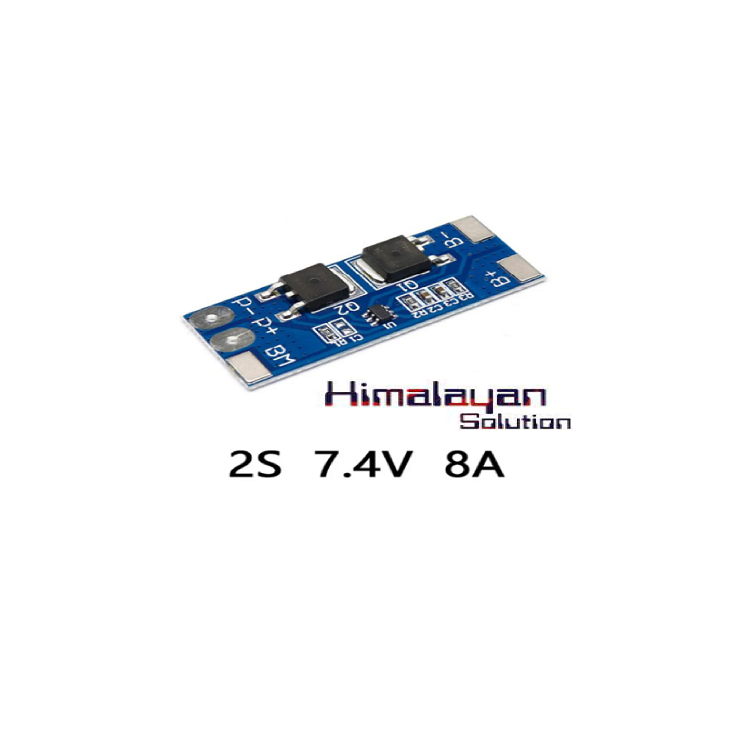

2s Bms (HX-2s-D01)
Model: HX - 2s - D01
charging pressure range: 4.25V ~ 4.35V ±0.05
discharge voltage range: 2.5V ~ 3.0V ±0.05
Maximum working current: 8A
working temperature: -40 ~ +50 °
Maximum instantaneous current: 10A
storage conditions: -40 ~ +80 °
Static electricity: less than 10uA
useful life: more than 50000 hours
Resistance: less than 300mΩ
short circuit protection: to protect and restore must charge
Charging voltage: 8.4V - 9V
Availability: Out Of Stock

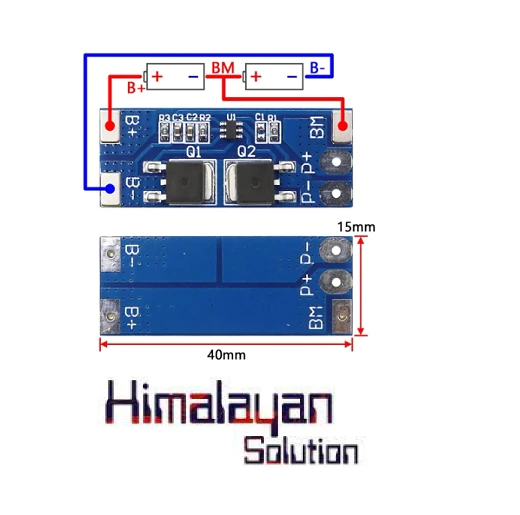

2S BMS Cnnection instruction :
B. + connect battery anode;
B. - connect battery cathode;
MB, connect battery 1 and 2 before the join points;
P. + correct answer the charge/discharge (charging/discharging end sharing);
P. - answer the charge/discharge end negative (charging/discharging end sharing).
Package included:
1pc* Charger Protection Board
