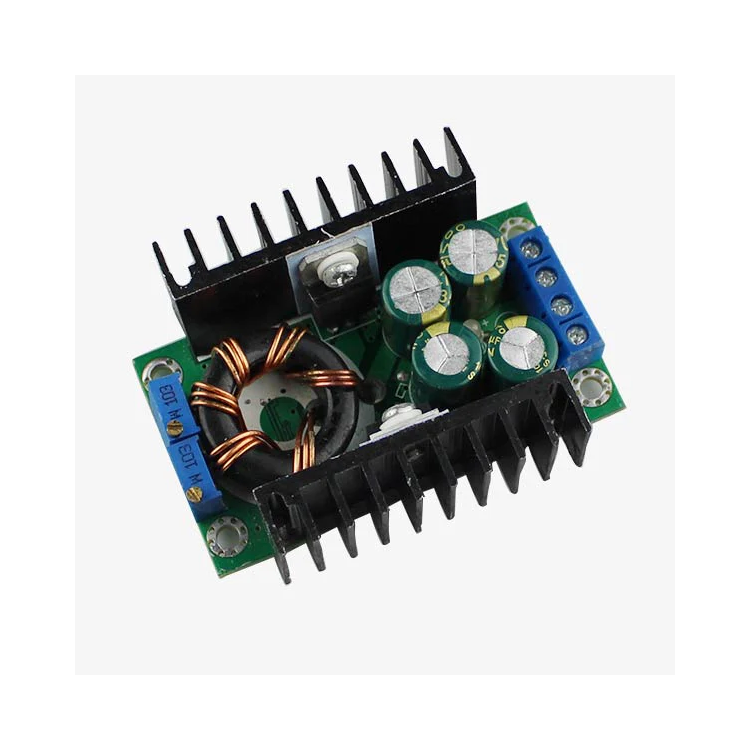

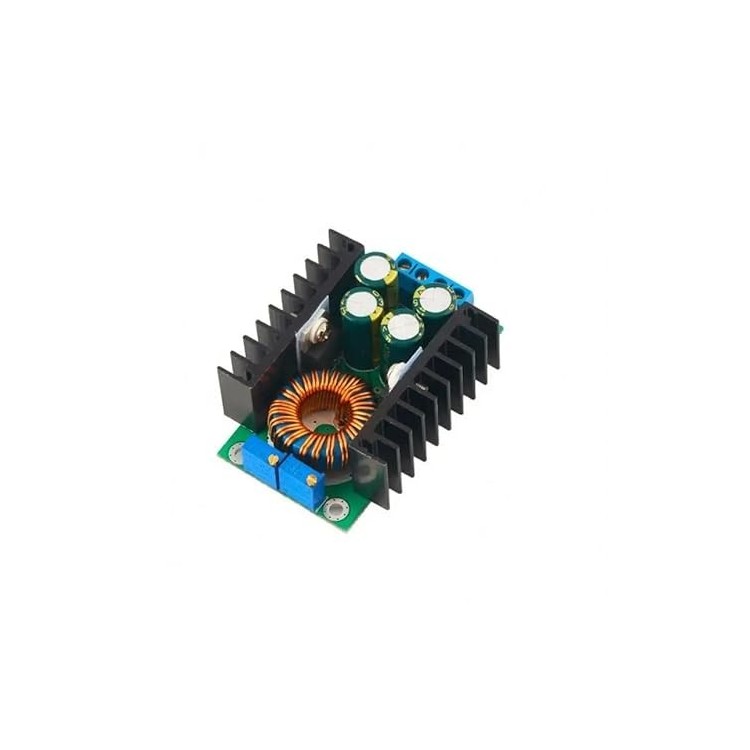

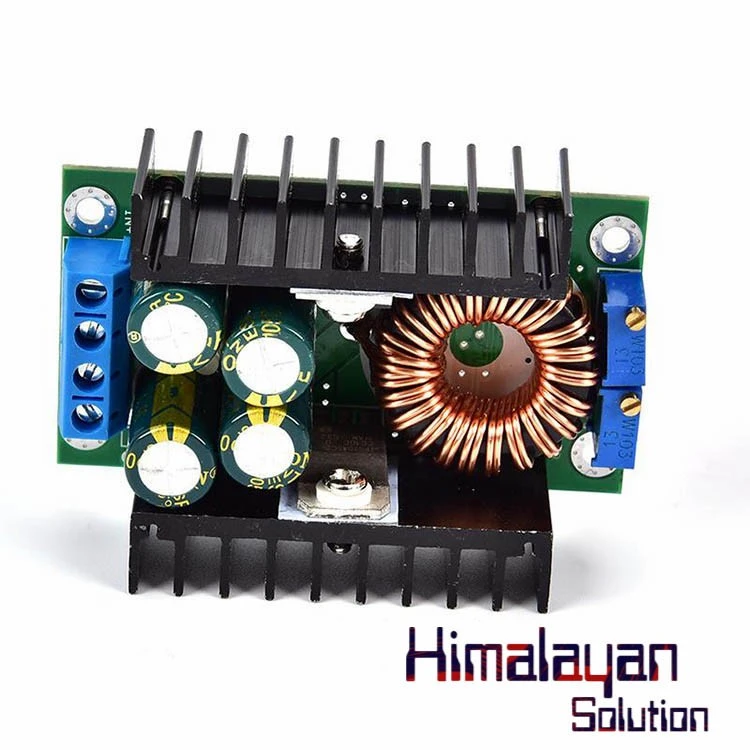

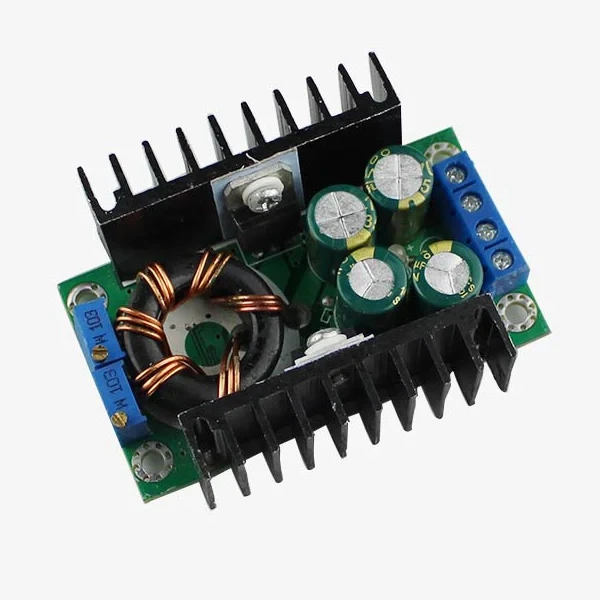

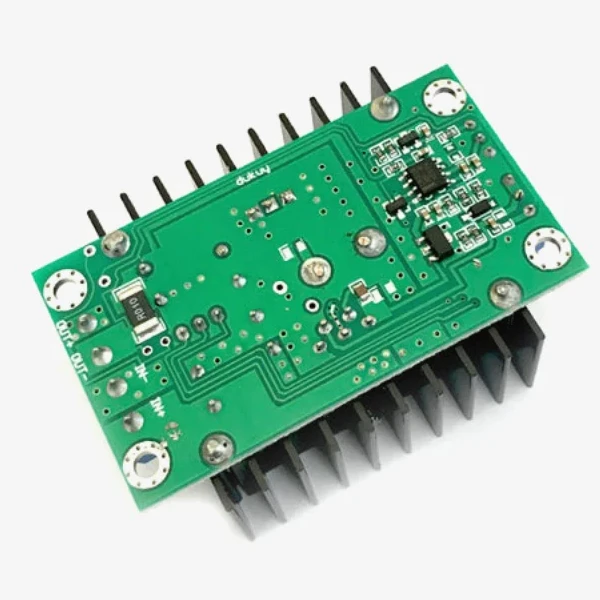

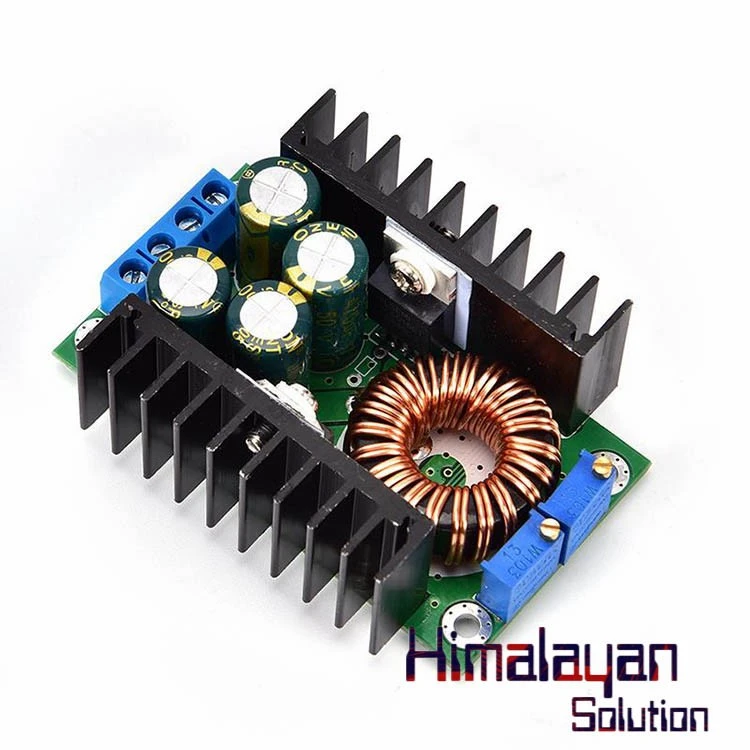

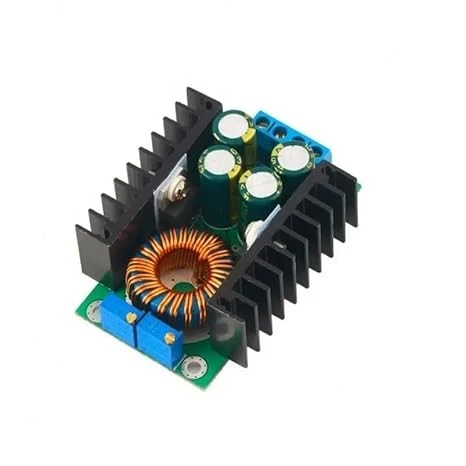

XL4016 Step Down Buck Converter 300W 10A
XL4016 300W 10A DC-DC Buck Converter
Efficiently step down DC voltage with this high-power XL4016 Buck Converter. Adjustable output from 1.2V to 30V and up to 10A current make it ideal for battery charging, LED drivers, and more. With 95% efficiency and precise multiturn potentiometer controls, it ensures stable, customizable power. Perfect for any project needing reliable DC regulation in a compact design!
Availability: In Stock
| Model: | XL4016 DC-DC Step Down Buck Converter |
| Input Voltage: | 5V to 40V DC |
| Output Voltage: | Adjustable from 1.2V to 30V DC |
| Output Current: | Up to 10A |
| Power Output: | 300W max |
| Conversion Efficiency: | Up to 95% |
| Operating Frequency: | 180 kHz |
| No-Load Current: | 20mA (24V input to 12V output) |
| Voltage Regulation: | ±1% (constant load) |
| Temperature Range: | -40°C to +85°C |
| Dimensions: | 22 x 65 x 47 mm |
| Adjustments: | Multiturn potentiometers for voltage and current |
| Applications: | Battery charging, LED drivers, vehicle power supplies, and more |
XL4016 DC-DC Step Down Buck Converter, 300W 10A Power Supply Module
This high-performance XL4016 Step Down Buck Converter is ideal for applications where you need to reduce a DC voltage efficiently and reliably. With a powerful 300W output and up to 10A of current, this module is designed for versatility, supporting a wide range of voltage adjustments from 1.2V to 30V. It’s perfect for various uses, including battery charging, LED drivers, and automotive power supplies.
The converter's multiturn potentiometers enable precise control over both voltage and current, providing stable, adjustable power output tailored to your needs. Its 95% conversion efficiency ensures minimal energy loss, making it suitable for continuous high-power applications. Plus, with its compact design and robust temperature tolerance (from -40°C to +85°C), this module is reliable in diverse environments.
Key Features:
- Powerful Output: Up to 300W, 10A maximum current
- Adjustable Voltage: 1.2V to 30V for versatile applications
- High Efficiency: 95% conversion efficiency minimizes energy loss
- Precision Control: Multiturn potentiometers for accurate voltage and current regulation
- Wide Range of Applications: Suitable for battery charging (12V, 9V, 24V, etc.), LED drivers, vehicle power supplies, and more
- Compact and Durable: Dimensions 22 x 65 x 47mm with a rugged design for long-lasting performance
Specifications:
- Input Voltage: 5V to 40V
- Operating Frequency: 180 kHz
- Temperature Range: -40°C to +85°C
- No-Load Current: 20mA (when stepping down from 24V to 12V)
This XL4016 Buck Converter is your solution for adjustable, high-power DC voltage control, whether you're working on electronics projects, automotive enhancements, or other power regulation needs.
