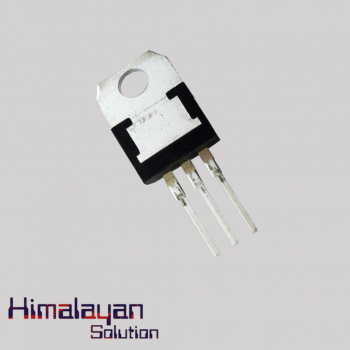

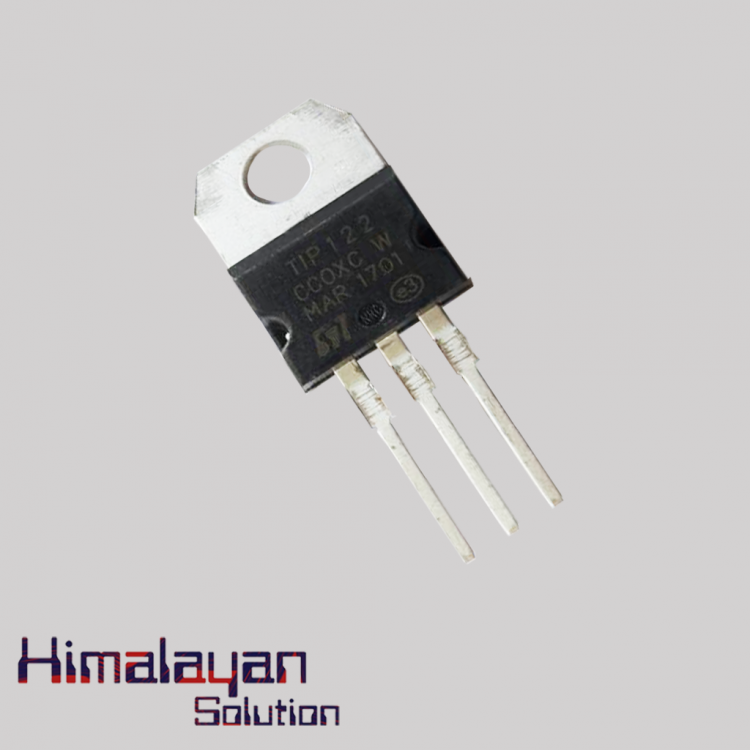

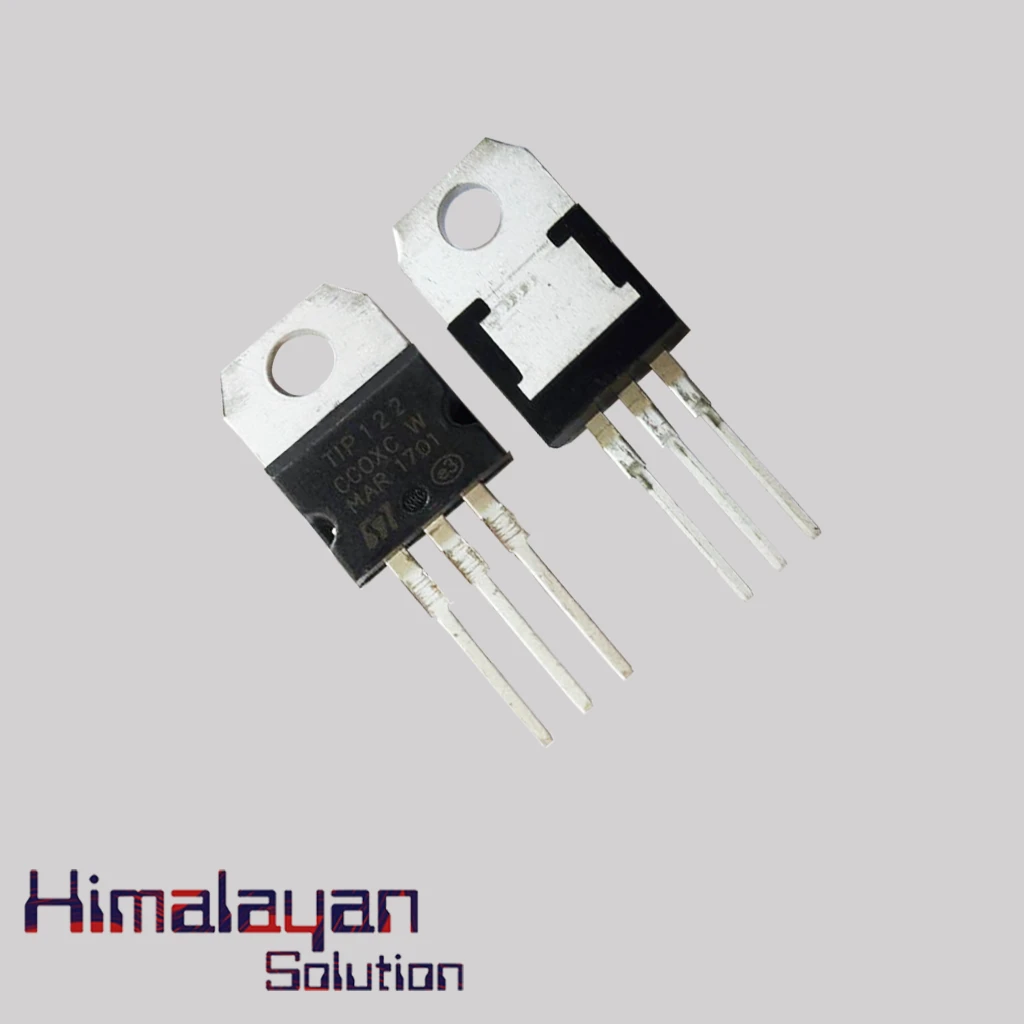

TIP 122 IC
The TIP 122 IC is a Medium Power Darlington Bipolar Transistor which is designed for general purpose amplifier and low speed switching applications. It has various features like: - High DC current gaining capacity, Monolithic construction, Collector to emitter sustaining voltage, Low collector to emitter saturation voltage, Pb-free packaged and many more.
Availability: In Stock
| Name | TIP 122 IC |
| Collector- Emitter Voltage (VCEO) (Max) | 100 V |
| Emitter- Base Voltage (VEBO) | 5 V |
| Collector- Base Voltage (VCBO) | 100 V |
| Maximum DC Collector Current | 5 A |
| Maximum Collector Cut-off Current | 200 uA |
| Mounting Style | Through Hole |
| Package / Case | TO-220 AB |
| Operating Temperature Range | -65°C to 150°C |
| Transistor Polarity | NPN |
| Height | 9.4 mm |
| Length | 10.67 mm |
| Width | 4.83 mm |
