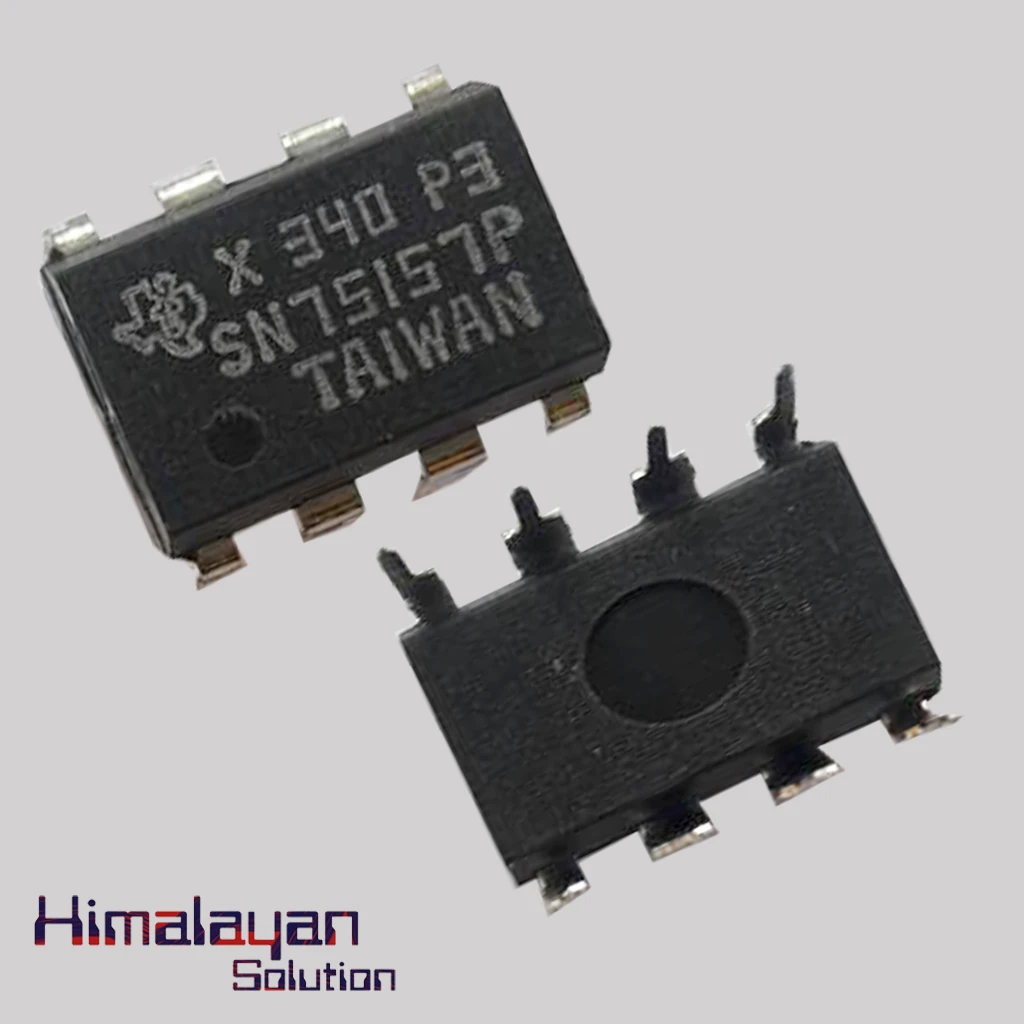

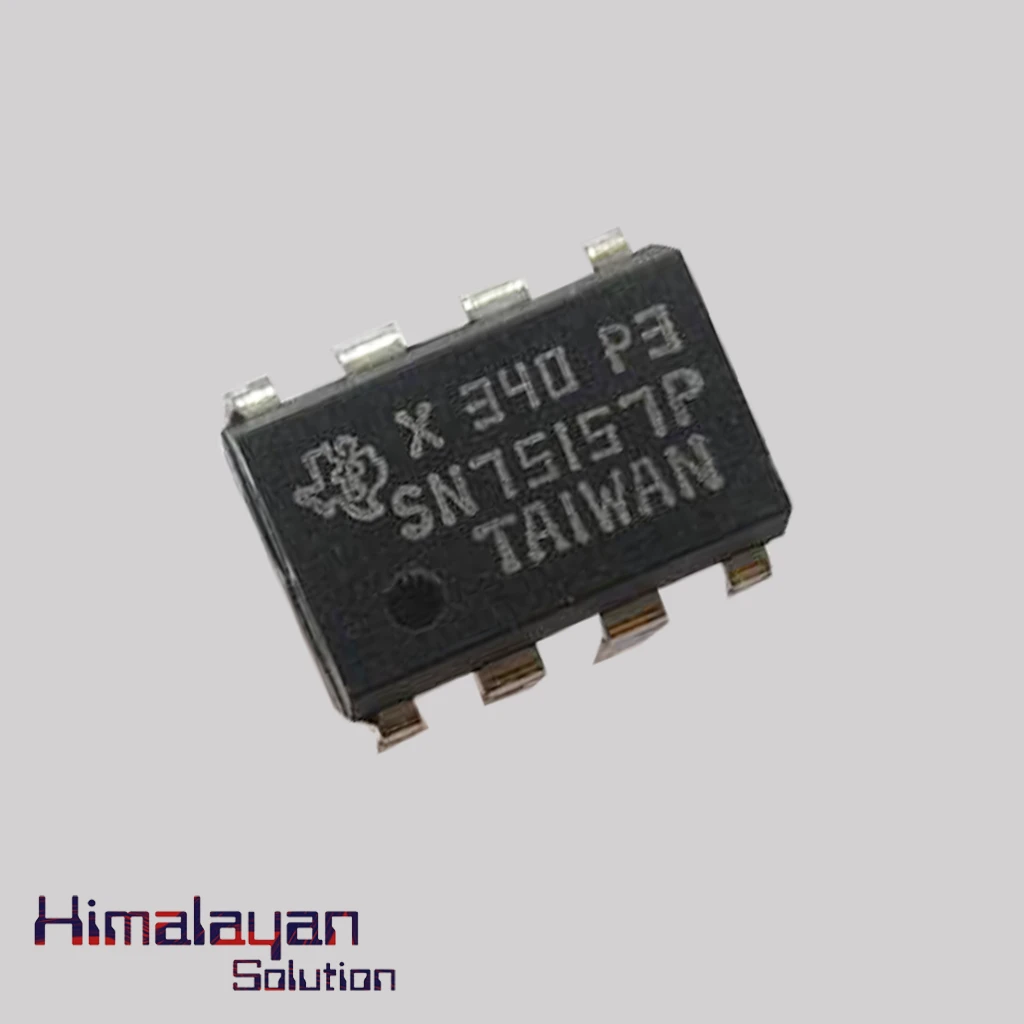

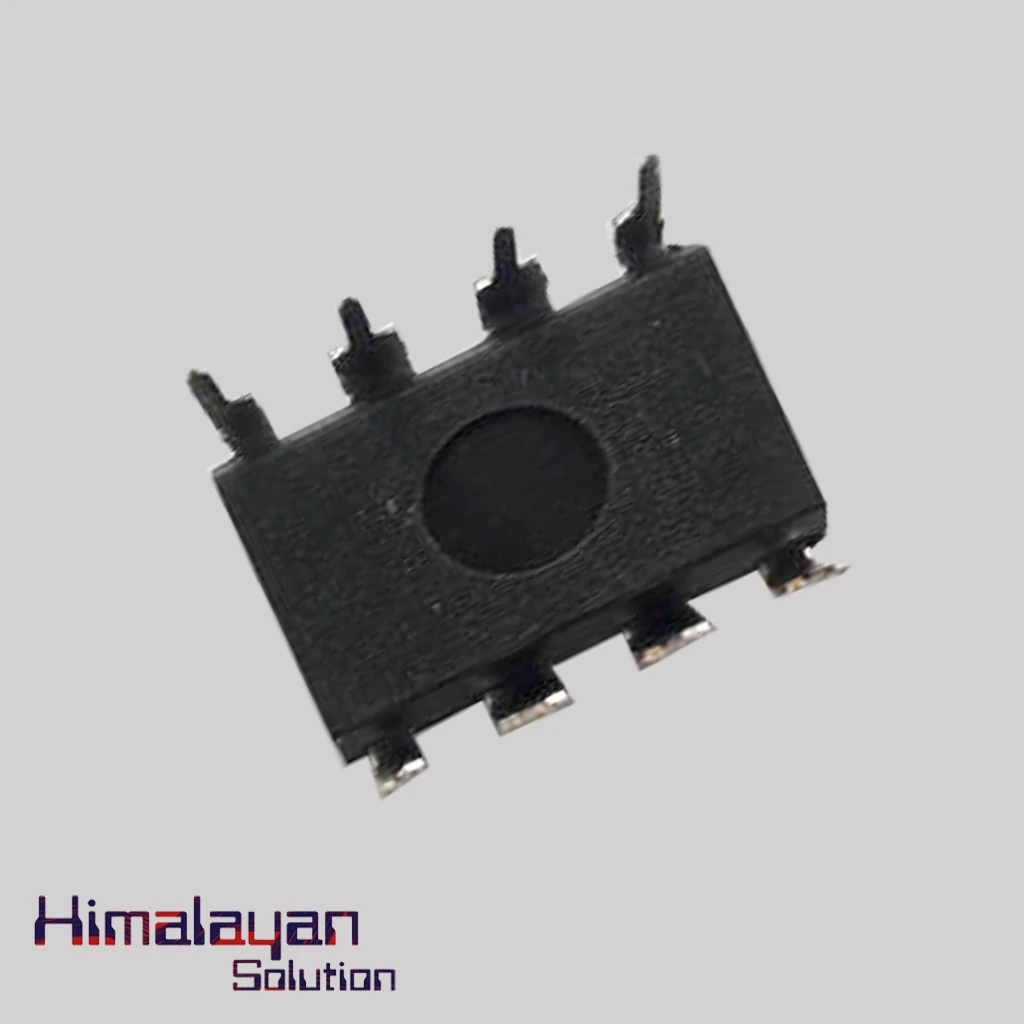

SN75157P IC
The Sn75157p IC is a dual differential line receiver designed to meet or exceed the requirements of ANSI Standards EIA/TIA-422-B and -423-B and ITU
V.10 and V.11. It utilizes high speed Schottky circuitry. It has TTL as compatible outputs where the inputs are compatible with either a single ended or a differential line system. It operates from a single 5V power supply.
Availability: In Stock
Name | Sn75157p IC |
Operating Power Supply | 5V |
Pin | 8 |
Operating Temperature | 0°C To 70°C |
Compatible Outputs | TTL |
Duplex | N/A |
Isolated | No |
Signaling Rate (Max) (Mbps) | 4 |
Number Of Nodes | 32 |
Fault Protection (V) | -10 to 15 |
Fail Safe | None |
Package Group | PDIP ,SO , SOIC |
Pin/Package | 8 PDIP , 8 SO , 8 SOIC |
