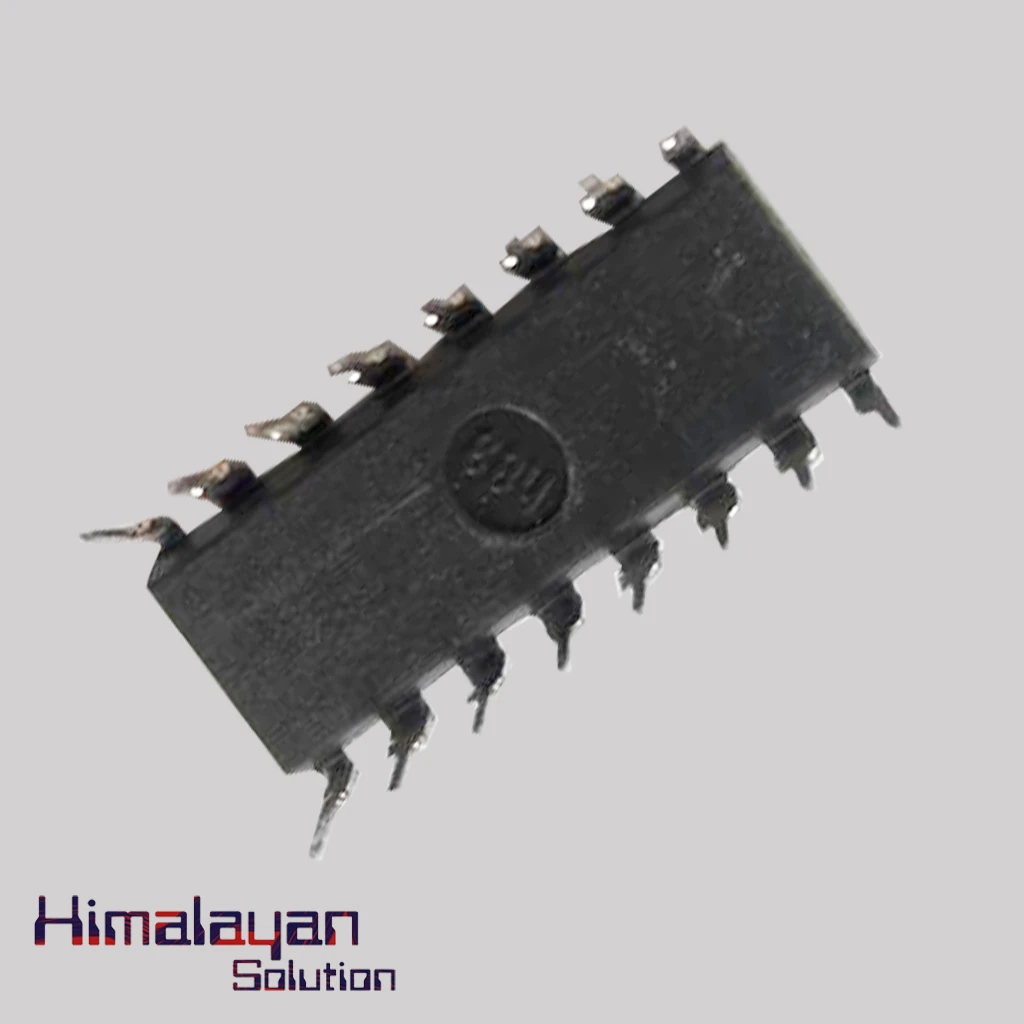

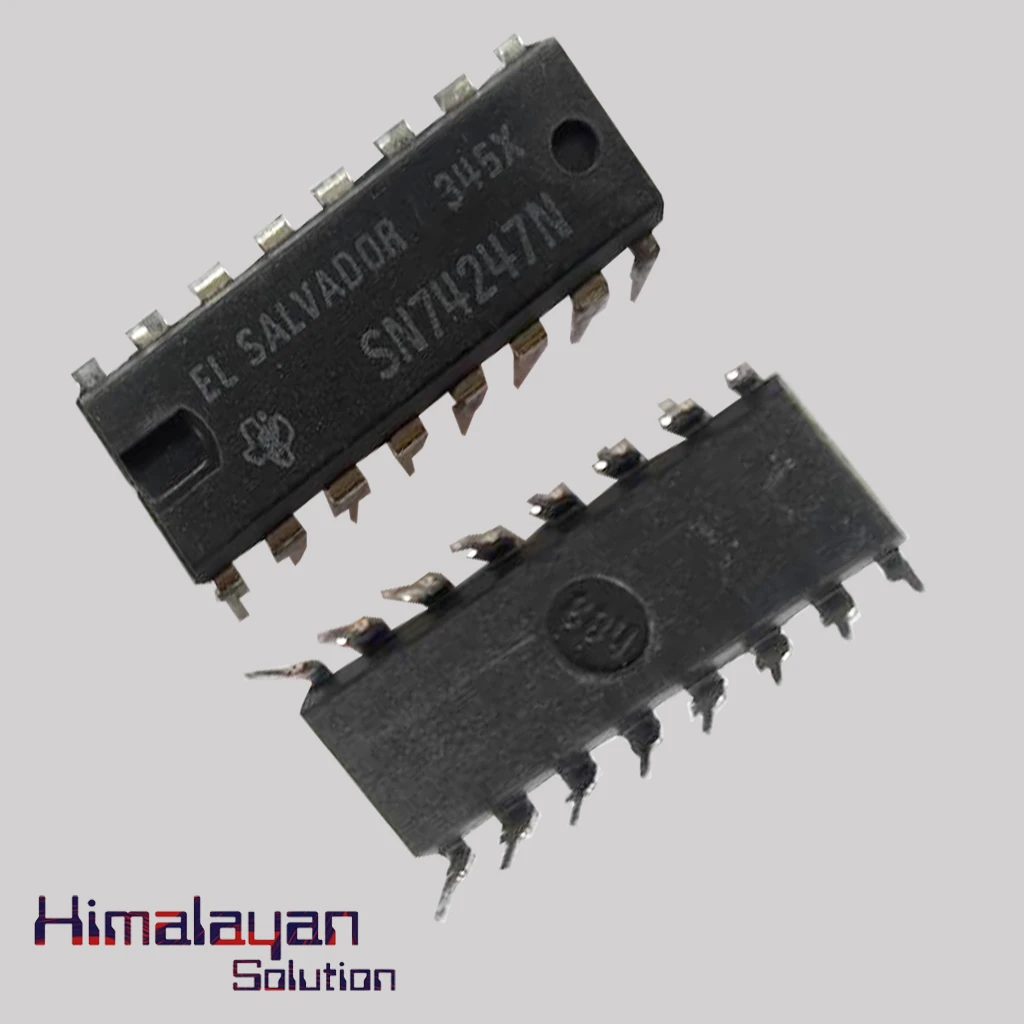

SN74247N IC
The Sn 74247n IC is a Low Power Schottky BCD TO 7-Segmnet decoder/Driver. It consists of NAND gates, input buffers and seven AND-OR-INVERT gates. It offers active LOW, high sink current outputs for driving indicators directly. It also accepts 4-bit binary-coded-decimal (BCD) and, depending on the state of the auxiliary inputs, decodes this data to drive a 7-segment display
indicator. It can be applicable for various electrical and DIY projects.
Availability: In Stock
| Name | Sn 74247n IC |
| Active Level | Low |
| Output Configuration | Open Collector |
| Sink Current | 40 mA |
| Max Voltage | 15V |
| Power Dissipation | 320 mW |
| Package | J.N |
| Operating Temperature | 0°C To 70°C |
| Supply Voltage Range | 4.75 To 5.25 V |
| Off-State OutputVoltage | 16 V |
| On-State Output Current | 40 mA |
| High Level Output Current | -200 uA |
| Low-Level output Current | 8 MA |
