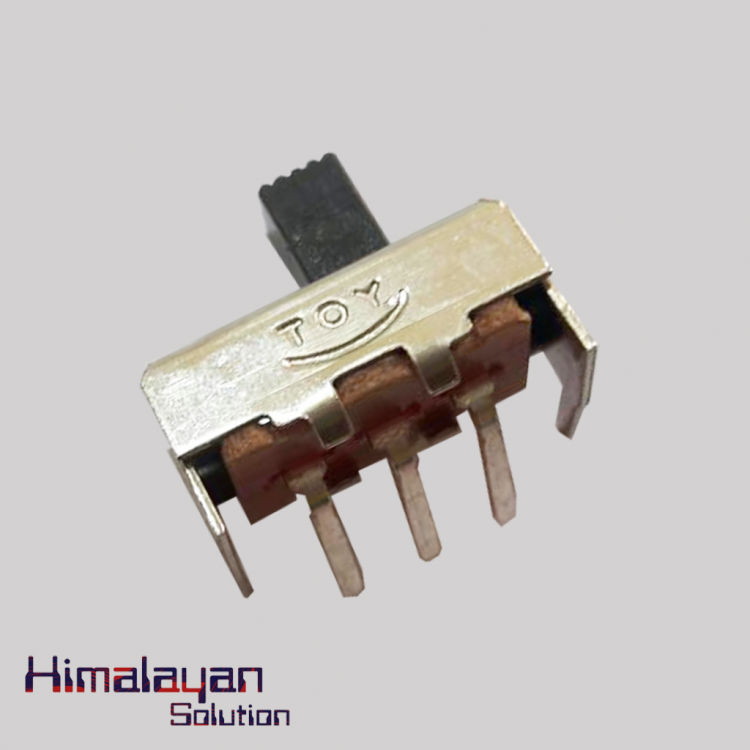

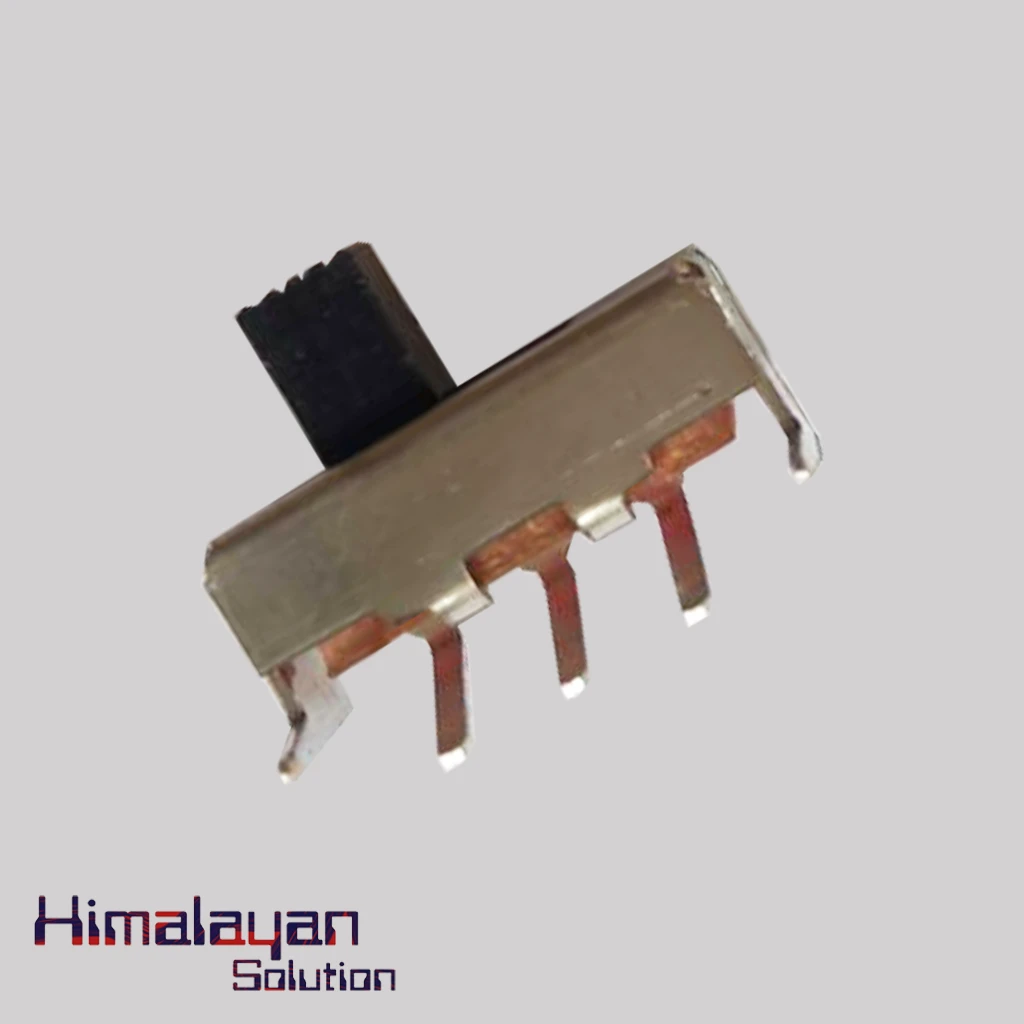

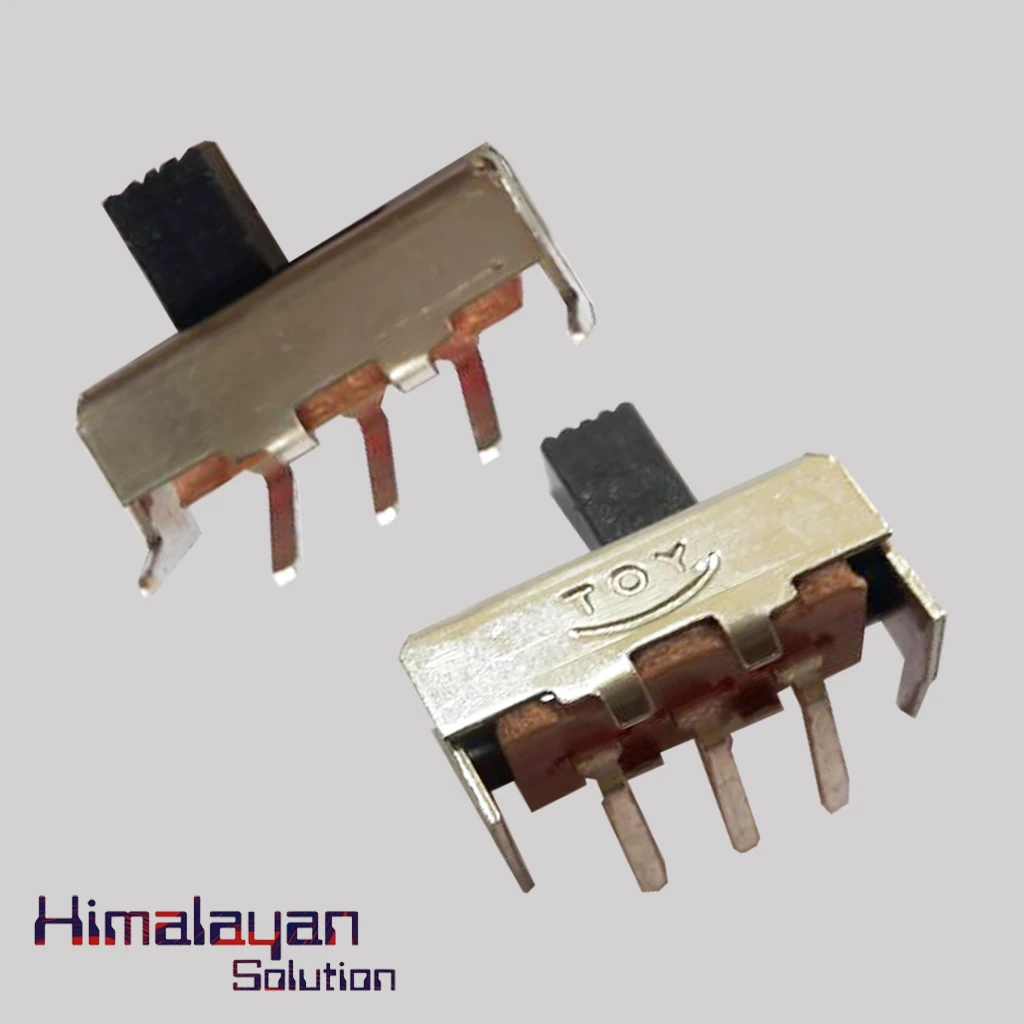

Slide Switch big
The Slide Switch is a switch that has various features like: - easy structure, mini body, 3 terminal, 1 pole 2 throw and sliding knob actuator. It can suitable in various operations of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights and many more. It is also a great component for DIY.
Availability: In Stock
| Name | Slide Switch |
| Pins Design | 3 Pins ( Single Rows ) |
| Position | 2 |
| Contact Type | 1P2T |
| Current Rating | DC 50V, 0.5A |
| Contacts Resistance | 30MΩ |
| Insulation Resistance | 100MΩ |
| Minimum Load | DC 500V |
| Dielectric Strengths | AC 500V / 1 Minute |
| Life Test | 10000 Cycles/ Minute |
| Knob Size | 3 x 3 x 5mm |
| Pitch | 3mm / |
| Main Body Size | 12 x 5 x 5.7mm |
| Overall Size | 12 x 13.8 x 9mm |
| Material | Plastic And Metal |
| Operating Temperature | -40°C To 80°C |
| Weight | 4g |
