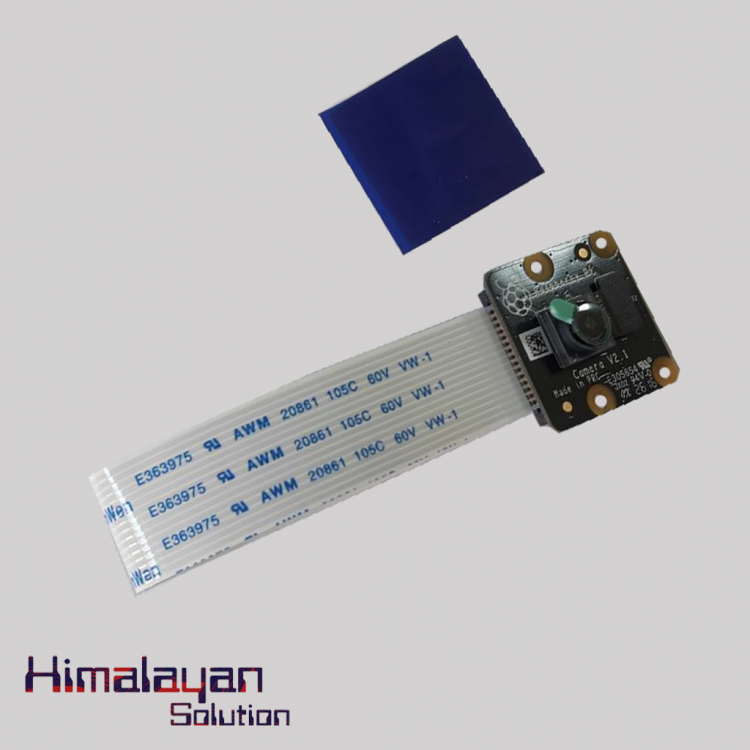

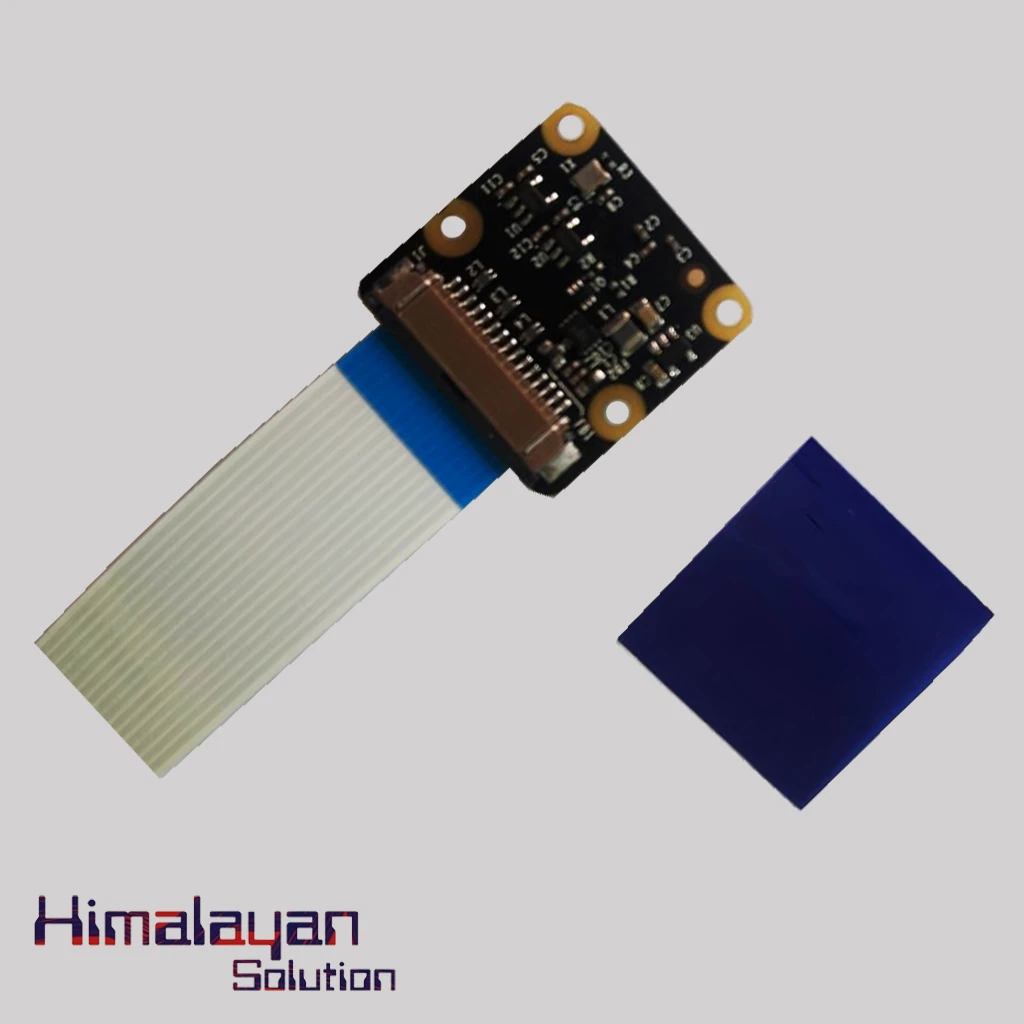

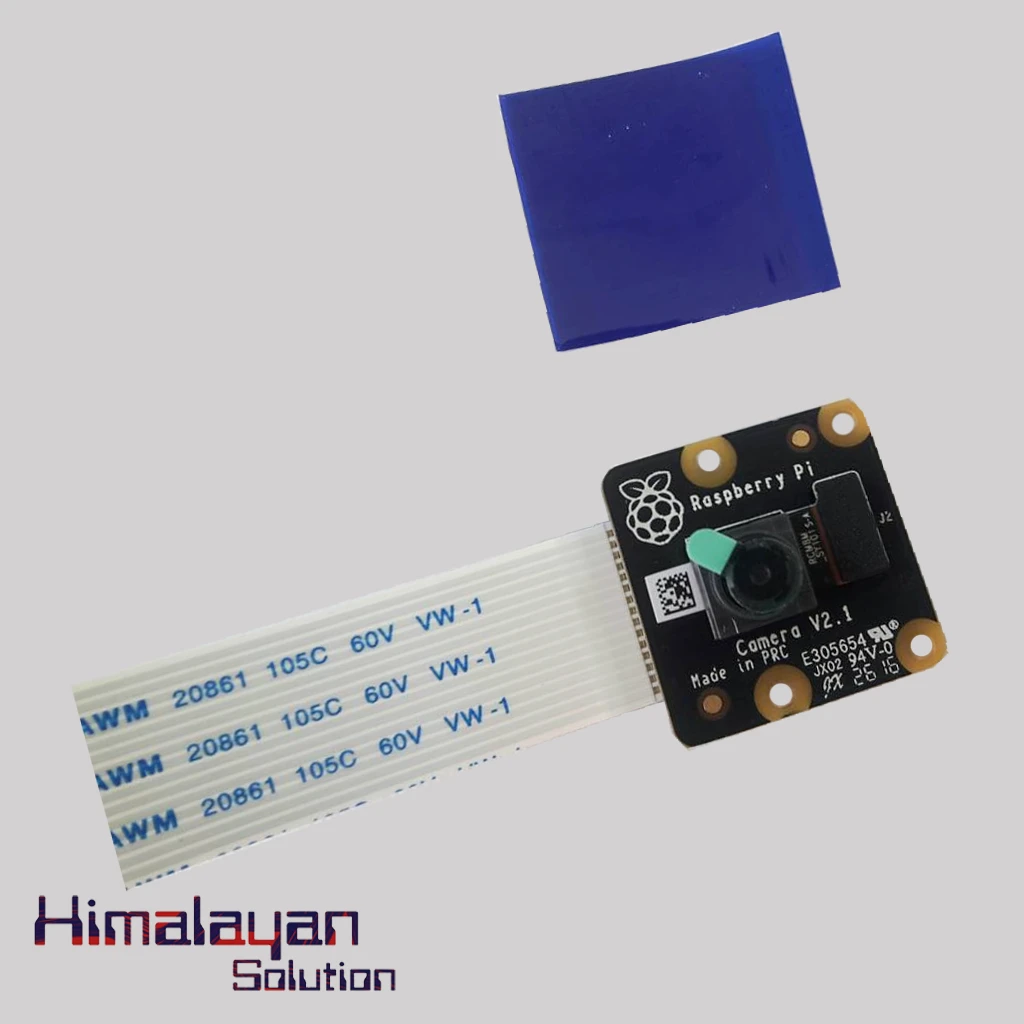

Raspberry Pi Noir Camera Module
The 8MP Raspberry Pi NoIR Camera Module V2 is an official product from Raspberry Pi foundation. It has 8 megapixel cameras which is capable of taking high quality photographs of 3280 x 2464 pixels. It captures video at 1080p30, 720p60 and 640x480p90 resolutions. Sony IMX219 image sensor is added on board for Raspberry Pi for featuring a fixed focus lens. This camera module is suitable in various applications like: - Infrared photography, low light photography, monitoring plant growth, CCTV security camera and many more.
Availability: Out Of Stock
| Camera Resolution | 8 Megapixels |
| Video Modes | 1080p30, 720p60 and 640 × 480p60/90 |
| Linux Integration | V4L2 Driver Available |
| Image Sensor | Sony IMX219 |
| Sensor Resolution | 3280 × 2464 Pixels |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| Sensor Image Area | 3.68 x 2.76 mm (4.6 mm Diagonal) |
| Focal length | 3.04 mm |
| Horizontal Field Of View | 62.2 Degrees |
| Vertical Field Of View | 48.8 Degrees |
| Focal Ratio (F-Stop) | 2 |
| Picture Formats | JPEG (accelerated), JPEG + RAW, GIF, BMP, PNG, YUV420, RGB888 |
| Video Formats | Raw h.264 (Accelerated) |
| Weight | 3g |
