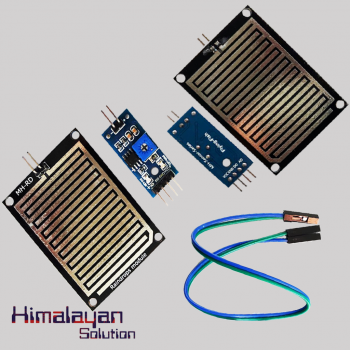

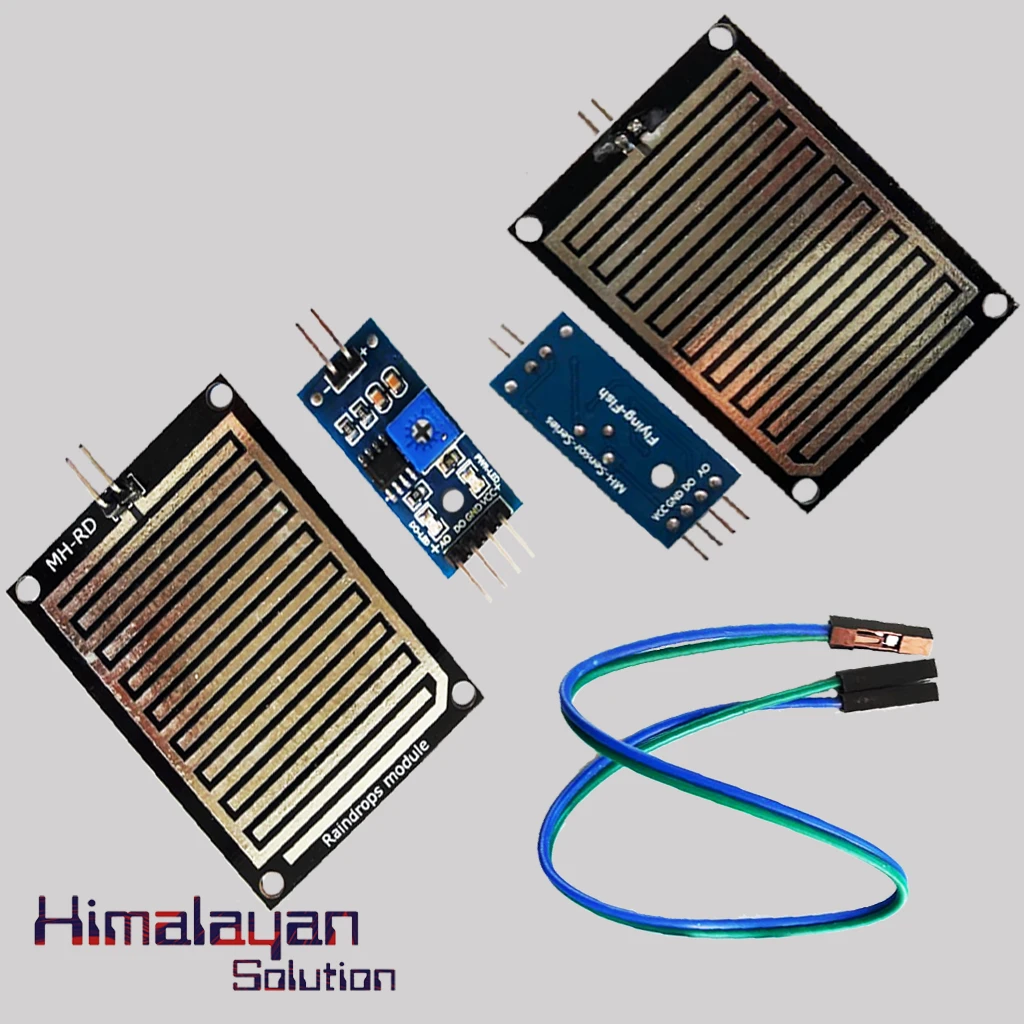

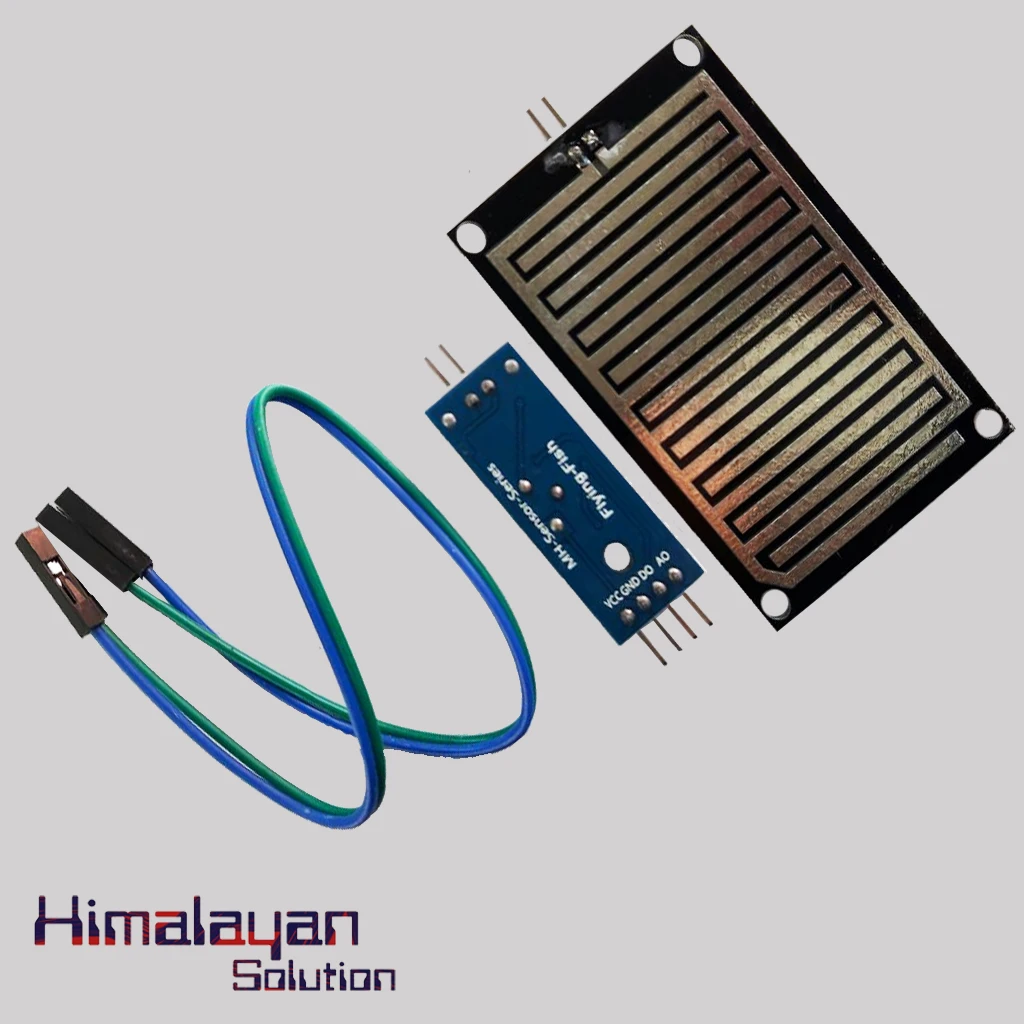

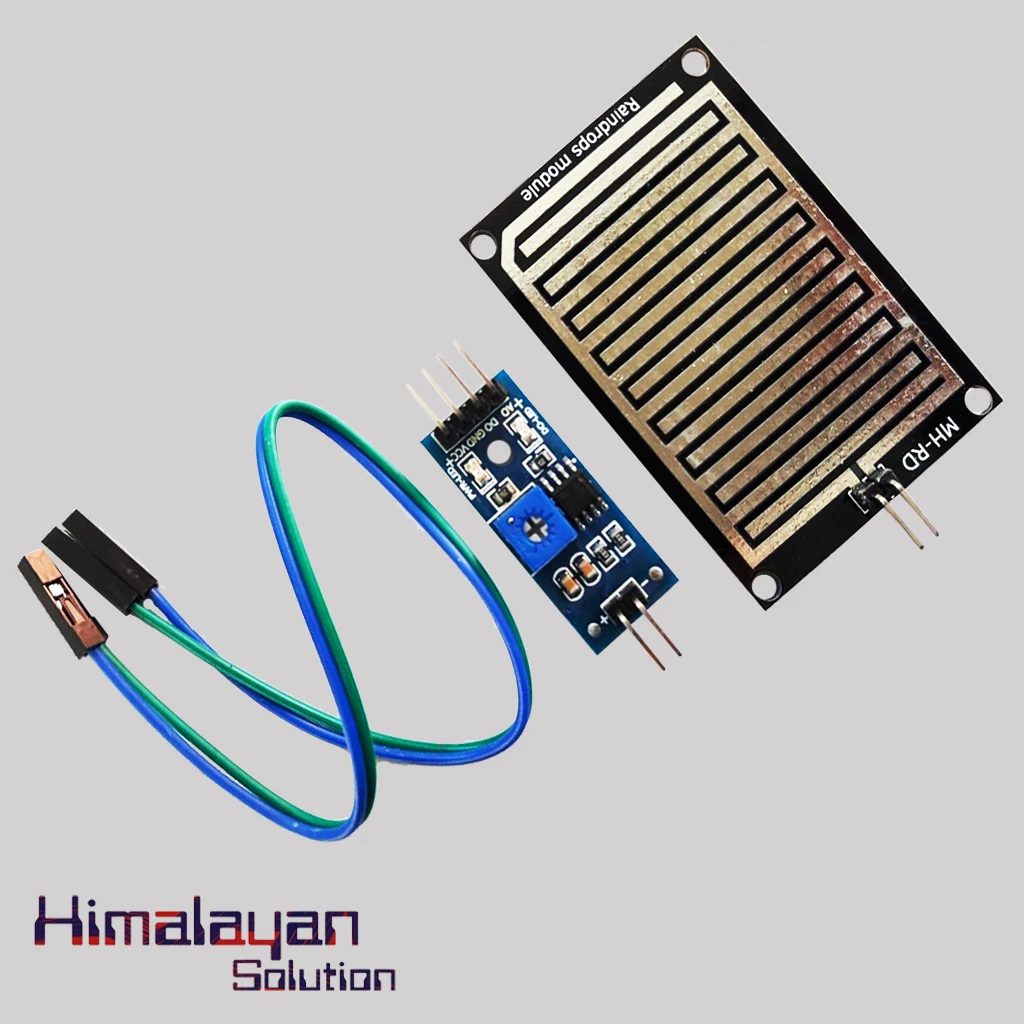

Rain Drop Sensor Module
Rain Sensor Module consist of rain sensor and LM393 Chip based module. It is used mostly for measuring rainfall intensity. It has potentiometer for adjustable sensitivity and on board power led. The sensor is anti-oxidation, anti-conductivity and has with use time. The sensor has high quality of RF-04 double sided material with nickel plate on side.
Availability: In Stock
| Chip | LM393 |
| Working Voltage | 3.3-5V |
| Outputs | Analog and Digital |
| Sensor Board Size | 5.4 cm x 4 cm |
| Material Used | RF-04 |
| VCC | 3-5V |
| GND | Negative Electrode |
| DO | TTL Swith Signal Output |
| AO | Analog Signal Output |
| Driving Capacity Of | Around 100mA |
