MT 8870 IC

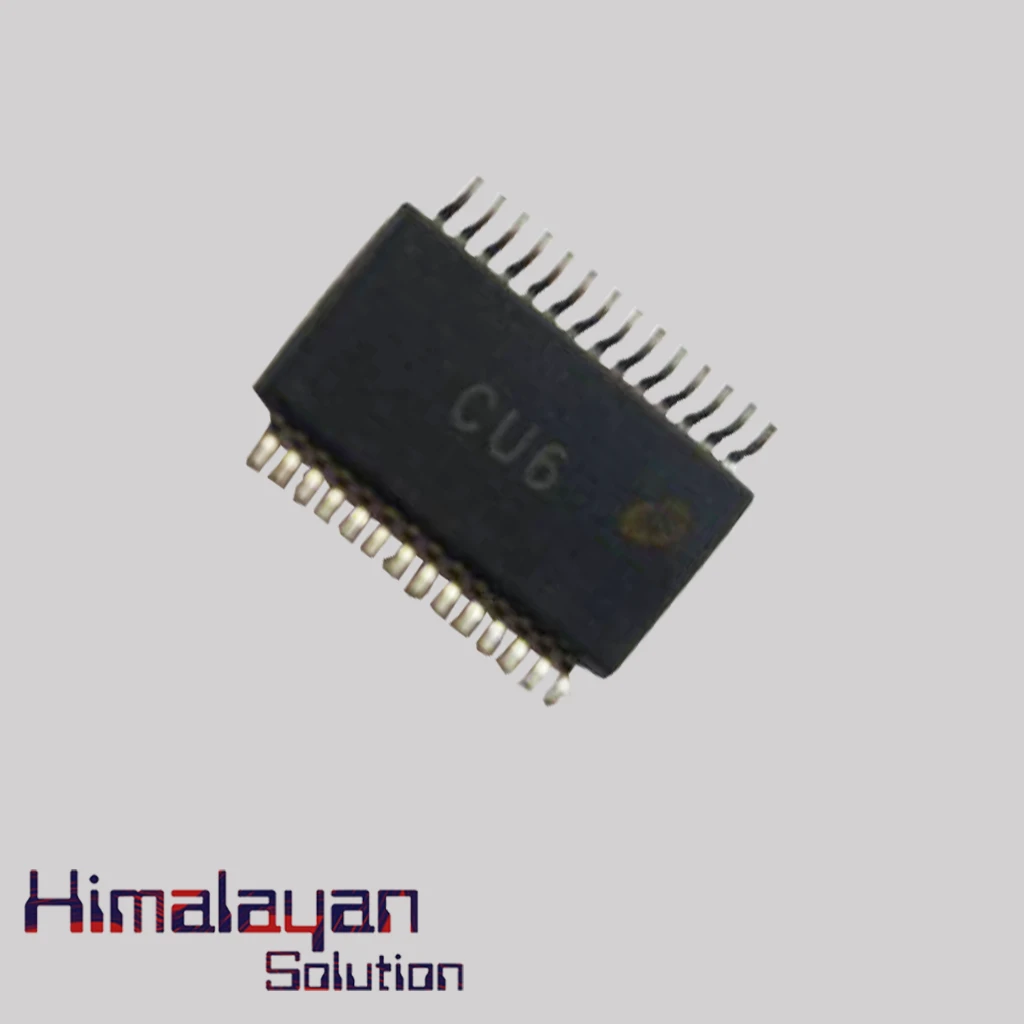

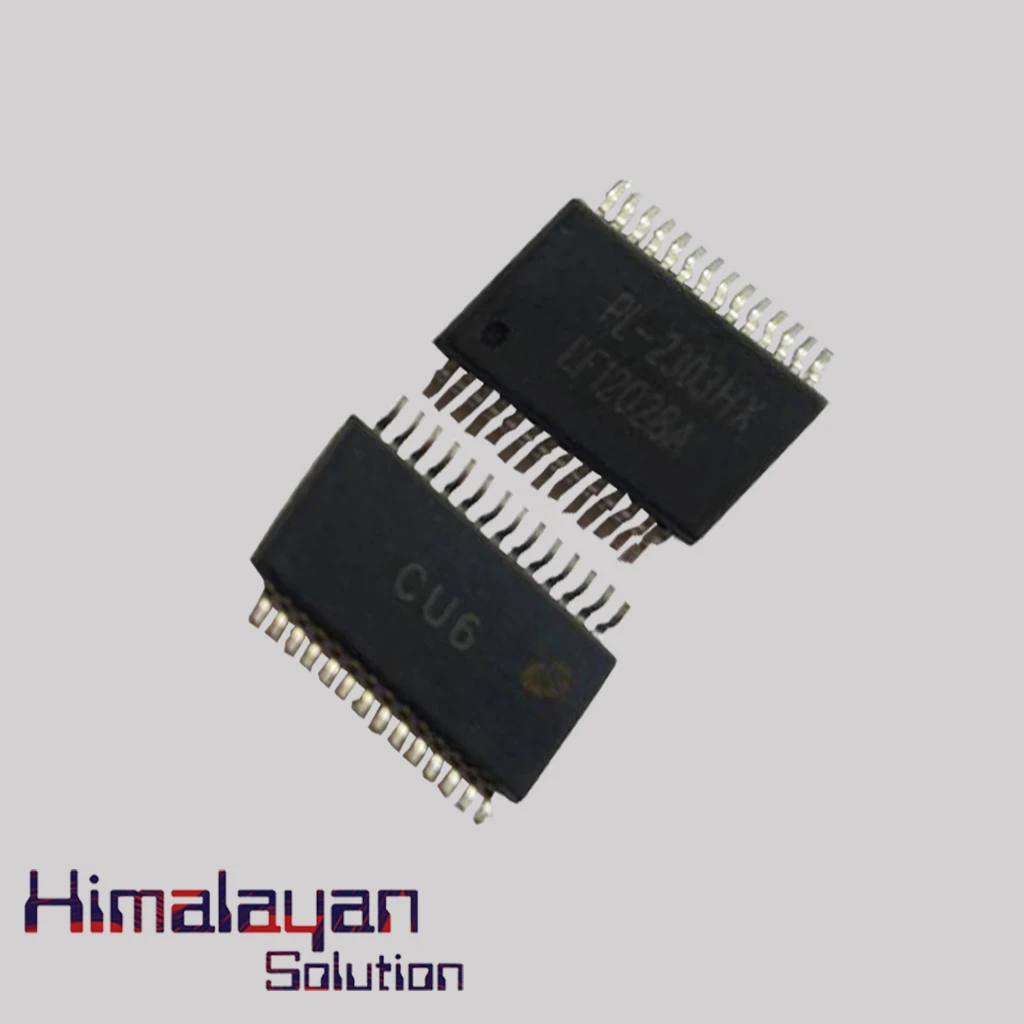

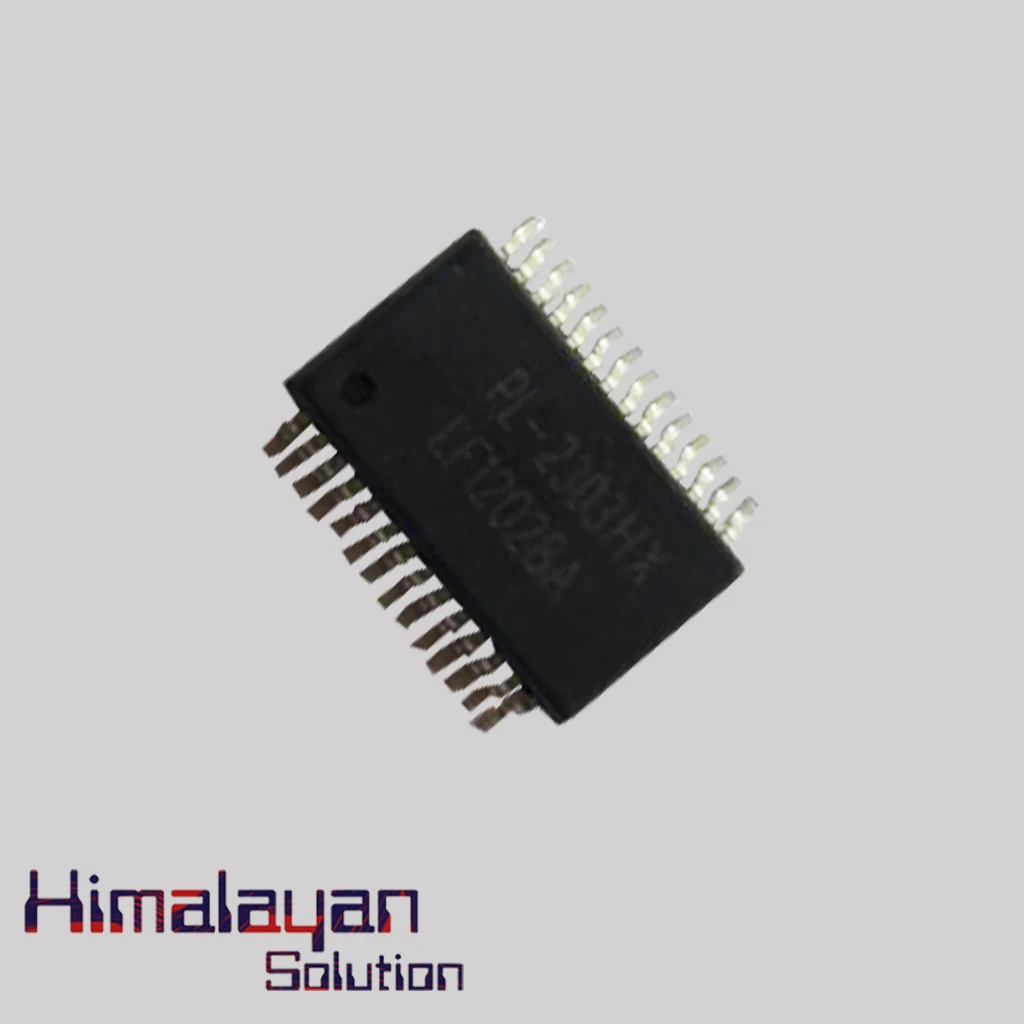

PL 2303HX IC

The PL-2303HX IC is a low cost and high performance USB to Serial Bridge Controller IC chip. It operates as a bridge between one USB port and one standard RS232 serial port. It has various features like: - Easily Supports with RS232 serial interface and also handshake mode, Supports remote wake-up and power management, 256-Bytes buffer each for upstream and downstream data flow, On-chip USB transceiver, On-chip crystal oscillator running at 12MHz, Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE .NET, Linux, and Mac OS, Designed for Windows XP/2000 certified logo drivers and many more. It can be suitable for various applications like: - Making a controller based project USB compatible, Connection of modems to microcontrollers to PC via a USB connection, DIY projects for connecting to a COM port of a computer, Connection between various other components such as GSM module etc.

In Category:
  • Basic Electronics Components
  • Semiconductor
  • ICS
  • Availability: In Stock

    Name PL 2303HX IC
    Power Supply Voltage Range -0.3 V to 6.0 V
    Input Voltage Range -0.3 V to VDD+0.3 V
    Output Voltage Range -0.3 V to VDD+0.3 V
    Storage Temperature Range -55°C to 150°C
    Operating Temperature Range -40°C to 85°C
    Frequency of Operation ( Crystal Oscillator) 12 MHz
    Package Type 28-Pin SSOP
