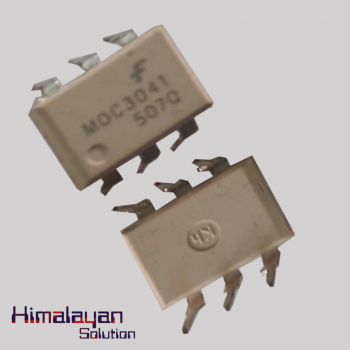

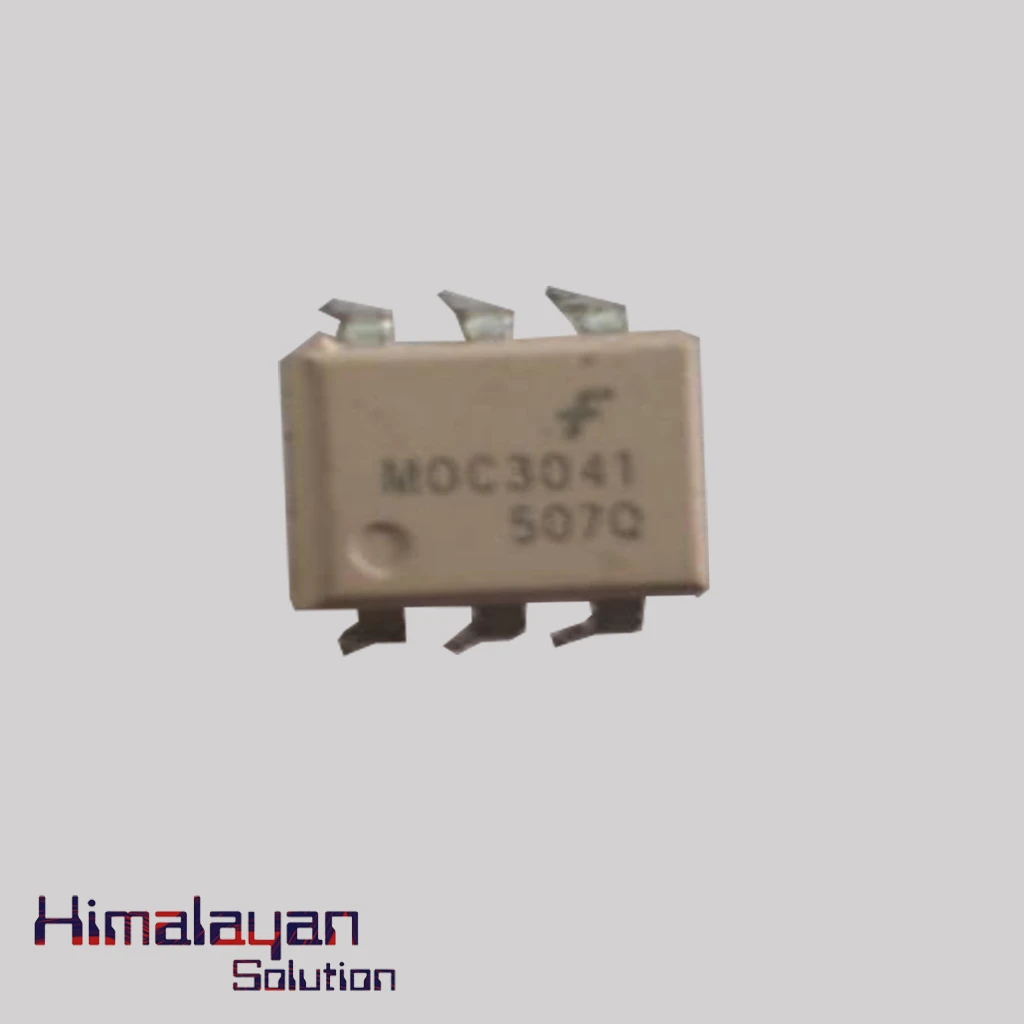

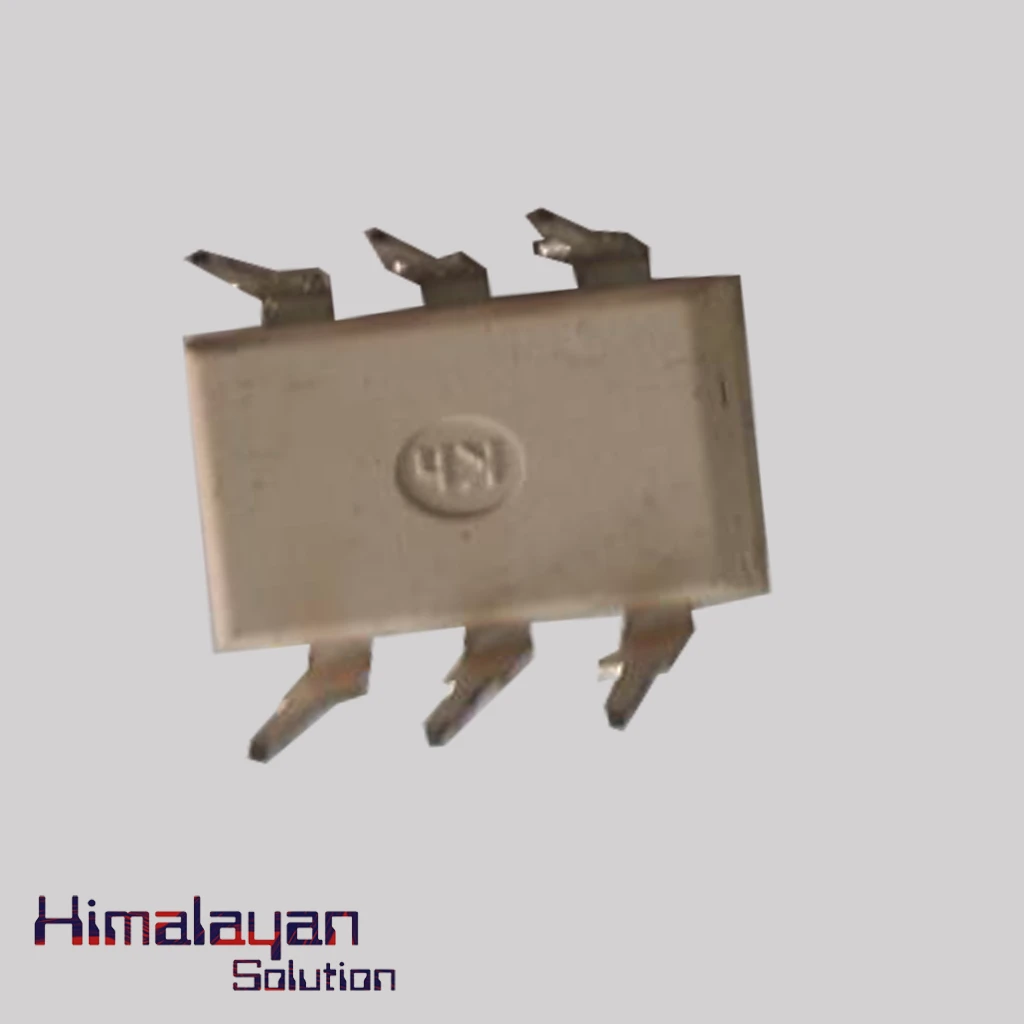

Moc 3041 IC

The MOC3041 IC is an electrical device that performs the function of a zero voltage crossing bilateral triac driver. It is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines. It can be applicable in various fields such as : - Consumer appliances, Industrial motor and many more.

In Category:
  • Basic Electronics Components
  • ICS
  • Availability: In Stock

    Name MOC3041 IC
    Number Of Channels 1 Channel
    Isolation Voltage 5250 Vrms
    Forward Current 60 mA
    Forward Voltage 1.25 V
    Power Dissipation 250 mW
    Off-state Output Voltage VDRM 400 V
    Operating Temperature Range - 40 C to + 85 Degree Celsius
    Series MOC3041M
    Height 3.53 mm
    Length 8.89 mm
    Width 6.6 mm
    Mounting Style Through Hole
    Maximum Trigger Current 15 mA
    Zero Crossing Voltage 20 V
