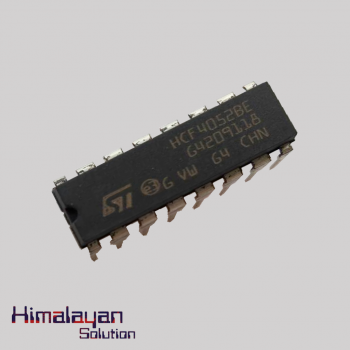

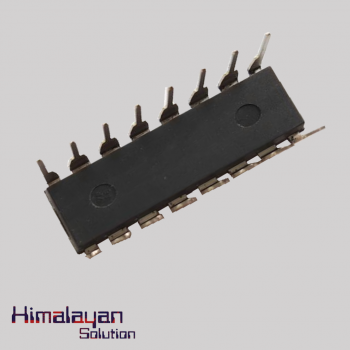

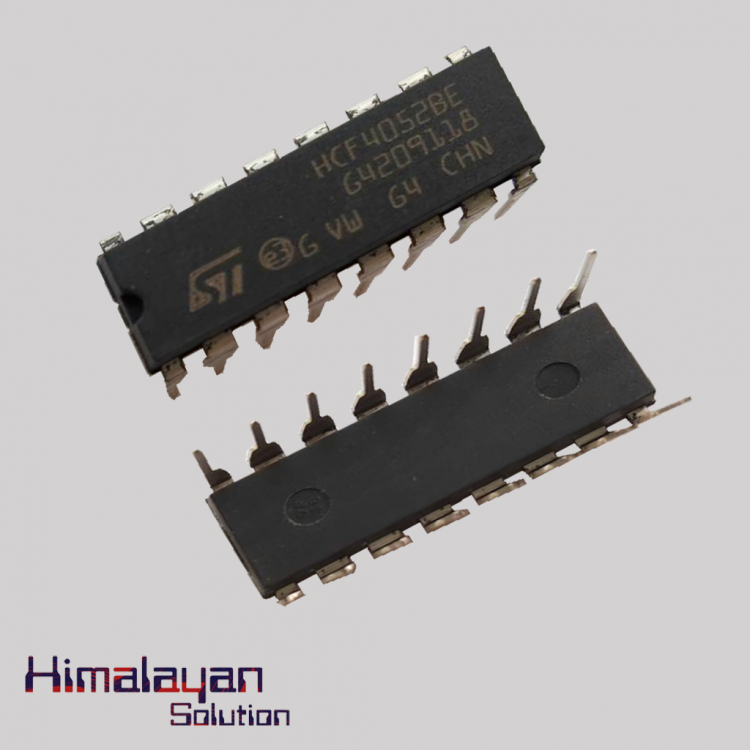

HCF4052BE IC
The HCF4052B is a monolithic integrated circuit fabricated in metal oxide semiconductor technology. The HCF4052B is a differential 4-channel analog multiplexer/demultiplexer. It is a digitally controlled analog switch having low ON impedance and very low OFF leakage current.
Availability: Out Of Stock
| Product Name | HCF4052 BE IC |
| Supply Voltage Range | 3V to 15V |
| Operating Temperature Range | -40 to +85 Degree Celsius |
| Low "ON" Resistance | 125Ω |
| Load Capacitance (CL) | 50.0 pF |
| Number Of Functions | 6 |
| Number Of Inputs | 2 |
| Number Of Terminals | 16 |
| Technology | CMOS |
| Terminal Form | THROUGH-HOLE |
| Packages | DIP and SOP |
