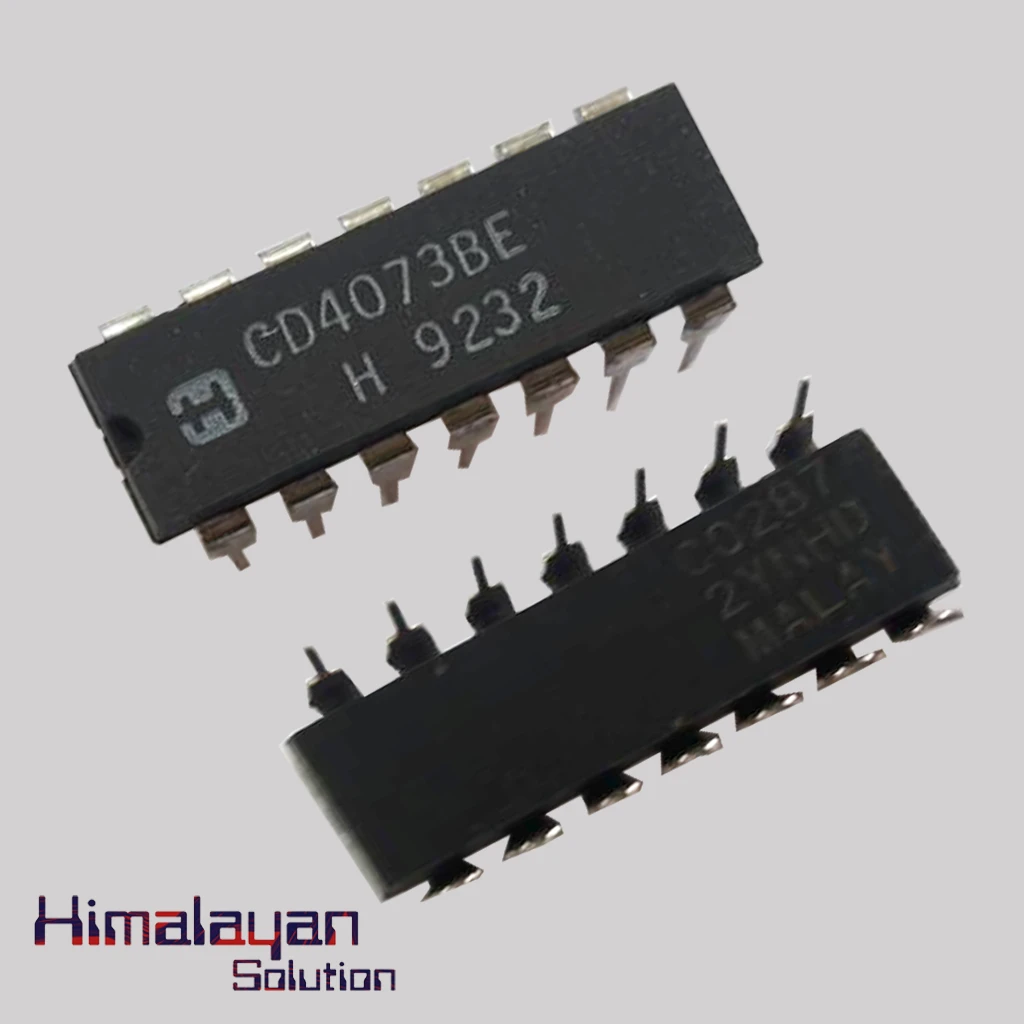

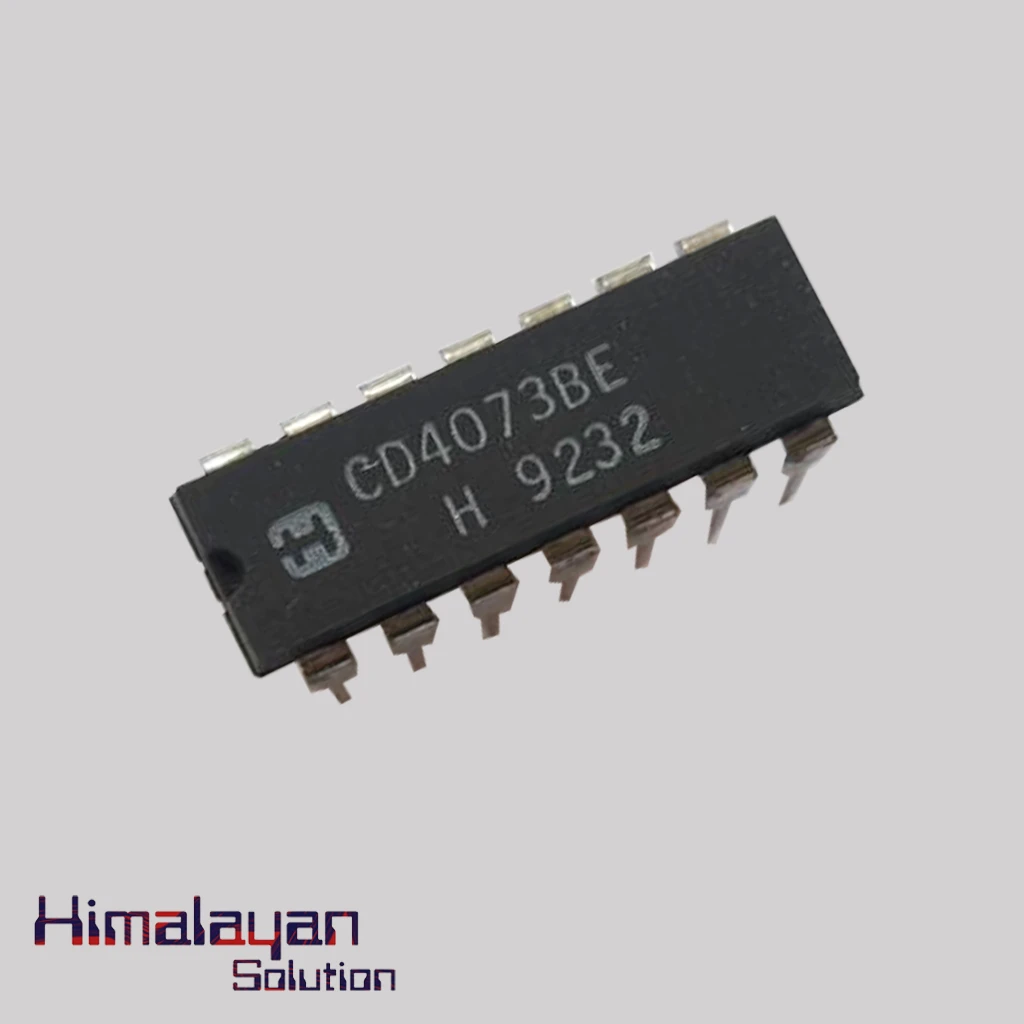

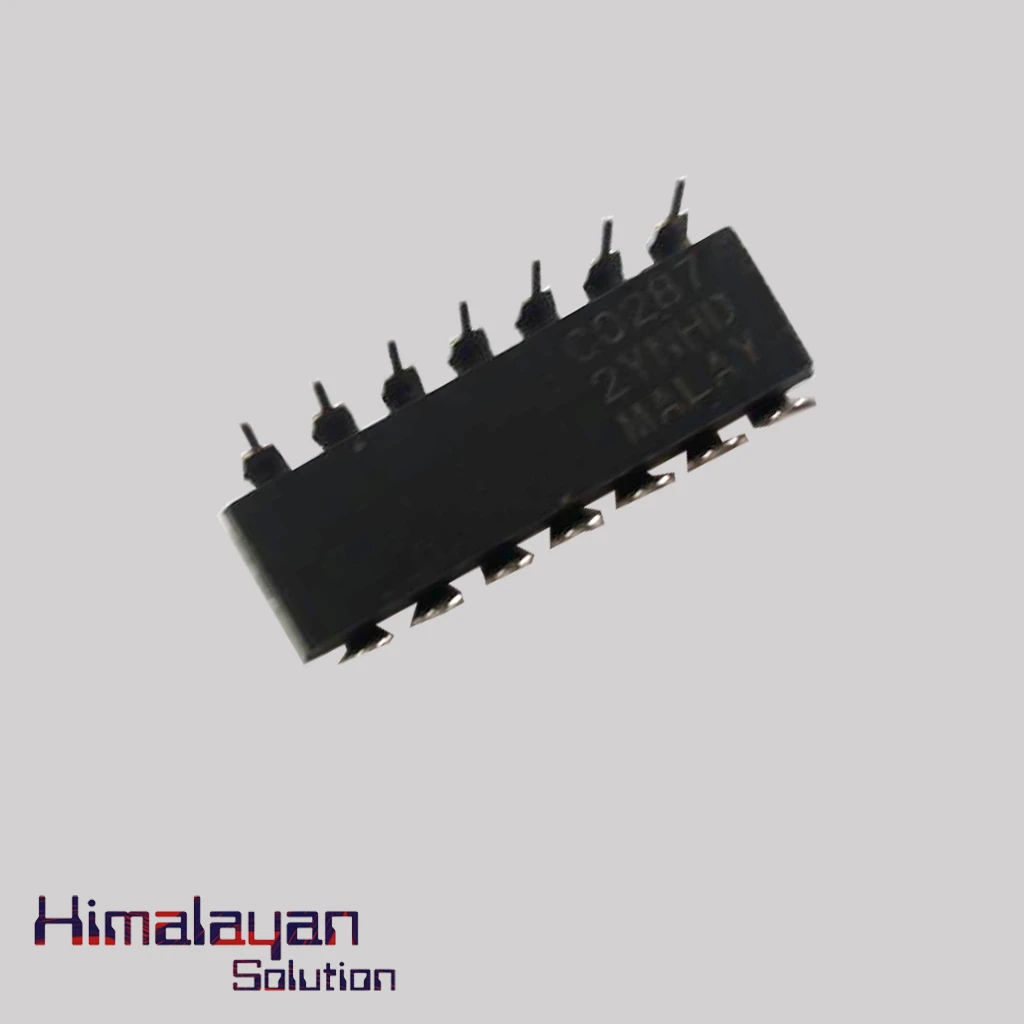

CD4073BE IC

The CD4073BE IC is an CMOS Triple Input AND Gate Function. It provides direct implementation of AND functions to the system designer. It also supplements the existing family of CMOS gates. It has various kinds of features like: - Medium speed operation, Noise margin, standardized symmetrical output characteristics, Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices" and many more. It can be suitable in various kinds of electrical applications as well as DIY projects.

In Category:
  • Basic Electronics Components
  • ICS
  • Availability: In Stock

    Name CD4073BE IC
    Quiescent Current 20 nA
    Logic Type 3-Input AND
    Number Of Bits 3 bit
    Operating Supply Current 25 uA
    Operating Supply Voltage 10 V
    Mounting Style Through Hole
    Package / Case PDIP-14
    Function Triple 3-Input
    Height 4.57 mm
    Input Type CMOS
    Length 19.3 mm
    Operating Temperature Range - 55 °C to + 125 °C
