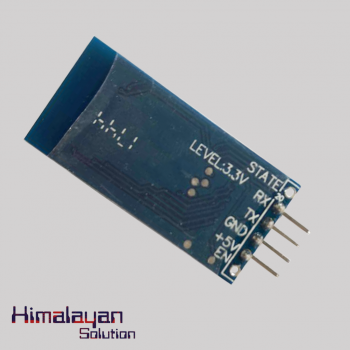

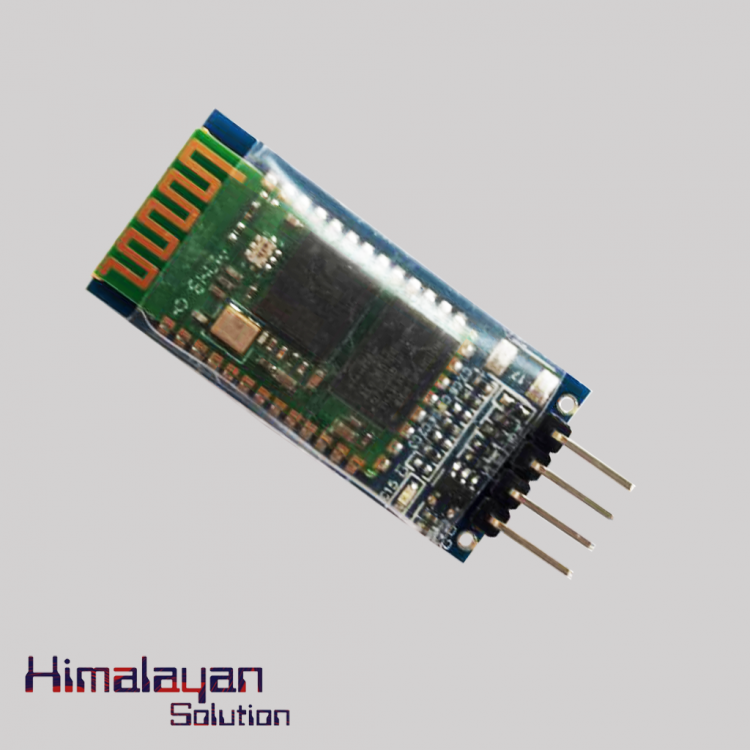

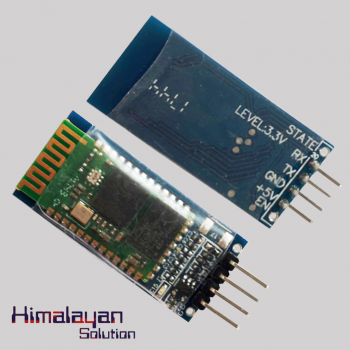

Bluetooth Module (HC-06)

The CSR bluecore 04-External single  Bluetooth module designed as Bluetooth SPP module for transparent wireless serial connection setup. This module has integrated antenna with edge connector. It connects to the last device on power as default. It supports android mobile Bluetooth. It can be used as slave device only .

In Category:
  • Wireless and IOT
  • Bluetooth
  • Availability: In Stock

    Name Bluetooth Module (HC-06)
    Bluetooth Protocol Bluetooth 2.0+ EDR Standard
    USB Protocol USB v1.1/2.0
    Operating Frequency 2.4GHz ISM Frequency Band
    Modulation Mode Gauss Frequency Shift Keying
    Transmit Power ≤ 4dBm, Second Stage
    Sensitivity ≤-84dBm at 0.1% Bit Error Rate
    Transmission Speed 2.1Mbps(Max)
    Safety Feature Authentication And Encryption
    Supported configuration Bluetooth Serial Port (Major And minor)
    Supply Voltage +3.3 VDC 50mA
    Operating Temperature -20↑8C to 55℃
    Size 36.5*16mm
    Weight 4g
     Supply Voltage   3.6VDC to 6VDC
    Chip Linvor
