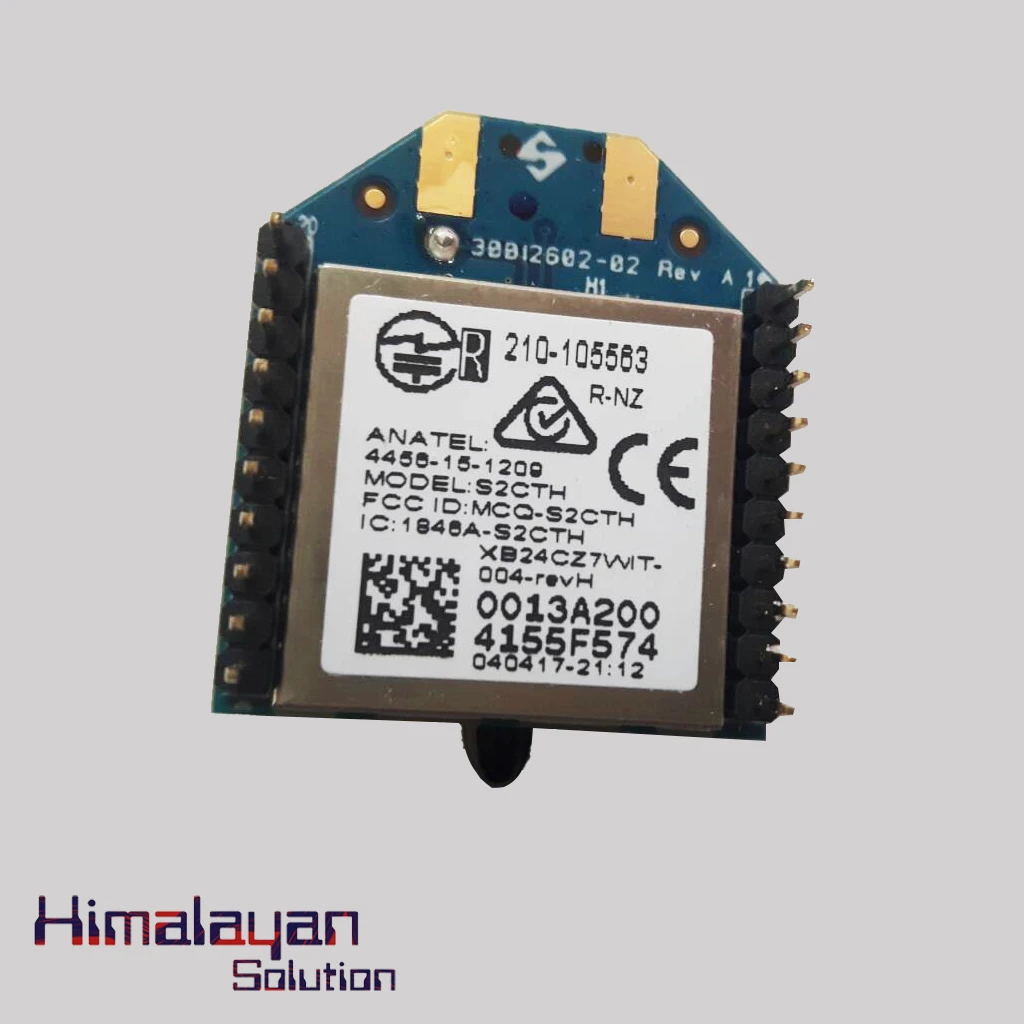

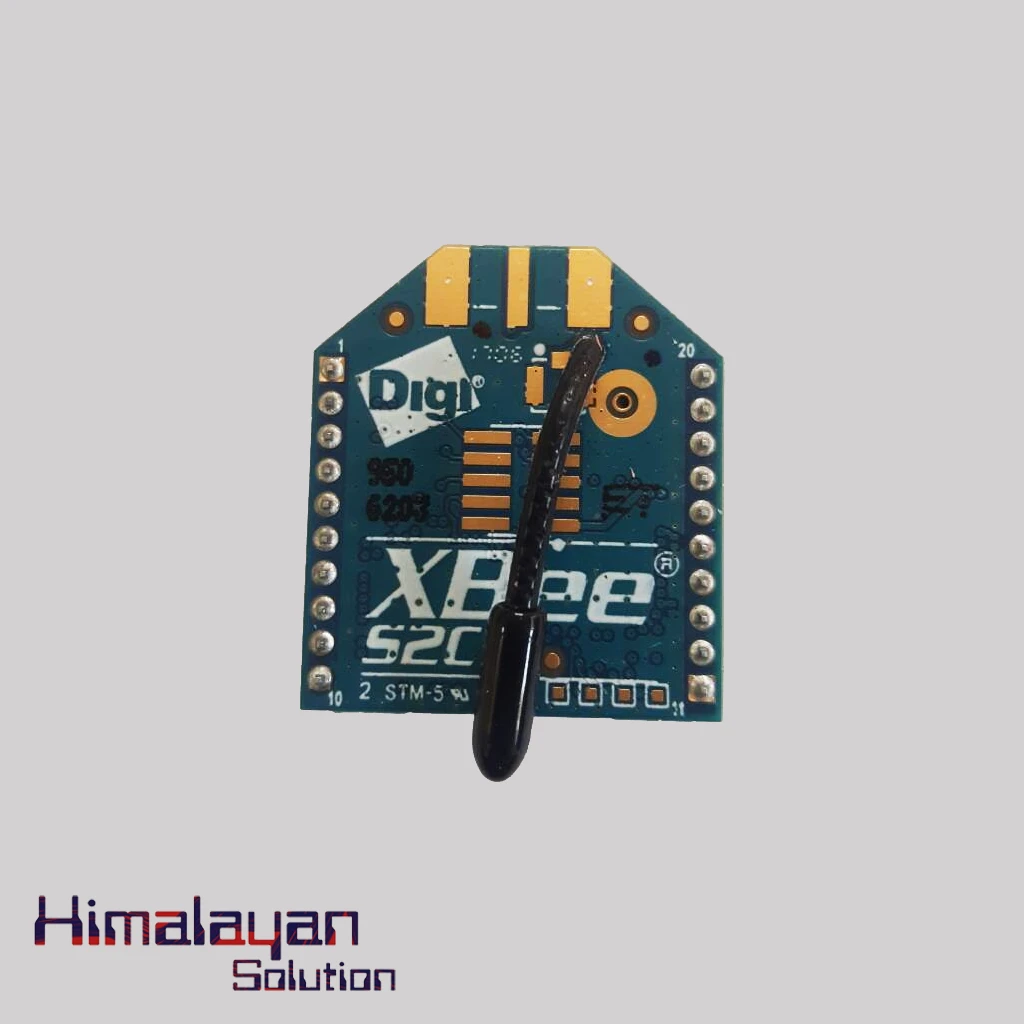

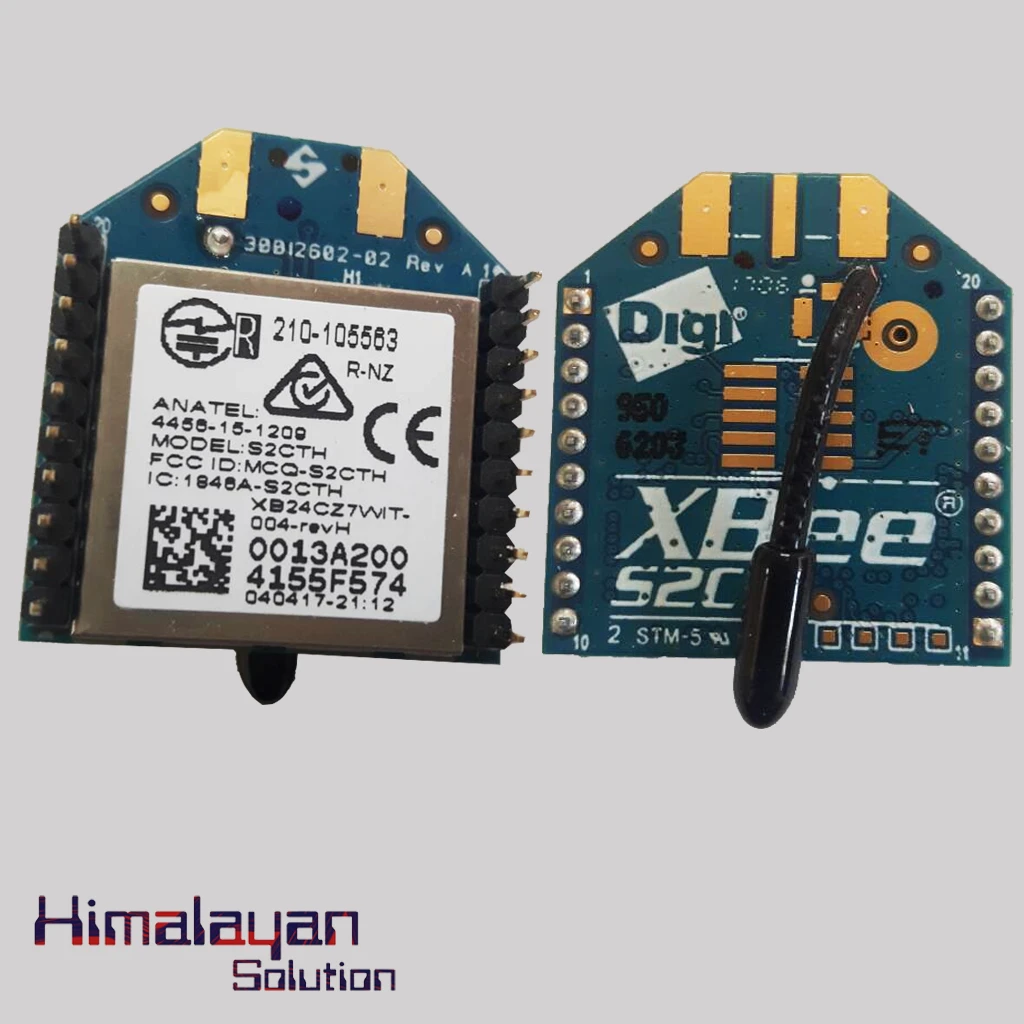

X-Bee S2C

The XBee S2CTH Module with PCB Antenna allows to create complex mesh network on the XBee ZigBee mesh firmware with improve power output and data protocol. This module has reliable and simple communication between computers, system or anything with a serial port. It is compactable with other ZigBee devices. Point to point and multi point network are supported in this module.

In Category:
  • Wireless and IOT
  • XBEE
  • Availability: In Stock

    Series Xbee
    Model S2CTH
    Frequency 2.4GHz
    Transmit 3.3V @ 33mA
    Receive 3.3V @ 28mA(Normal Mode)
    Operating Temperature -40°C ~ 85°C
    Working Voltage 2.7V-3.6V
    Max Data Rate 250kbps
    Input Pins 6 10-bit ADC
    Digital I/O Pins 15
    Encryption 128-bit
    TX Peak Current 40 mA
    RX Current 40 mA (@3.3 V)
    Power-Down Current < 1 μA
    Indoor/Urban Range up to 200 ft (60 m)
    Outdoor Line-of-Sight Range up to 4000 ft (1200 m)
    Transmit Power 2 mW (3 dBm)
    Receiver Sensitivity -96 dBm
    Size 24mm x 28mm x 9mm
    Weight 3.24g
