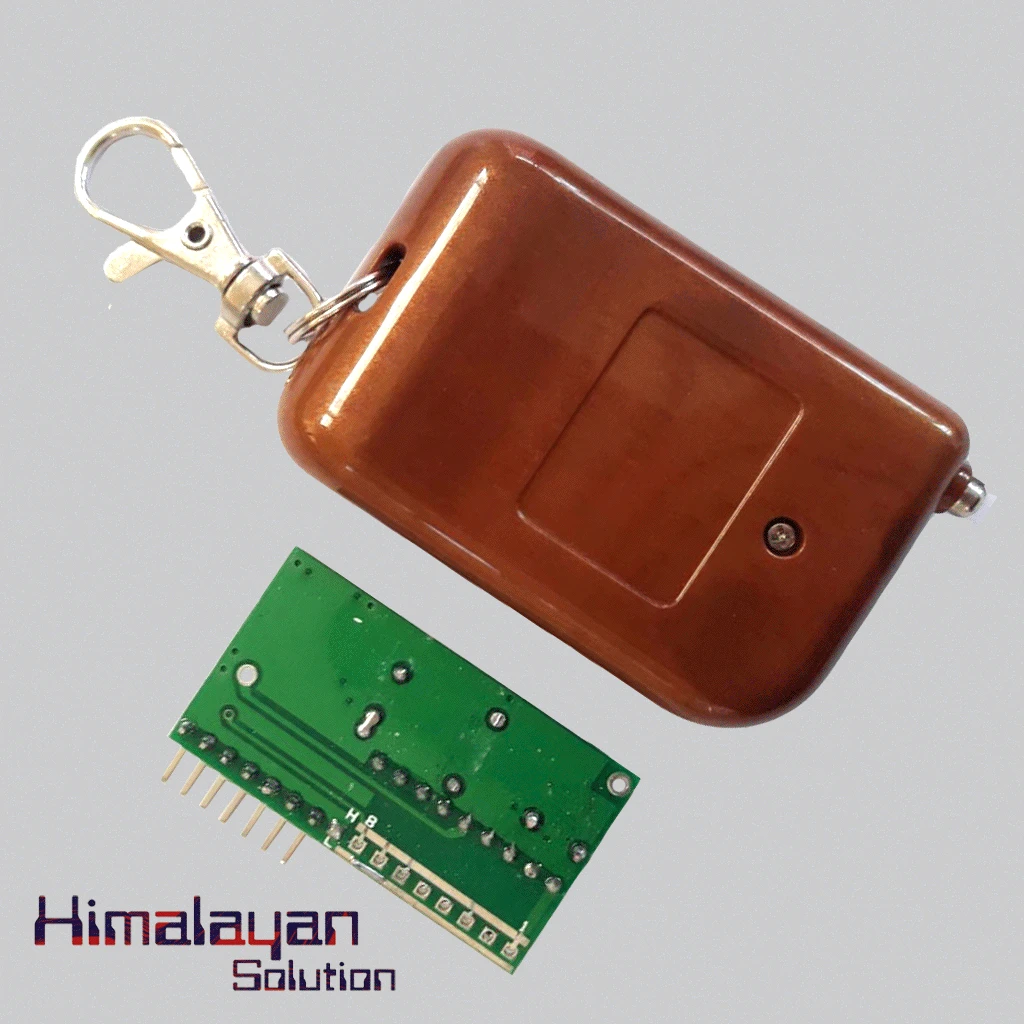

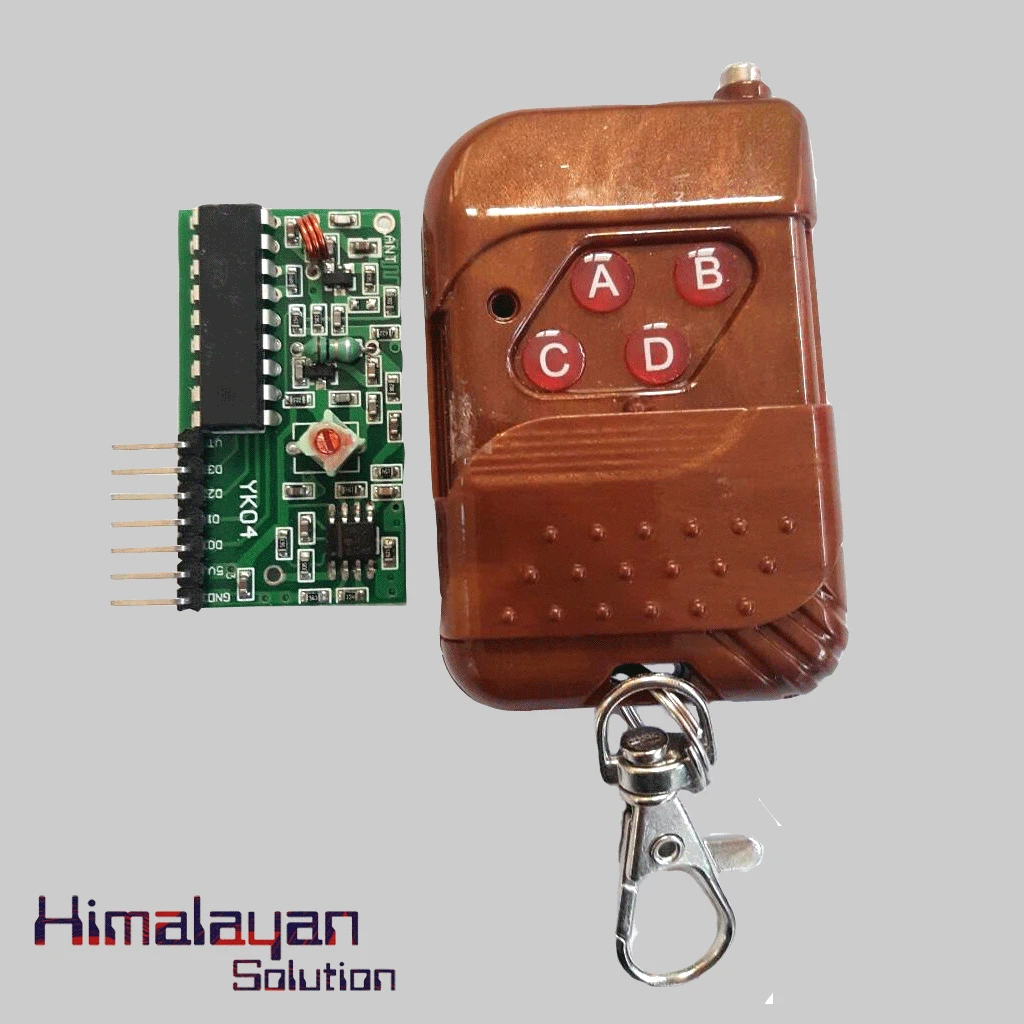

Wireless Remote With Circuit Board

4-Way Wireless Remote Control with Receiver module   can be used for many DIY projects. The  receiving module use LC oscillation circuit .It is easy to use and it take four road decoding output. The remote control has four buttons with corresponding to four data bits to the receiving board output pin.

  • Power: 4.5~7V
  • Quiescent Current (mA): 4.5 mA
  • Modulation: AM (OOK)
  • Operating Temperature: -10°C to +70°C
  • Receiver sensitivity (dBm):-105 DB
  • Transmitting range: upto 100 Meters
  • Transmitting Frequency: 315MHz
  • Operating Mode: Non Locking
  • Channels: 4
  • Dimensions: 4.5 x 2cm
  • Weight: 37g
In Category:
  • Wireless and IOT
  • Wireless Kit
  • Basic Electronics Components
  • Availability: In Stock

    Operating Voltage DC 12V (BATTERY 27 A / 12 V X 1 Battery)
    Current Operating 10mA @ 12V
    Radiated Power 10 mw @ 12 V
    Frequency 315MHz
    Working Voltage 4.5-5.2V
    Working Curren 15mA
    Modulation Mode Amplitude Modulation (OOK)
    Working Temperature  -10C~+70C
    Rx Sensitivity (dBm) -105dBm
    Work Frequency (MHz) 315MHz
    Coding Mode Welding Plate Code (Fixed Code)
    Effective Range 50~100m
    SIze 6 cm x 3.8 cm x 1.2 cm
    Weight 38 g
