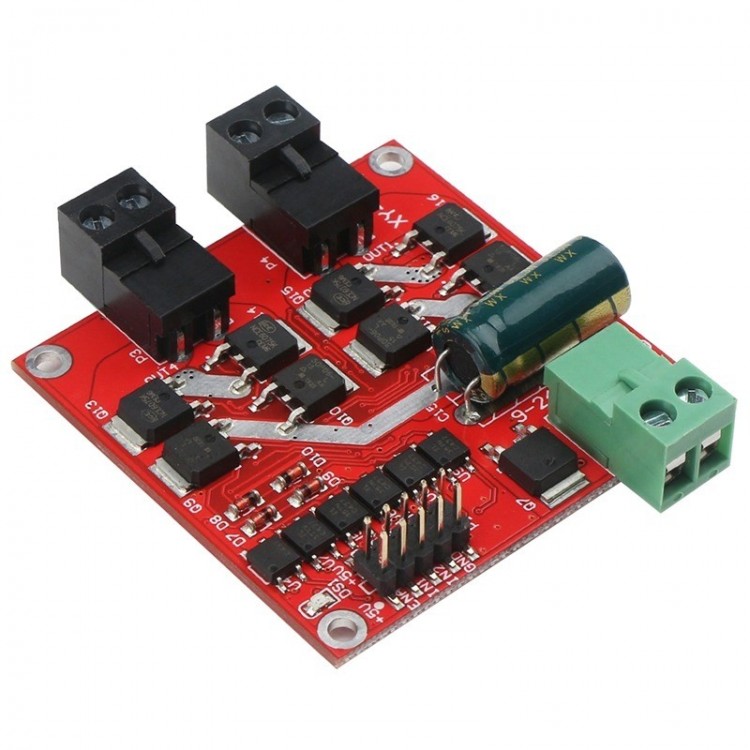

7A Dual DC Motor Driver Module
The 7A Dual DC Motor Driver Module is an Ultra Small Dual Channel H-Bridge Motor Driver Module. It can drive 2 motors independently of up to 7A per Channel or under 160W. This motor driver features a UVLO which refers to Under Voltage Latch-Out.
Availability: In Stock
| Name | 7A Dual DC Motor Driver Module |
| Voltage Supply Range | DC 7 To 24 V |
| Voltage Supply Limit Range | 6.5 To 27 V |
| Control Signal Level | Compatible 3.3 V/5 V |
| High Range | DC 3.0 To 6.5 V |
| Low Range | DC 0 To 0.8 V |
| Output Channel | 2 |
| Control Signal Current Range | 3 To 11 mA (Each Route) |
| Maximum Continuous Operating Current | 7 A |
| Peak Current | 50 A |
| Speed Control | PWM |
| Minimum Valid Pulse Width | 5 us |
| Working Temperature Range | -25°C To 85°C |
| Mounting Hole | M3 |
| Dimensions (Length x Width x Height) | 55 x 55 mm /2.165 x 2.165 inch |
| Weight | About 32 g |
