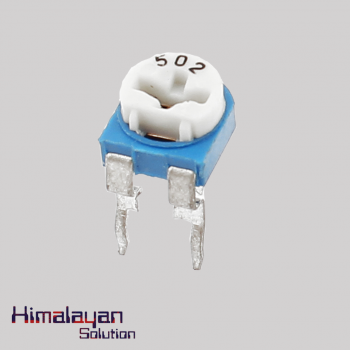

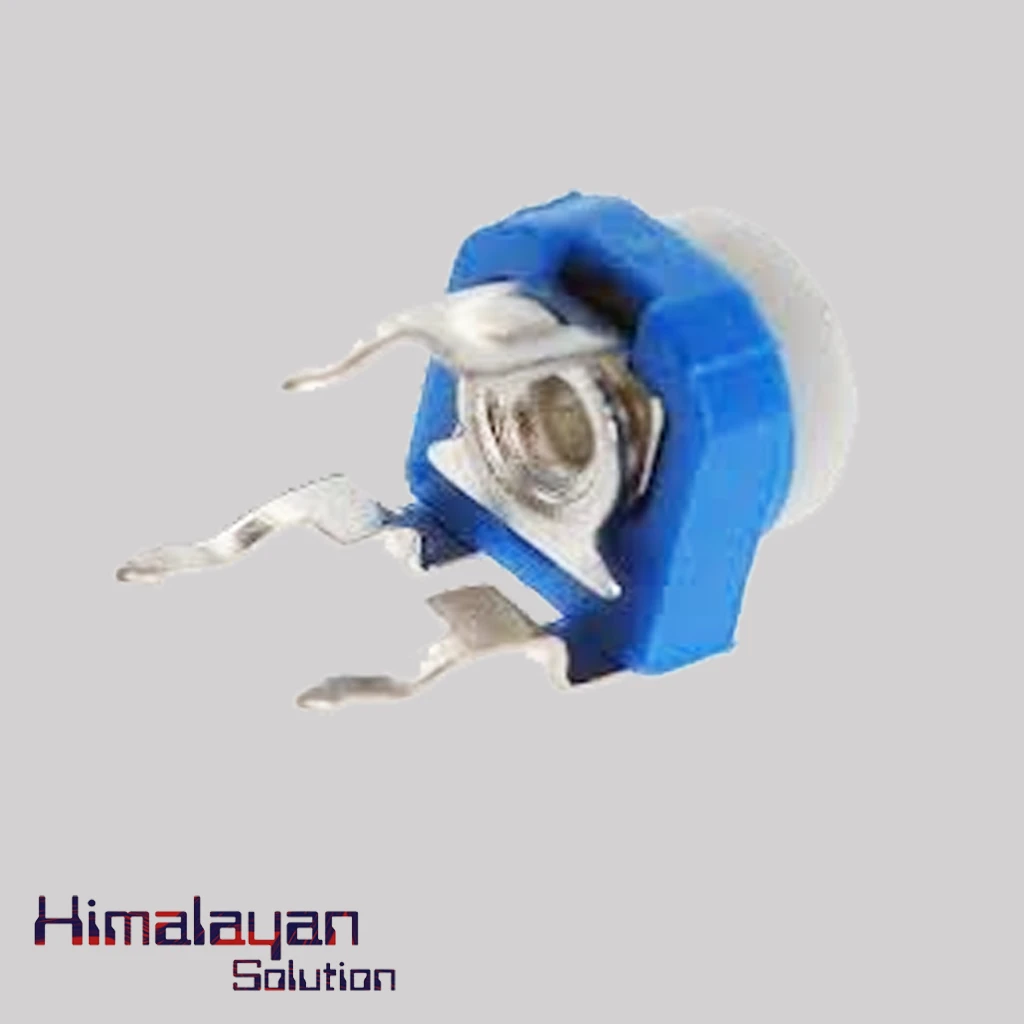

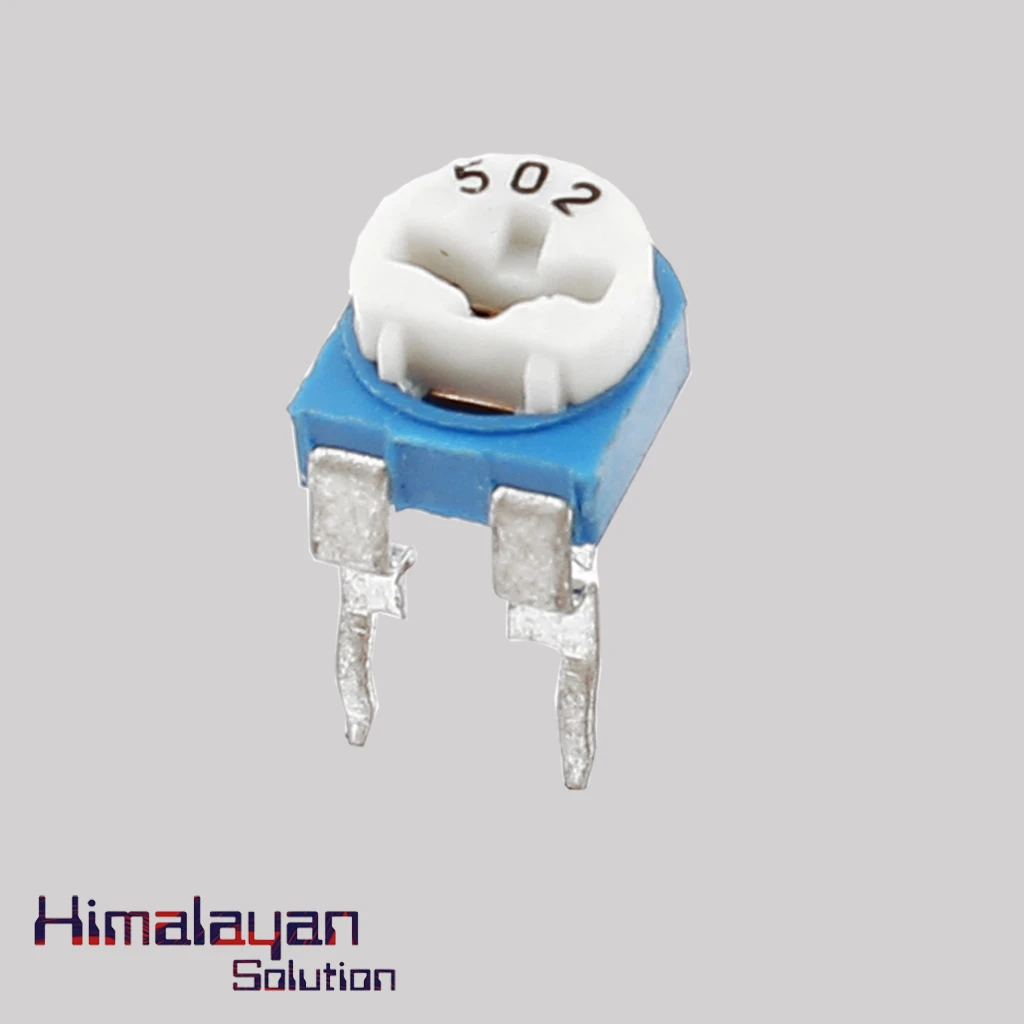

5k Preset
Preset 5k ω (ohm) variable resistor used for variating voltage as per the need in a circuit. It has 3 pcb mountable with 3 terminal pins. It can be adjusted from minimum to maximum value within a single turn which consist of three terminal pins. It helps to resist flow of electrical current around the circuit. The preset are mostly used to control electrical device such as volume controls and audio equipment.
Availability: In Stock
| Track Resistance | 5Kohm |
| No. of Turns | 1 |
| Resistance Tolerance | ± 10% |
| Temperature Coefficient | ± 100ppm/°C |
| Potentiometer Mounting | Through Hole |
| Adjustment Type | Top |
| Contact Resistance Variation + | 1% |
| Full Power Rating Temperature | 85°C |
| Lead Diameter | 0.5mm |
| Operating Temperature Range | -55°C to +125°C |
| Resistance | 5Kohm |
| Resistor Element Material | Variable Rotary Cermet |
