5k Potentiometer

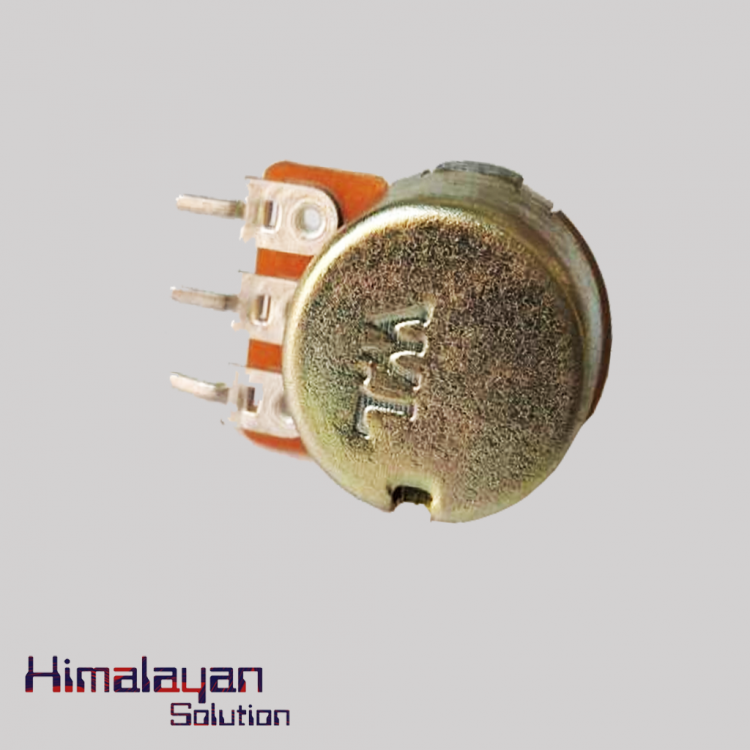

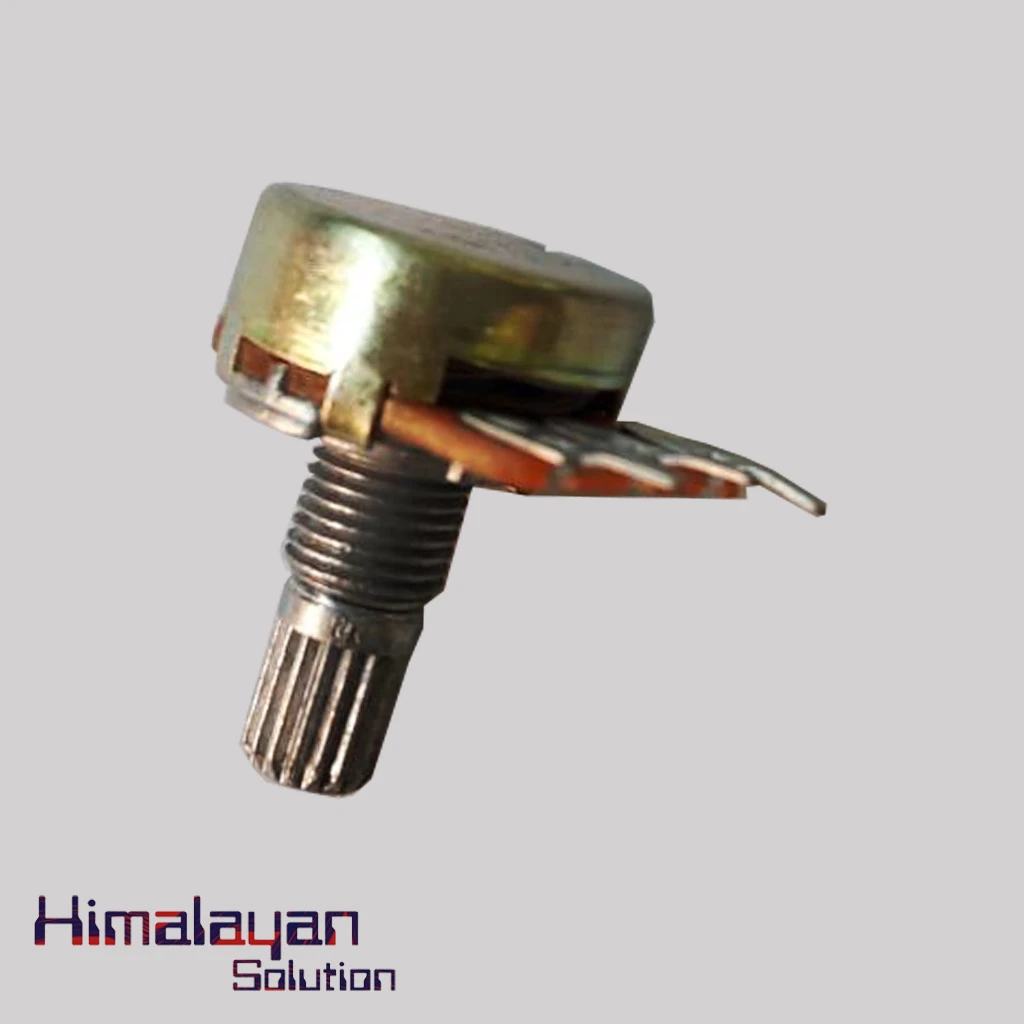

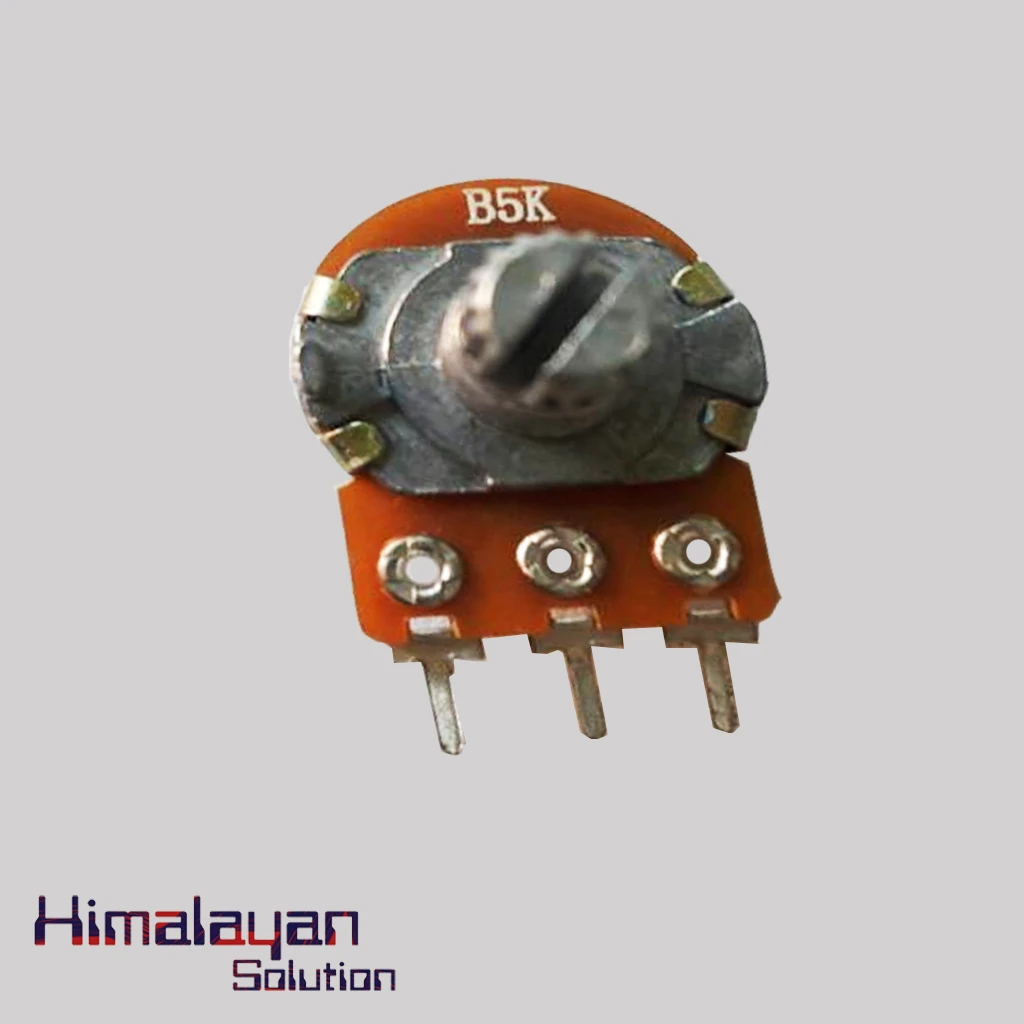

5k potentiometer is a three terminal resistor with a sliding or rotating contact. It is standard type potentiometer with Knurled Shaft. The shaft has metal construction. It can also be used as variable resistor or rheostat when only two terminals are use. This module is mostly used to control electrical devices such as volume controls on audio equipment’s and many more.
Availability: In Stock
| Value | 5K Ohm |
| Rated Voltage | 200V |
| Insulation Resistance | >100MΩ @500VDC |
| Tolerance | 0.2 |
| Power | 1/2W |
| Shaft | Knurled |
| Shaft Diameter | 6mm |
| Shaft Length | 10mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Base Height | 9mm |
| Adjustment Type | Top Adjustment |
