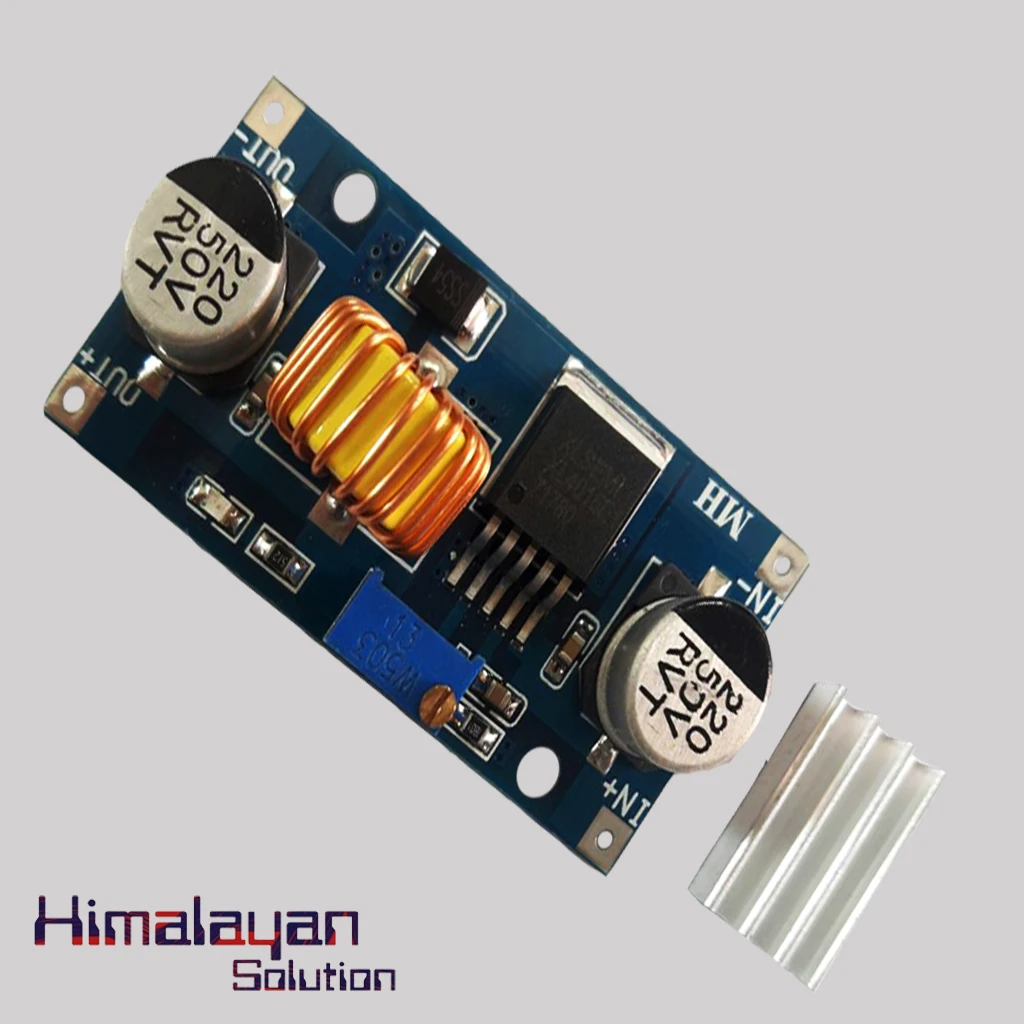

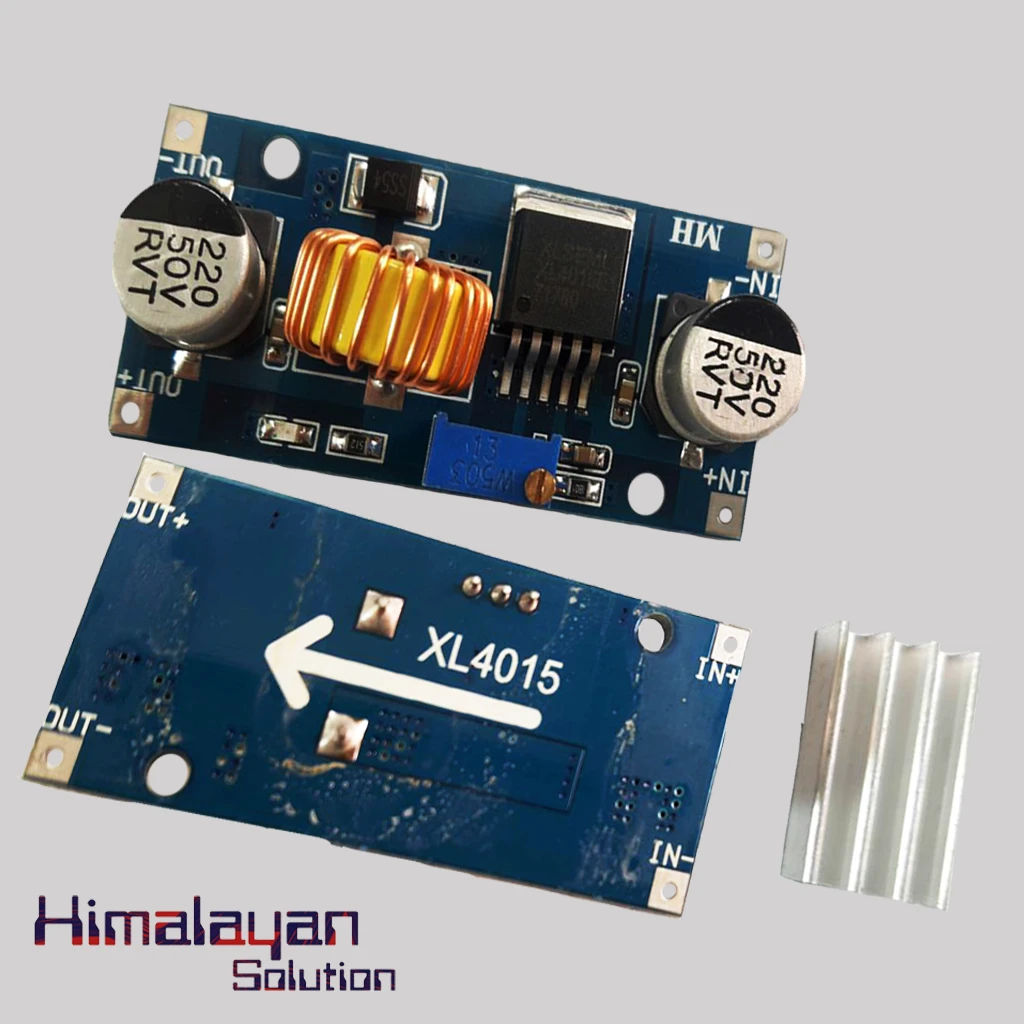

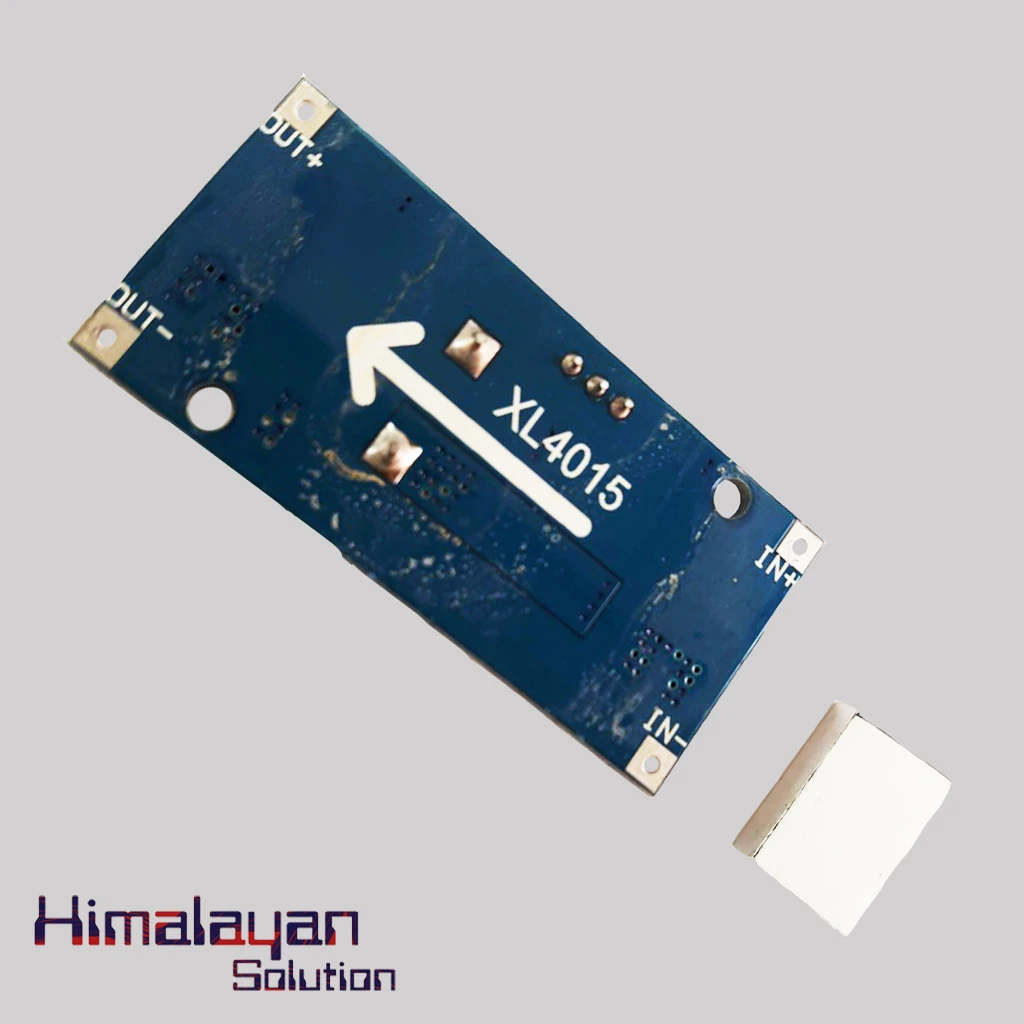

5A Buck Module With Heat Shink
The 5Amp Buck Module with Heat sink is a 180 KHz fixed frequency PWM buck (step-down) module. It is capable of driving a 0 to 5A (max) adjustable load with high efficiency, low ripple and excellent line and load regulation. It is also used as step-down modules with over current protection capabilities. The DC/DC buck module has applications where the input voltage is higher than output voltage, such as battery power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV，portable instrument power supply，telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck and many more. We provide this module with heat sink.
Availability: In Stock
| Name | 5Amp Buck Module With Heat sink |
| Input Voltage Range | 4～36VDC |
| Output Voltage Range | 1.25 to 36VDC Adjustable |
| Output Current | 0 to 5A |
| High Efficiency | up to 96% |
| Output Power | 75W |
| Fixed Switching Frequency | 180KHz |
| Thermal Shutdown Function | Yes |
| Current Limit Function | Yes |
| Output Short Protection Function | Yes |
| Input Reverse Polarity Protection | None (If Required,You Can Attach High Current Diode In Series With The Input) |
