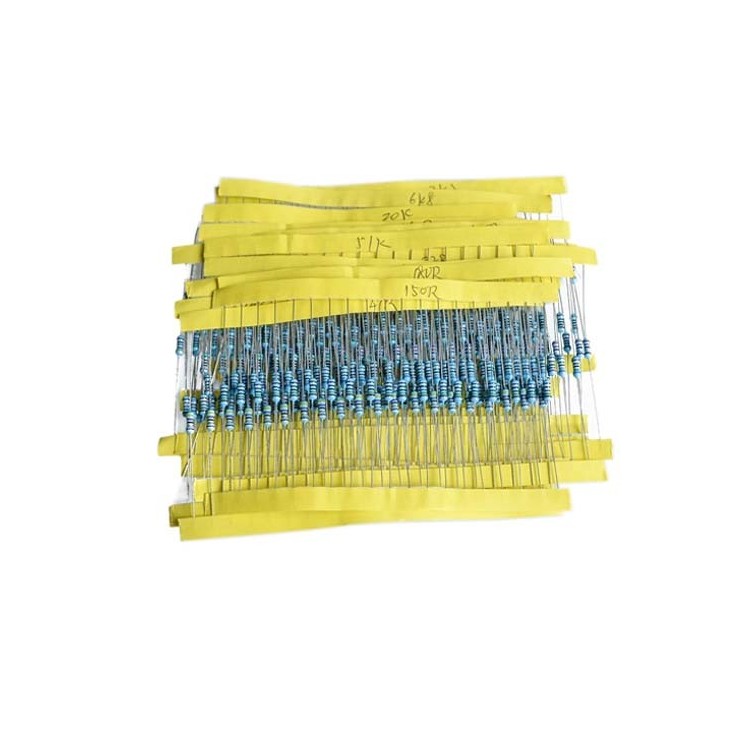

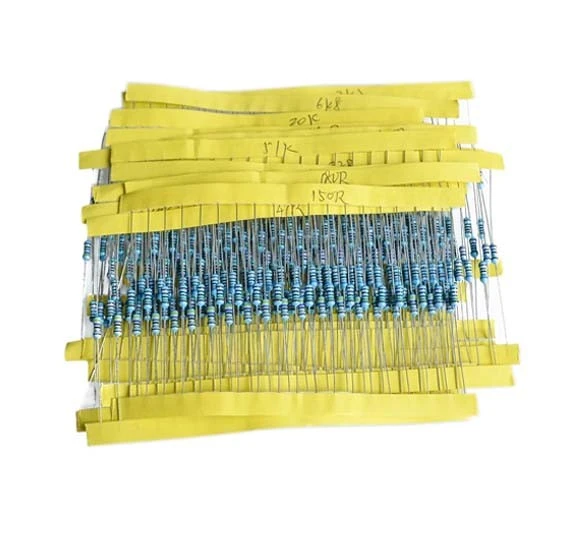

30 Kinds 1/4W Resistance 1% Accuracy Metal Film Resistor Pack 600Pcs in 1 Set

This 1/4W Metal Film Resistor Pack offers 30 different resistance values ranging from 1Ω to 1MΩ, with 20 pieces of each value. Featuring ±1% precision, these resistors are low-noise, stable, and ideal for precision circuits. They use a 5-band color code for easy identification, have a power rating of 1/4W, and can operate in a temperature range of -55°C to +155°C. Perfect for general electronics, audio, and precision applications.

In Category:

Basic Electronics Components

Resister

Availability: In Stock

Email to a Friend

Enquiry

Power Rating:	1/4W (0.25W)
Tolerance:	±1%
Resistance Values:	30 values from 1Ω to 1MΩ (20 pieces each)
Temperature Coefficient:	50ppm/°C to 100ppm/°C
Operating Voltage:	Up to 250V
Operating Temperature:	-55°C to +155°C
Body Size:	3.2mm × 8.5mm (Axial lead)
Color Code:	5-band
Material:	Metal film (low noise, high stability)

These resistor values include both small and large resistances, ranging from 102 ohms to 1M ohms, and each type has clear labeling for easy identification.

Here’s a breakdown of the resistor values based on your description:

Low resistance values (Ohms):
- 102 (1.02Ω), 222 (2.2Ω), 472 (4.7Ω), 1000 (10Ω), 1500 (15Ω), 2002 (20Ω), 2202 (22Ω), 2702 (27Ω), 3302 (33Ω), 4702 (47Ω), 5102 (51Ω), 6802 (68Ω)
Mid-range resistance values (Kilo Ohms):
- 1ΚΩ, 5ΚΩ, 2.2ΚΩ, 3.3ΚΩ, 4.7ΚΩ, 5.1ΚΩ, 6.8ΚΩ, 10ΚΩ, 20ΚΩ, 47ΚΩ, 51ΚΩ, 68ΚΩ
High resistance values (Mega Ohms):
- 100ΚΩ, 220ΚΩ, 300ΚΩ, 470ΚΩ, 680ΚΩ, 1ΜΩ

With 1% tolerance, these metal film resistors provide excellent accuracy for applications that require precise voltage or current control. The five-color ring marking makes it easy to verify the resistance value.
