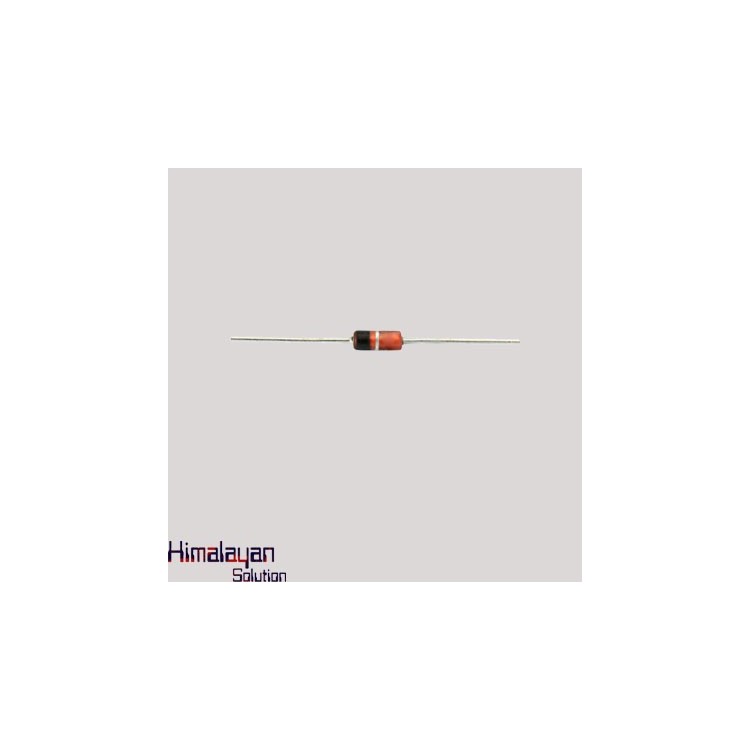

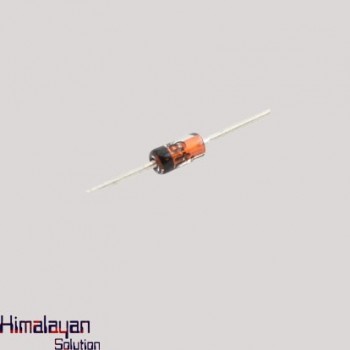

1n4148 Diode
1n4148 Diode is a standard silicon switching signal diode. Due to its dependable specifications and low cost, it is considered a popular and long-lived switching diode. Its name follows the JEDEC nomenclature. It is useful in switching applications up to about 100 MHz with a reverse-recovery time of no more than 4 ns.
Availability: Out Of Stock
| Voltage | DC Reverse (Vr) (Max): 75V |
| Current- Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 10mA |
| Speed: Small Signal | < 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4ns |
| Thermal Resistance | 300°C/W Ja |
| Mounting Type | Through Hole |
