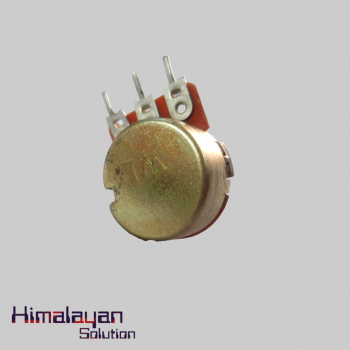

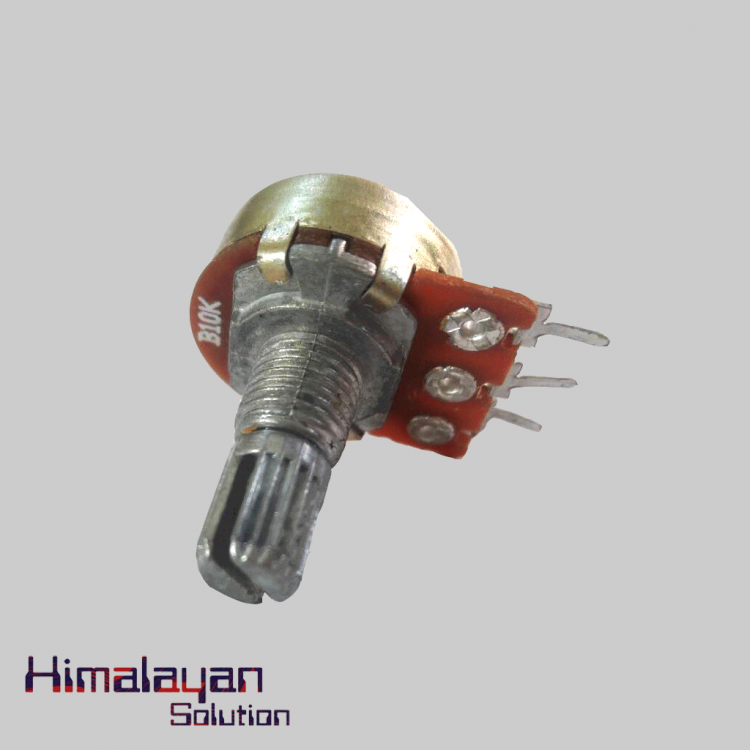

10K Potentiometer
10k potentiometer is a three terminal resistor with a sliding or rotating contact. It is standard type potentiometer with Knurled Shaft. The shaft has metal construction. It can also be used as variable resistor or rheostat when only two terminals are use. This module is mostly used to control electrical devices such as volume controls on audio equipment’s and many more.
- Resistance: 10k Ω.
- Tolerance: 20%.
- Shaft Length: 15mm.
Availability: Out Of Stock
| Value | 10K |
| Potentiometer Potential | 500 Ohm~1M Ohm (+-20%) |
| Rotational life Of The Potentiometer | 10000 Cycles |
| Rotational Life For Joystick | 100000 Cycles Min |
| Rated Power | 1A at AC/DC 125V |
| Switch Circuit | S.P.S.T |
| Potentiometer Sliding Noise | Less than 100mV. |
| Insulation Voltage | More Than 100M Ohm At DC500V |
| Withstand Voltage | 1 Minute At AC 500V |
| Rotational Travel | 300 ° |
| Static Stop Strength | 90 oz-in |
| Rotational Torque | 0.5 to 1.25 oz-in |
| Shaft Diameter | 5.5mm |
| Arrow Shaft Length | 10mm |
| Arrow Mounting Hole | 7.5mm |
