LDR

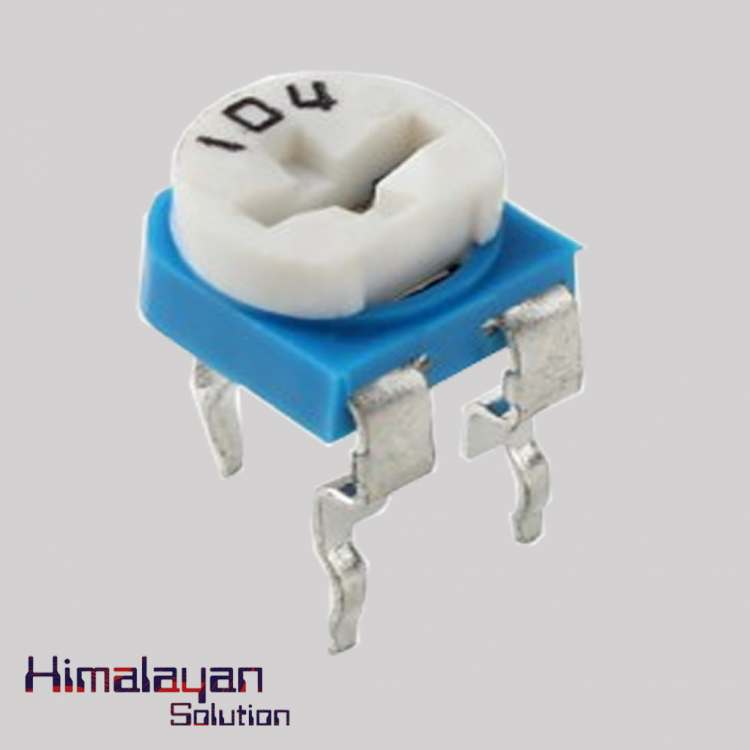

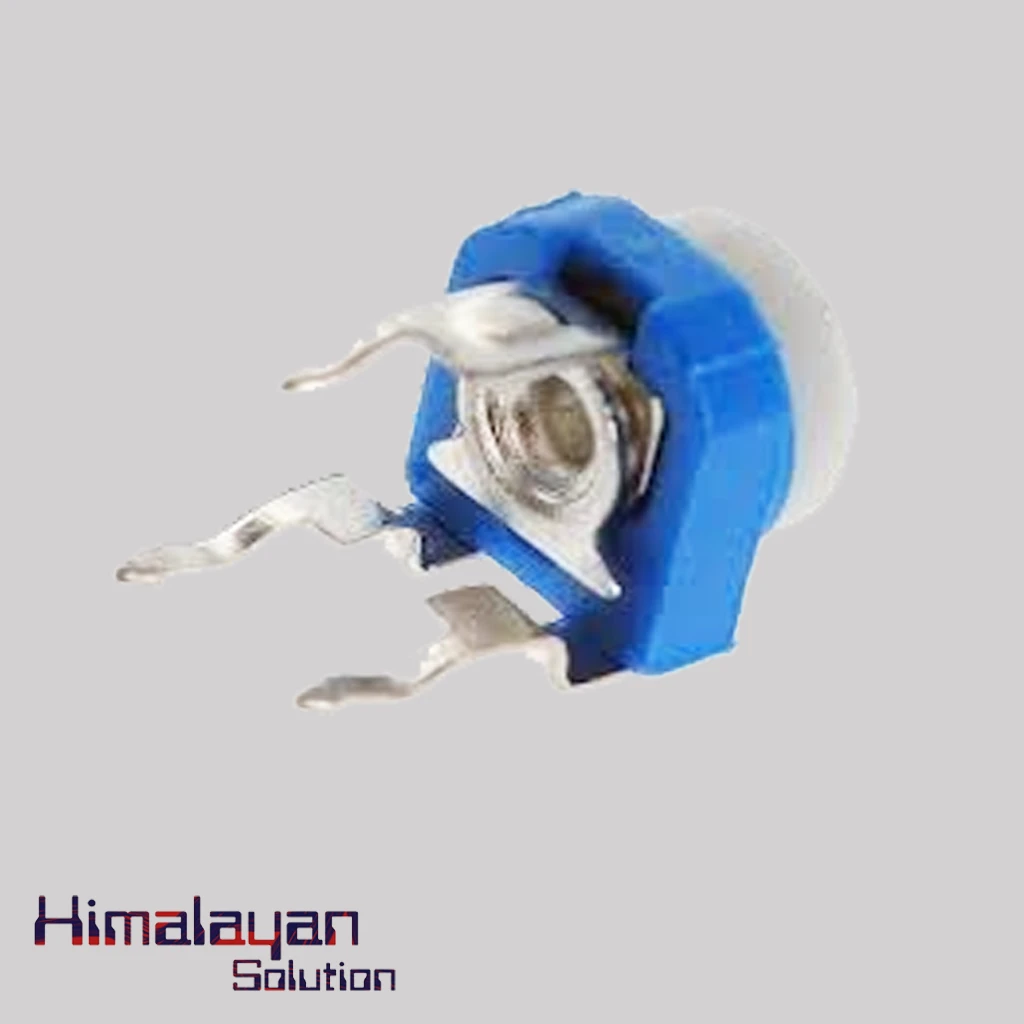

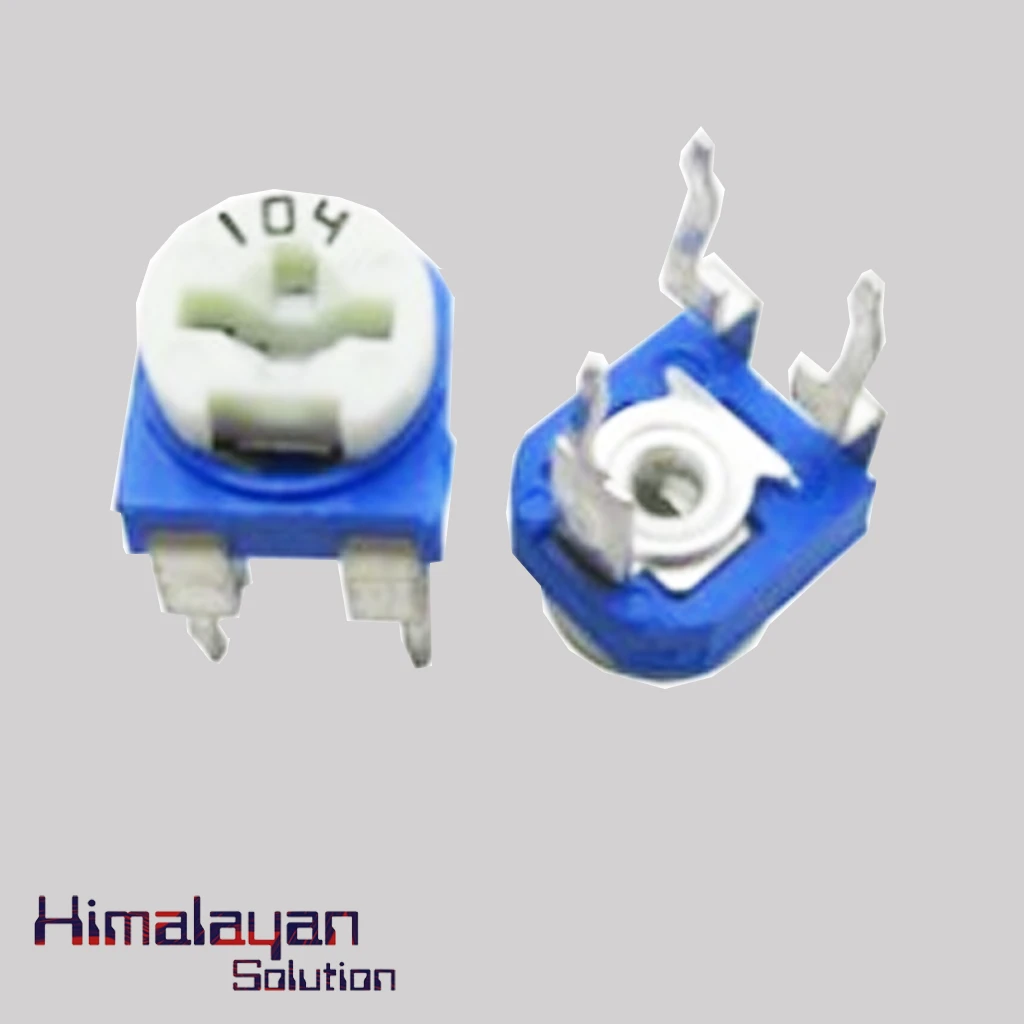

100K Preset

Preset 100k ω (ohm) variable resistor used for variating voltage as per the need in a circuit. It has 3 pcb mountable with 3 terminal pins. It can be adjusted from minimum to maximum value within a single turn which consist of three terminal pins. It helps to resist  flow of electrical current around the circuit. The preset are mostly used to control electrical device such as volume controls and audio equipment.

In Category:
  • Basic Electronics Components
  • Resister
  • Availability: In Stock

    Track Resistance 100 Kohm
    No. of Turns 1
    Resistance Tolerance ± 10%
    Temperature Coefficient ± 100ppm/°C
    Potentiometer Mounting Through Hole
    Adjustment Type Top
    Contact Resistance Variation + 1%
    Full Power Rating Temperature 85°C
    Lead Diameter 0.5mm
    Operating Temperature Range -55°C to +125°C
    Resistance 100 Kohm
    Resistor Element Material Variable Rotary Cermet
