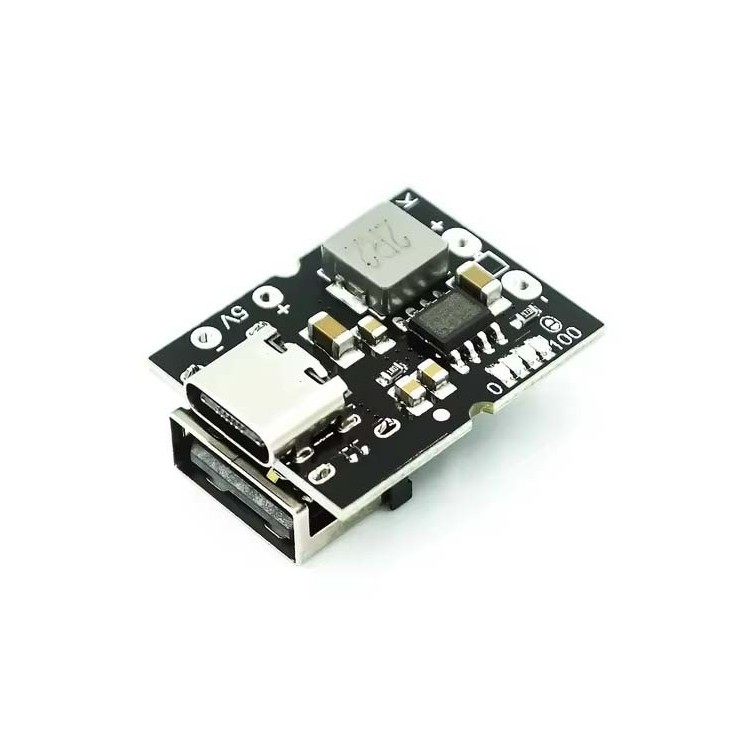

Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board
- Input voltage range: 5 - 5.5V
- Charging cut-off voltage: (4.2v/4.35v) ± 0.5%
- Charging current: 2.4a ± 5%
- Boost output voltage: 5V - 5.15v (line loss compensation)
- Boost output voltage ripple: 100mV
- Boost output current: 2A

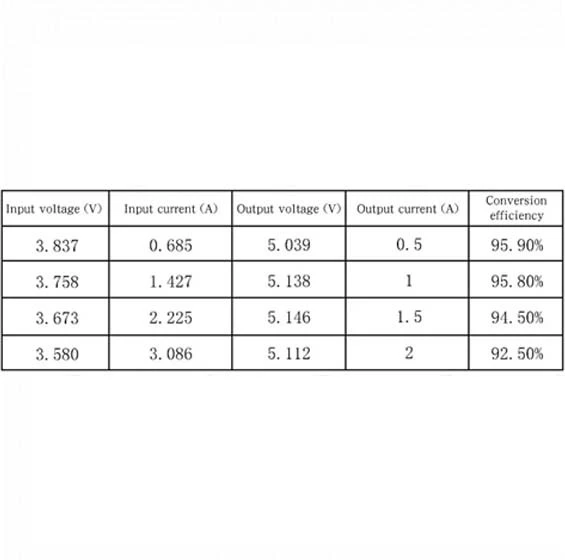

- Boost conversion efficiency:92.5% (3.6V input, 5v2a output)
Availability: Out Of Stock

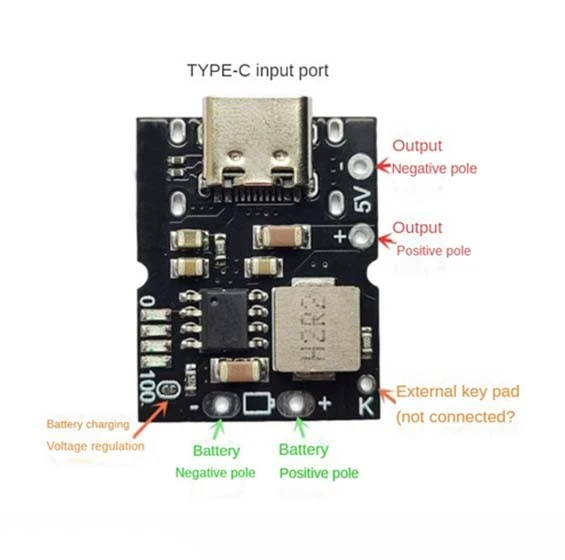

- Type-C input, high accuracy of charging voltage.
It supports discharging while charging.
Note:power off operation is required to adjust the charging voltage setting
Input voltage range:5 - 5.5V
Charging cut-off voltage:(4.2v/4.35v) ± 0.5%
Charging current:2.4a ± 5%
Boost output voltage:5V - 5.15v (line loss compensation)
Boost output voltage ripple:100mV
Boost output current:2A
Boost conversion efficiency:92.5% (3.6V input, 5v2a output)
Static current at battery end:Less than 30uA
Version:With Welding
Colour:Black
