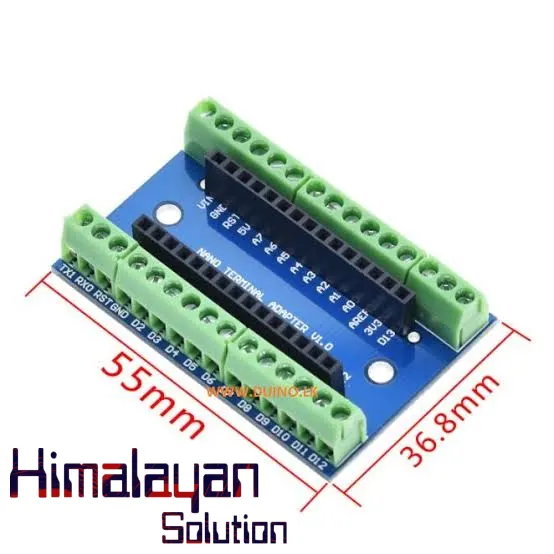

NANO V3.0 3.0 Controller Terminal Adapter

0 /5.0 (0 reviews)

The NANO V3.0 3.0 Controller Terminal Adapter provides a secure screw-terminal interface for Arduino Nano V3.0 boards, simplifying wiring for prototyping and permanent installations. It is compatible with standard Nano V3.0 pinouts and accepts bare wires or ferrules for reliable connections. Ideal for DIY electronics,...

Need More Information?

Message Us Now

The NANO V3.0 3.0 Controller Terminal Adapter is the perfect solution for makers, engineers, and hobbyists who need a reliable, solderless way to connect their Arduino Nano V3.0 to external components. This screw terminal shield eliminates the hassle of loose jumper wires and fragile breadboard connections, giving you a secure and professional wiring interface for your projects.

With clearly labeled screw terminals for every pin, you can quickly attach sensors, motors, LEDs, and power supplies without soldering. The adapter breaks out all the Nano's pins, including digital I/O, analog inputs, and power rails, making it ideal for prototyping, testing, and permanent installations. Its compact design plugs directly onto the Nano, saving space and reducing clutter.

Built with high-quality materials, this terminal adapter ensures stable electrical connections and long-lasting performance. Whether you're building a home automation system, a robot, or an educational project, this shield simplifies wiring and lets you focus on your creativity. It's a must-have accessory for anyone working with the Arduino Nano V3.0.

Specifications

Model

NANO V3.0 Terminal Adapter

Compatibility

Arduino Nano V3.0 / Nano V3.0 ATmega328P

Interface

Screw terminal block to Nano pin headers

Terminal Pitch

3.5 mm

Number of Terminals

30 screw terminals

Material

FR4 PCB with nickel-plated brass terminals

Dimensions

45 mm x 18 mm x 12 mm

Operating Voltage

5 V DC (signal pass-through)

Current Rating

2 A per terminal

Package Contents

1 x NANO V3.0 terminal adapter board

FAQs

It is compatible with Arduino Nano V3.0 and other microcontroller boards with a 30-pin Nano form factor, providing easy screw terminal connections for all I/O pins.

Simply plug your Nano board into the adapter's female headers, ensuring correct orientation, then secure wires into the screw terminals. No soldering is required.

The package includes one NANO V3.0 Terminal Adapter board. The Nano microcontroller board is not included unless specified.

We offer a 30-day money-back guarantee and a 12-month warranty against manufacturing defects. Contact our support for returns or replacements.

Yes, the adapter features female headers that accept standard 0.1-inch pitch pins, so it works with both soldered and unsoldered Nano boards.

The board measures approximately 45mm x 30mm, with screw terminals on both sides for convenient wire connections.
