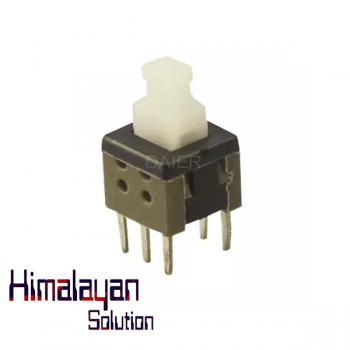

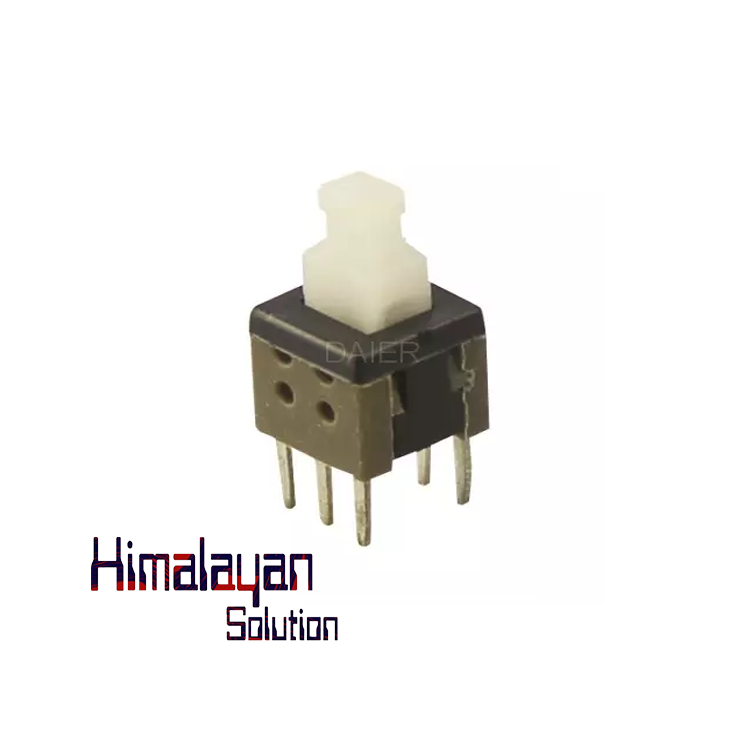

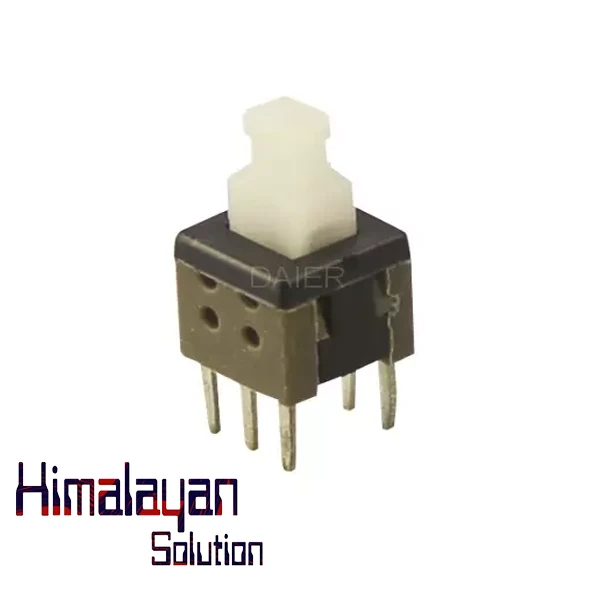

Mini Push Button Switch

The KFC6X6-A is a compact and durable mini push switch with a rating of 0.1A 30VDC. It features a contact resistance of 100mOhm max and an electrical life of >= 10,000 cycles. It is available in two function options ON-ON. The switch has a dielectric strength of 500VAC 1 minute and insulation resistance of 100mOhm min 500VDC. It operates within a temperature range of -25C to +85C, making it suitable for use in various applications. OEM or ODM options are also available for customized solutions.

Features:

• Miniature size

• Rating: 0.1A 30VDC

• Contact resistance: 100mOhm max

• Electrical life: >= 10,000 cycles

• Function options: ON-ON

• Dielectric strength: 500VAC 1 minute

• Operating temperature range: -25C to +85C

• Insulation resistance: 100mOhm min (500VDC)

• OEM or ODM options available
