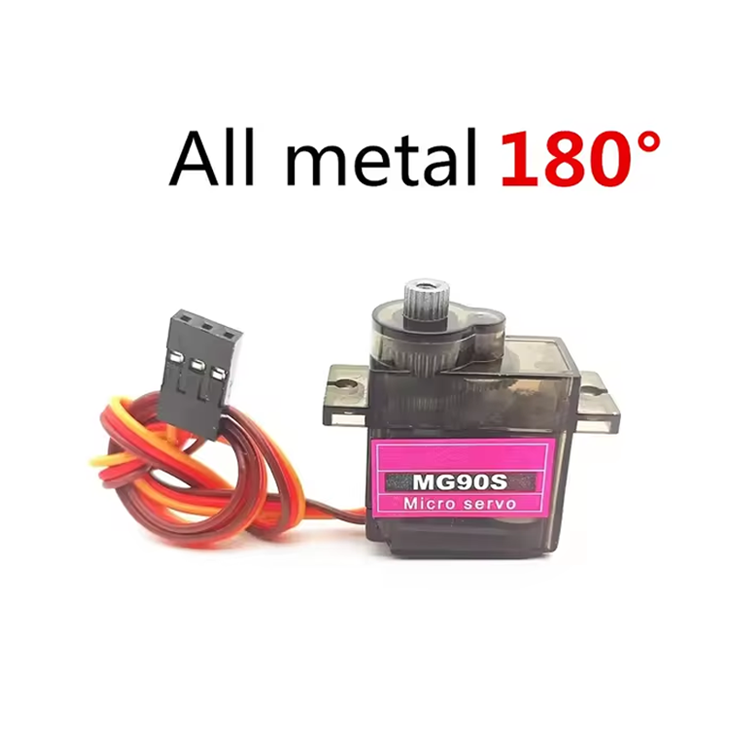

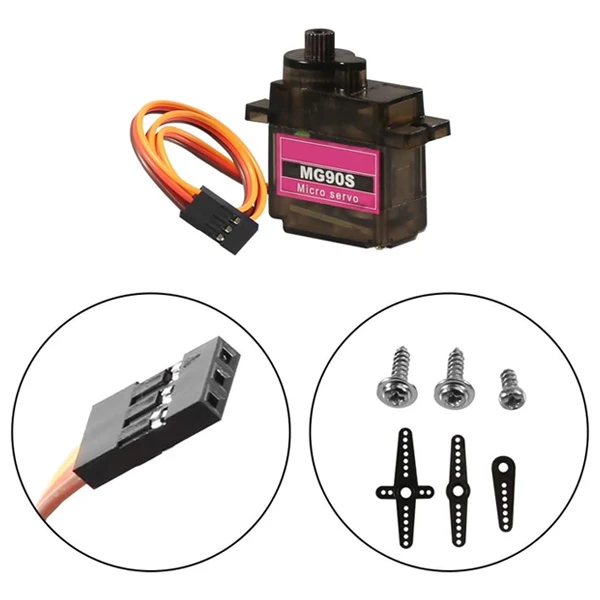

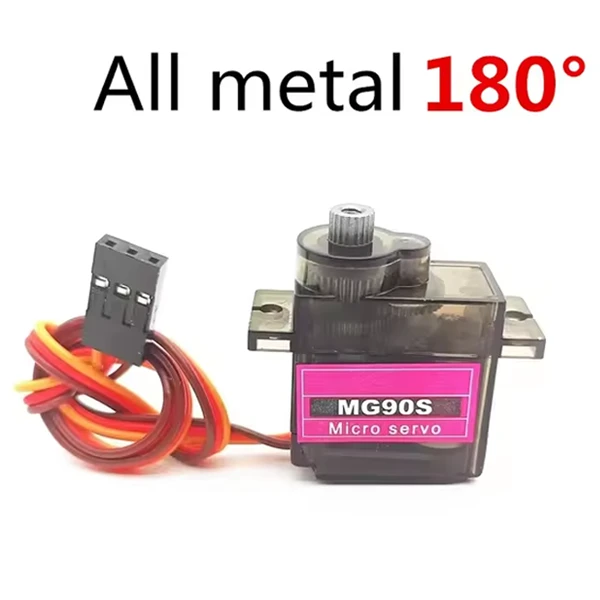

MG90S Servo Motor Geared Micro Servo Motor 180 Degree
High-quality 180° micro servo with durable metal gears, 4.8V operation, 1.6kg/cm torque, and 0.11 sec/60° speed. Compact (12g), precise (5 µs dead-band), and ideal for RC vehicles, robotics, and electronics projects. Perfect for Arduino and Raspberry Pi enthusiasts!
Availability: In Stock
| Model | MG90S |
| Type | Analog Servo |
| Maximum Angle | 180° (typical) |
| Weight | 12g |
| Operating Voltage | 4.8V to 6.0V |
| Operating Speed | 0.11 sec/60° (4.8V), 0.10 sec/60° (6.0V) |
| Stall Torque | 1.6kg/cm (4.8V), 1.8kg/cm (6.0V) |
| Dead Band Width | 5 µs |
| Temperature Range | 0°C to 55°C |
| Gear Material | Metal gears |

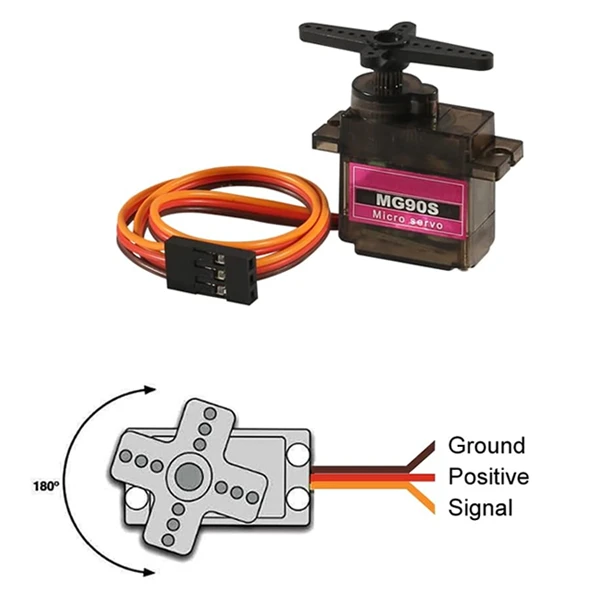

| Control Signal | PWM (Pulse Width Modulation) |
| Connector Wire Length | 250mm |
| Dimension (LxWxH) | 22.6mm x 12.1mm x 22.5mm |
The MG90S Micro Servo Motor is an upgraded version of the SG90 servo, featuring a combination of high performance, durability, and precision. Here’s a detailed overview based on the information provided:
Key Features
-
Upgraded Model: MG90S is the updated version of the SG90 servo motor, offering better torque and speed.
-
Material: Full metal gear construction ensures durability and less noise compared to plastic gears.
-
Compact & Lightweight: Weighs only 12 grams, suitable for lightweight applications.
-
Wide Compatibility: Works with Arduino, Raspberry Pi, and other microcontroller platforms.
-
Full Ball Bearings: Enhances smooth operation and longevity.
Specifications
|
Parameter |
Value |
|
Model |
MG90S |
|
Maximum Angle |
180° |
|
Operating Voltage |
4.8V to 6.0V |
|
Operating Speed |
0.11 sec/60° (4.8V) |
|
Stall Torque |
1.6kg/cm (4.8V) |
|
Dead Band Width |
5 μsec |
|
Temperature Range |
0°C to 55°C |
|
Connector Wire Length |
250mm |
|
Dimension (LxWxH) |
22.6mm x 12.1mm x 22.5mm |
|
Weight |
12g |
|
Interface Type |
JR / FP General |
Applications
-

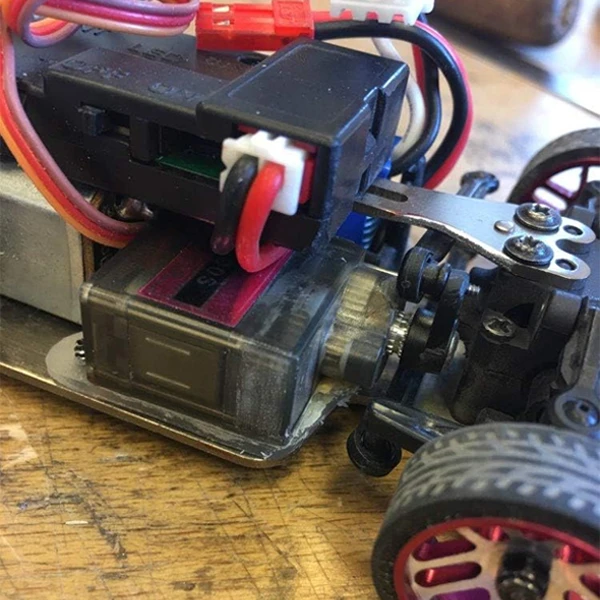

Miniature RC Projects: Cars, boats, helicopters, and airplanes.
-
Electronics DIY: Ideal for Arduino, Raspberry Pi projects, and prototyping.
-
Lightweight Robotics: Servos are a great fit for small robotic arms or mechanisms requiring precise angular movement.
-
Educational Use: Perfect for learning control systems and servo operation.
Advantages
-
Fast Response: High speed for quick angular adjustments.
-
Precise Control: Minimal dead-band width for accurate positioning.
-
Versatile: Supports both 4.8V and 6.0V operations.
-
Compact Design: Easy to integrate into tight spaces.
Limitations
-
Not Suitable for Heavy Load: Recommended for lightweight applications only, such as small aircraft models. Not ideal for large fixed-wing planes or helicopters.
-
Analog Controller: Lacks the advanced capabilities of digital servo motors in some applications.
The MG90S micro servo motor strikes a good balance between performance and affordability, making it a popular choice for hobbyists and educators. Would you like help integrating it into a project?
