32 Servo Controller

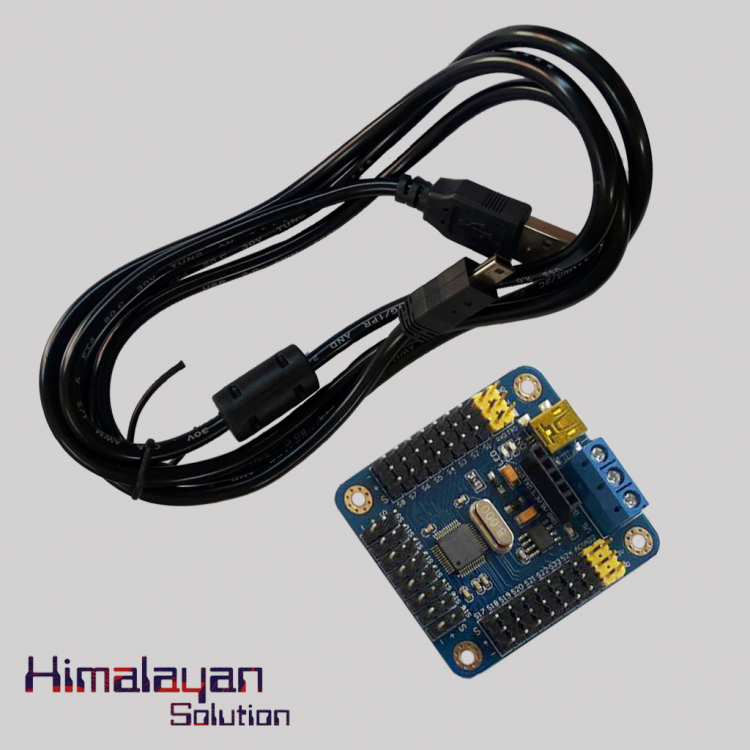

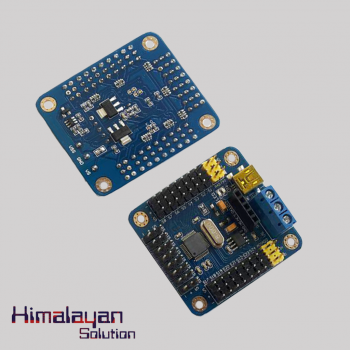

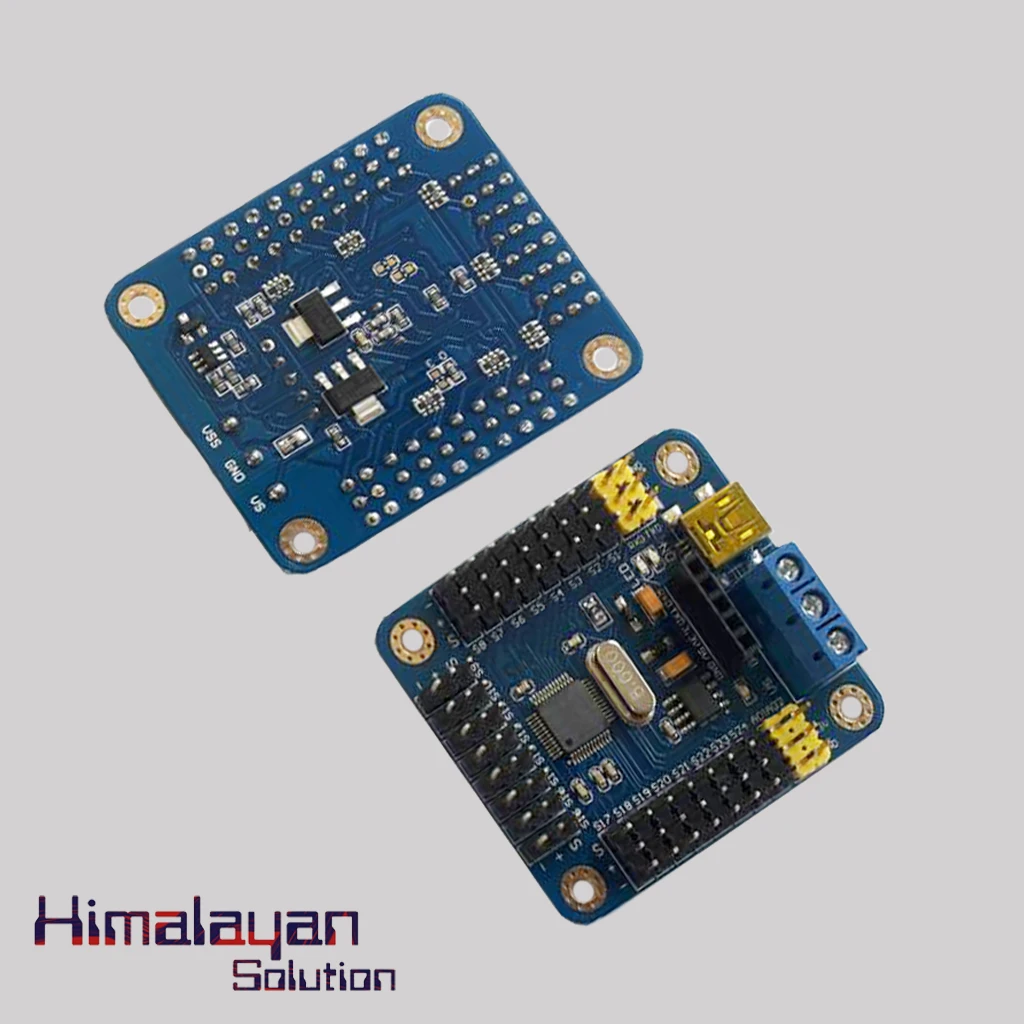

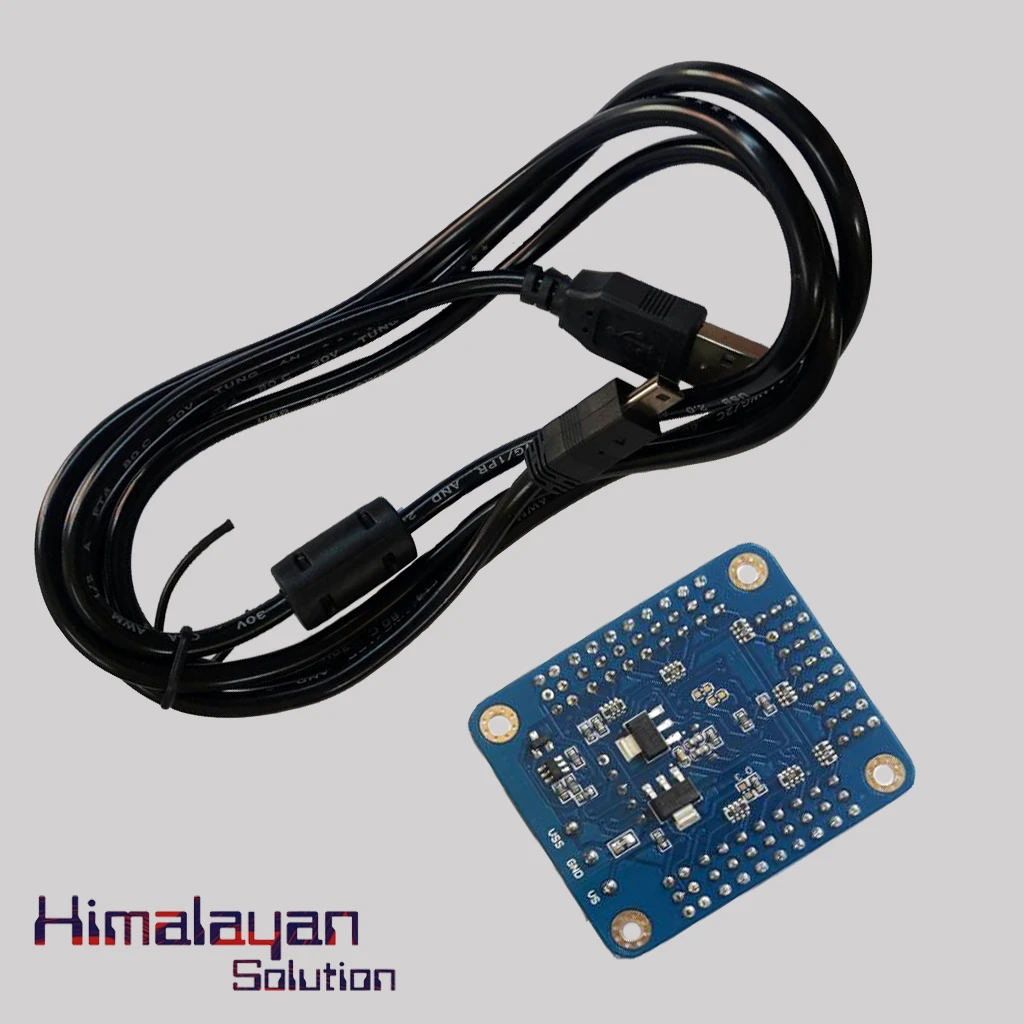

The Mini USB 32-Bit Servo Controller is a 24 channel servo motor driver controller module. It uses a 32-bit processor so that it has fast response and stable operation. It has self detect Baud-rate (9600, 19200, 38400, 57600, 115200, 128000). A mini-USB cable is also included with module. It can ideal for 6 legged robots or similar. It also can be applicable for various DIY projects.
Availability: In Stock
| Name | Mini USB 32-Bit Servo Controller |
| CPU | 32-bit |
| Power Supply | 4.5V ~ 5.5V ( USB Powered) |
| Channel | 24 ( Servo Speed Adjustable) |
| Communication Input | USB or Serial Port(TTL) |
| Baud Rate | 9600- 19200- 28400- 57600- 115200- 128000 (recognized automatically) |
| Size | 51.0 x 43.5 x 1.6mm |
| Control Mode | USB and UART (TTL) |
| Flash Memory | 512K ROM |
| Signal Output | PWM (Accuracy 1us) |
| Servo Motor Resolution | 1us- 0.045 degrees |
