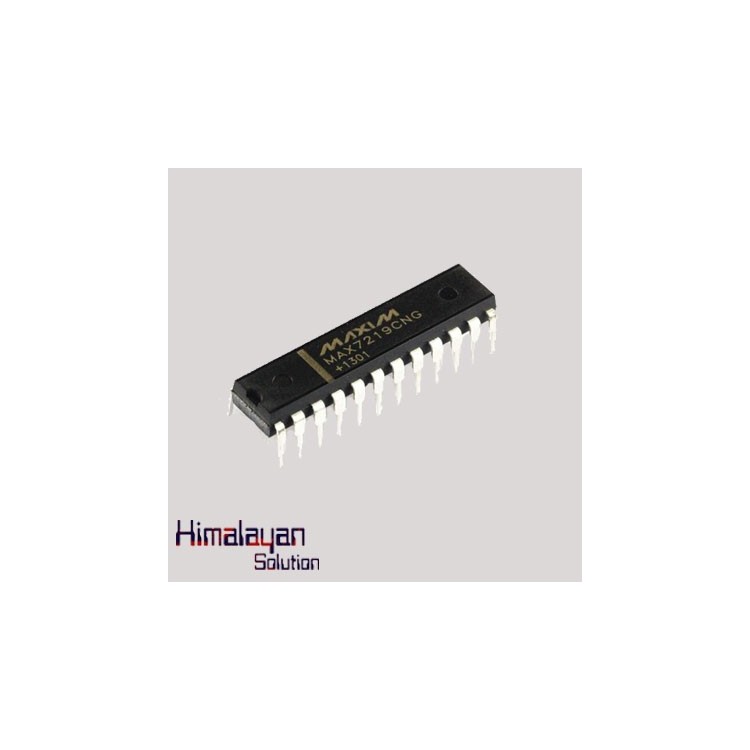

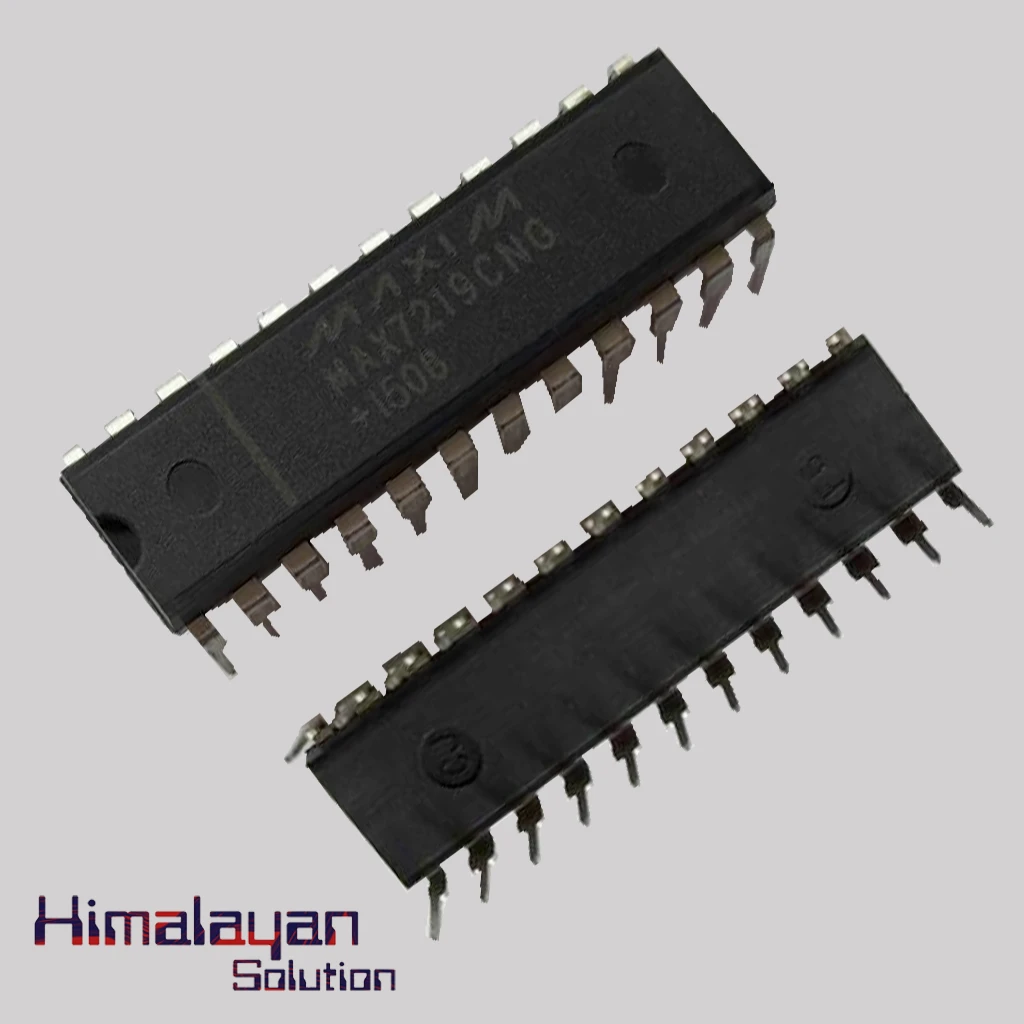

Max 7219 IC
The MAX7219 Chip is a serial input/output common-cathode display drivers used to control a large array of LEDs. It has features like 10MHz serial interface. Individual LED segment control, digital and analog brightness control. It has low power shutdown of 150µA. It can microprocessors to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs
Availability: In Stock
| Display Type | LED |
| Interface | 4-Wire Serial |
| Current - Supply | 330mA |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Number Of Segments | 64 |
| High Level Output Current | - 2 mA |
| Maximum Power Dissipation | 1066 mW |
| Configuration | 7 Segment + DP |
| Digits Or Characters | 8 Digits |
| Voltage - Supply | 4 V ~ 5.5 V |
| Mounting Type | Through Hole |
| Number Of Digits | 8 |
| Low Level Output Current | 5 mA |
| Name | Rating | Comment |
|---|---|---|
| Niraj Khadka | 4.00 | Bought 10 of them, looked into the datasheet and made a sample. works great. You can find the common cathode 7 seg display in this same website. Those are compatible with this max7921 and wor |
