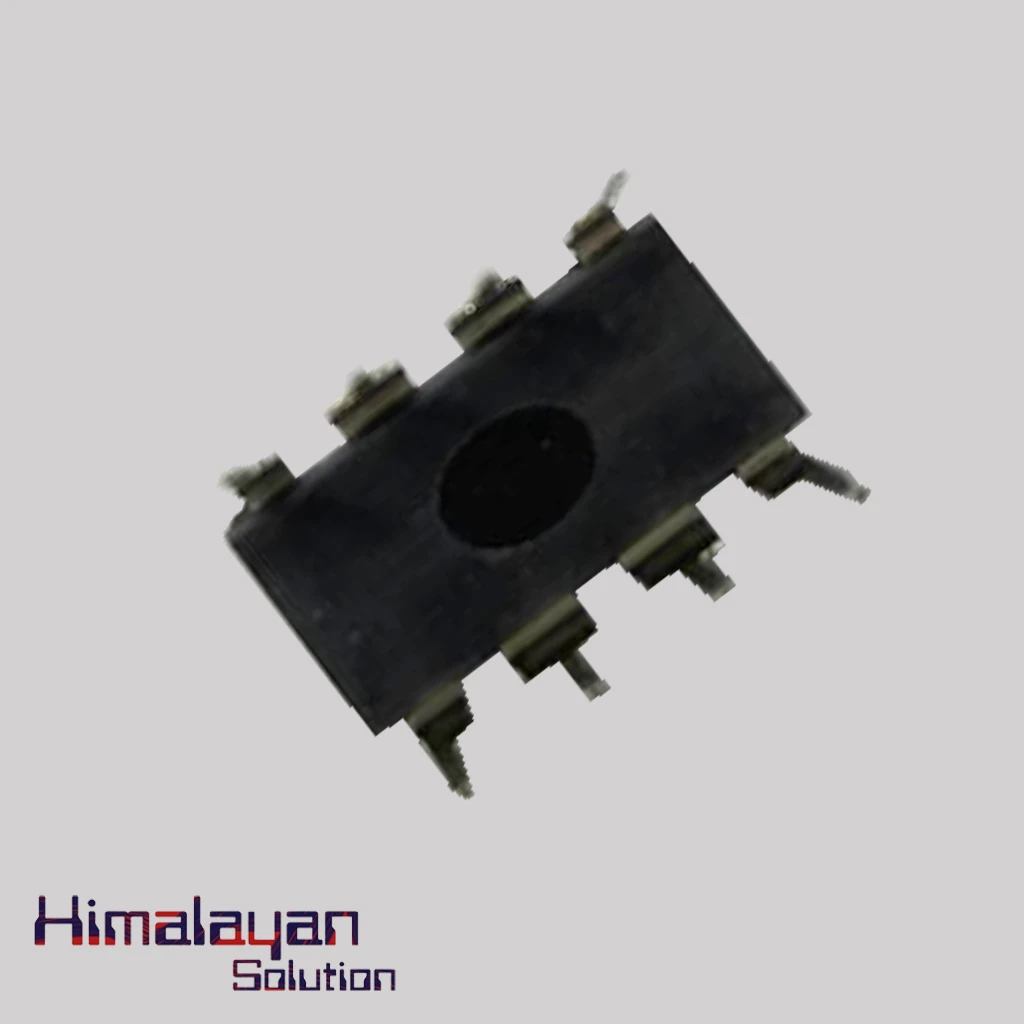

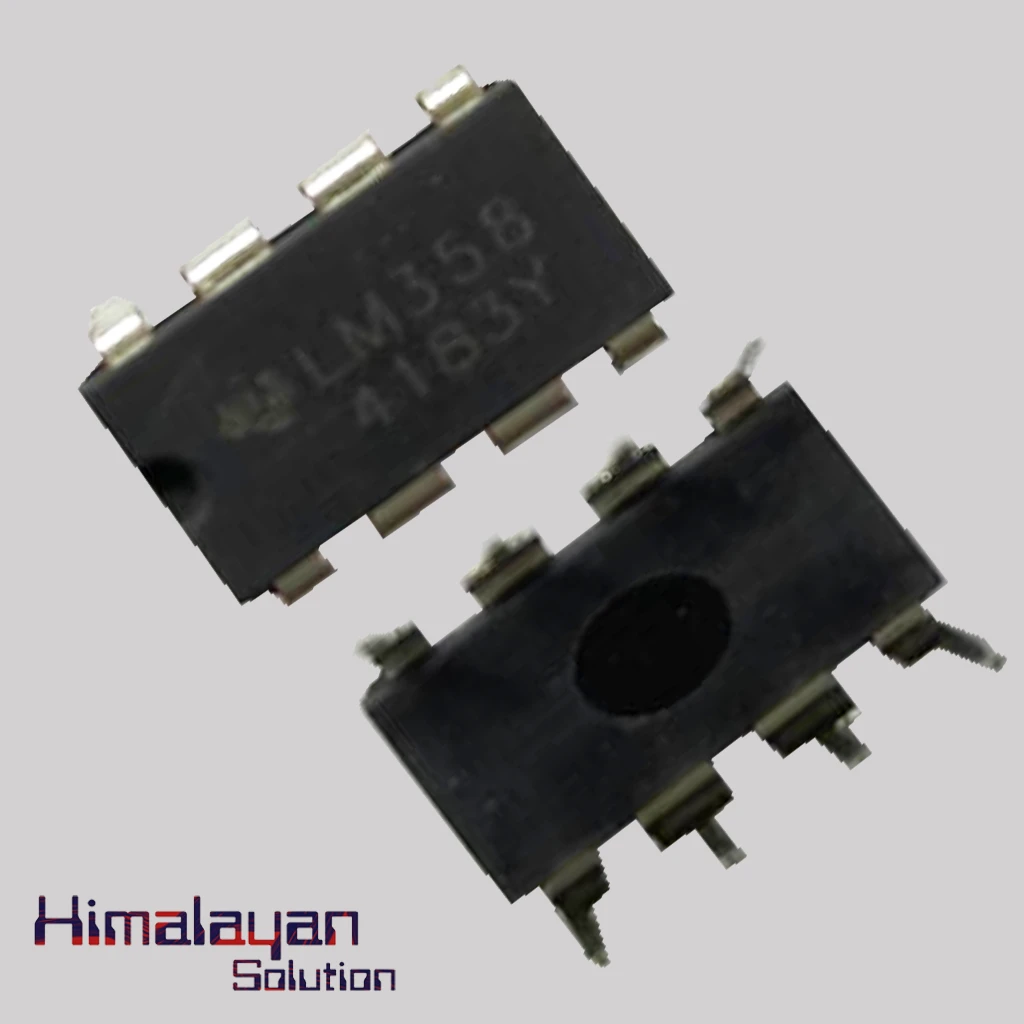

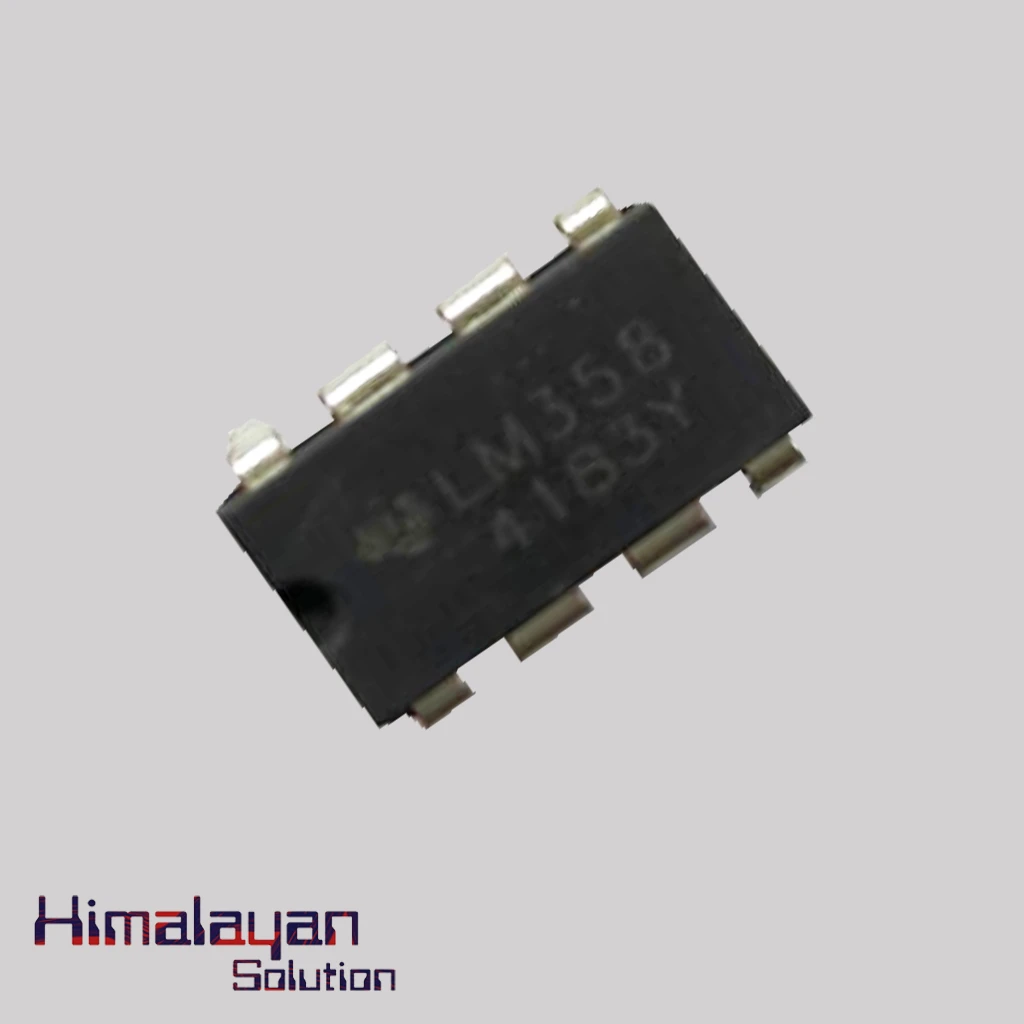

Lm 358 IC

The LM358 is a low power 8-pin integrated circuit dual operational amplifier used in detector circuits. It can be used as transducer amplifier, DC gain block etc. This ic eliminates the need for a dual supplies. It is compatible with all form of logic. For battery operation the power drain is suitable.

In Category:
  • Basic Electronics Components
  • ICS
  • Availability: In Stock

    Amplifier Type General Purpose
    Slew Rate 0.3 V/µs
    Voltage - Input Offset 2900µV
    Current - Output / Channel 30mA
    Operating Temperature 0°C ~ 70°C
    Package / Case 8-DIP (0.300", 7.62 mm)
    Common Mode Rejection Ratio (Min) 65 dB
    Input Bias Current (Max) 250 nA
    Supply Current 1.2 mA
    Operating Temperature 0 C to + 70 C
    Shutdown No
    Supply Voltage (Max) 3 V to 32 V
    Number Of Circuits 2
    Current - Input Bias 45nA
    Current - Supply 800µA
    Voltage - Supply, Single/Dual (±) 3 V ~ 32 V, ±1.5 V ~ 16 V
    Mounting Type Through Hole
    Number Of Channels 2
    Input Offset Voltage 7 mV
