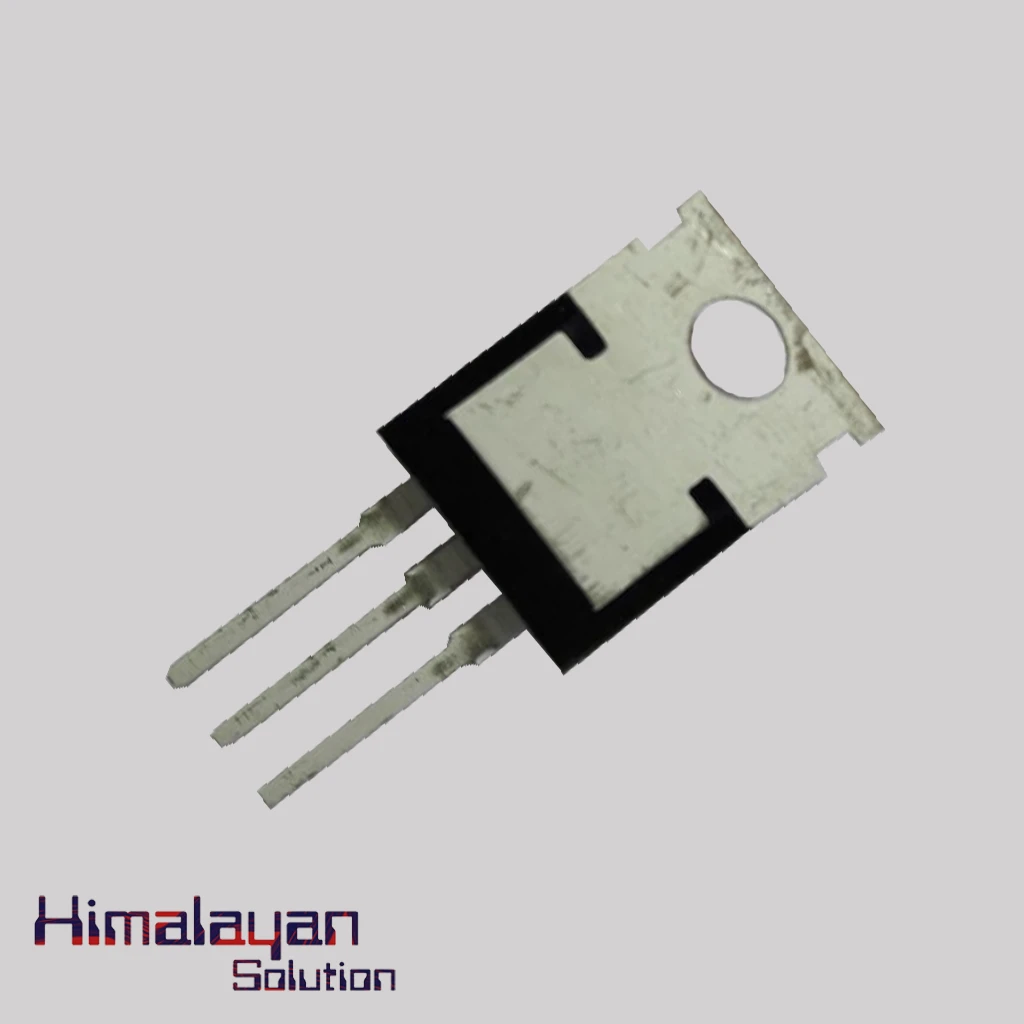

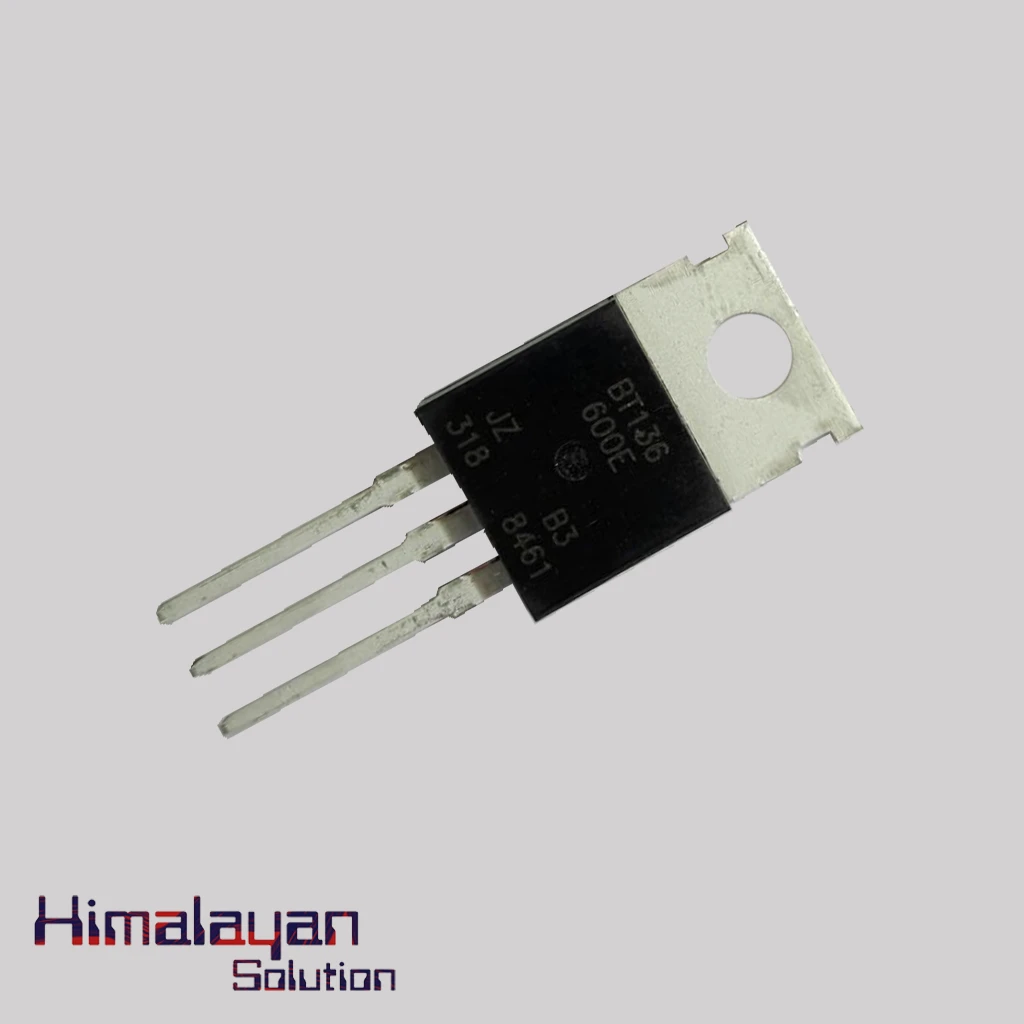

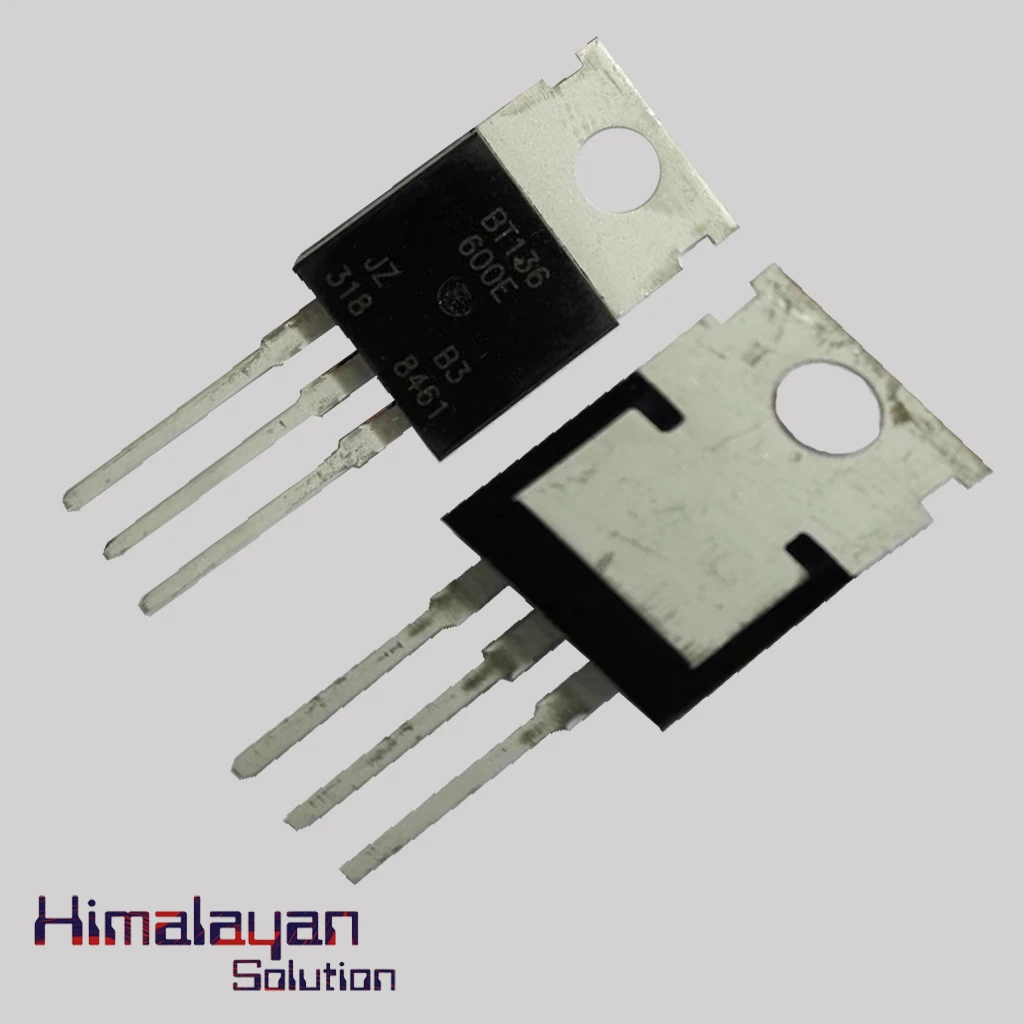

BT 136 IC
BT136 600E is used in AC switching and control applications with current ratings from under 1A to 40A rms.The switch for alternating current circuit is convenient due to the TRIAC.. It has features like capability of high blocking voltage, direct triggering from low power drivers and logic ics, lowest Emi at commutation and many more. It is used in general purpose motor control, switching and many more.
Availability: In Stock
| Package / Case | TO-220AB-3 |
| Configuration | Single |
| Voltage - Off State | 600V |
| Current - Non Rep. Surge 50, 60hz (itsm) | 25A, 27A |
| Voltage - Gate Trigger (vgt) (max) | 1.5V |
| Gate Trigger Voltage (vgt) | 0.7 V |
| Off-state Leakage Current @ Vdrm Idrm | 0.1 mA |
| Gate Trigger Current (igt) | 11 mA |
| Forward Voltage Drop | 1.4 V |
| Mounting Type | Through Hole |
| Current - Hold (ih) (max) | 15mA |
| Current - Gate Trigger (igt) (max) | 10mA |
| Current - On State (it (rms) (max) | 4A |
| Triac Type | Logic - Sensitive Gate |
| Operating Temperature | -40 °C to +125 °C |
