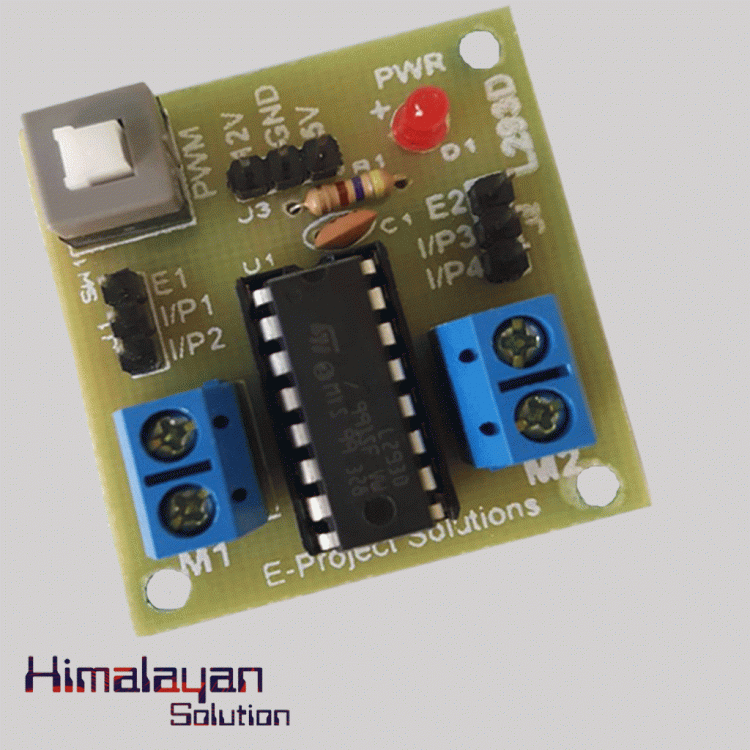

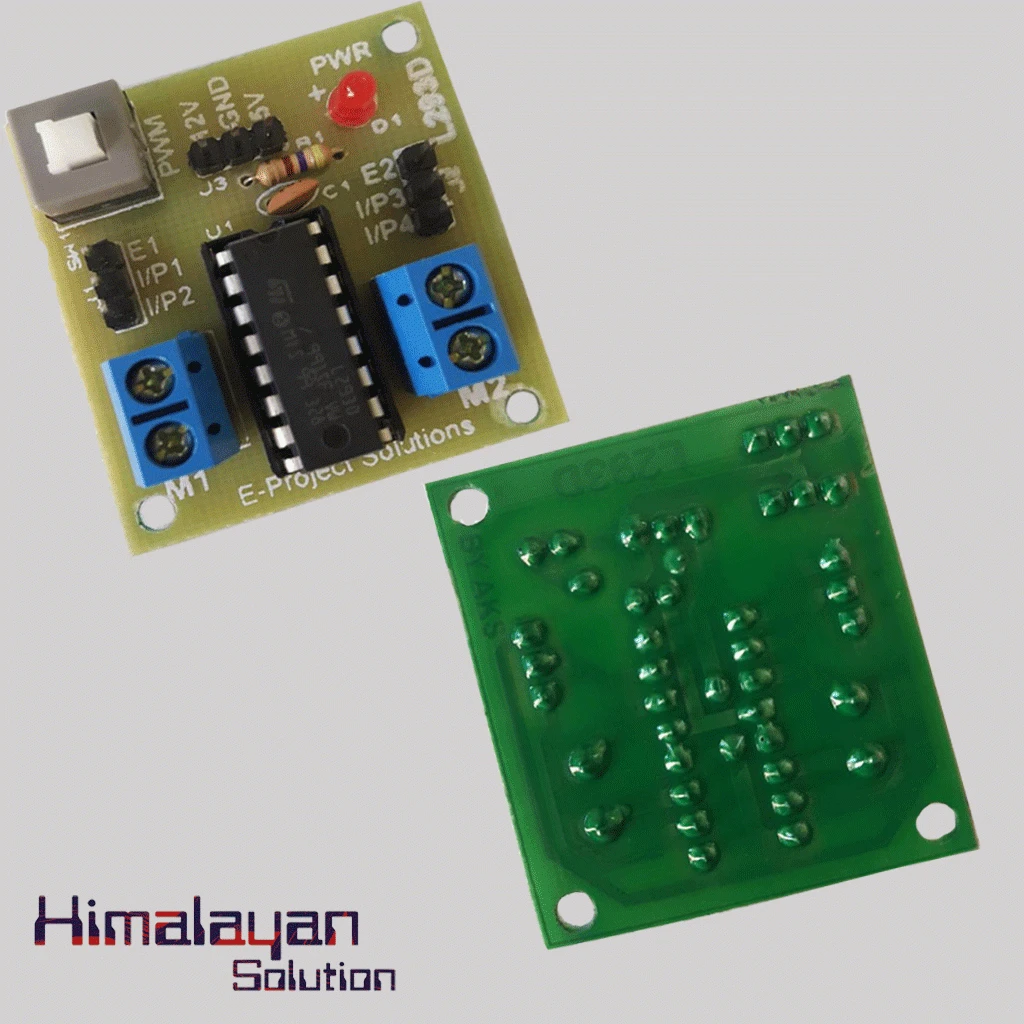

L293D Module
L293D module is power motor driver perfect for driving DC Motors and Stepper Motors used in Robotics projects requiring stepper motor interface.Compatible With Arduino, Raspberry Pi, Arm, Avr, Pic, 8051, etc. It can provide Bidirectional Drive Currents Of Up To 600-Ma at Voltages from 4.5 V To 36 . It is used in Multiple DIY projects and has user accessible enable pins facility medium power motor driver perfect for driving DC Motors and Stepper Motors.It uses the popular L293D motor driver IC. It can drive 4 DC motors in one direction, or drive 2 DC motors in both the directions.Screw terminal connectors for easy motor connection.The driver greatly simplifies and increases the ease with which you may control motors, relays, etc from micro-controllers. It can drive motors upto 36V with a total DC current of up to 600mA. You can connect the two channels in parallel to double the maximum current or in series to double the maximum input voltage.
Availability: In Stock
| Supply Voltage | 4.5 V to 36 V |
| Max Supply Current | 600 mA per motor |
| Size | 48 x 34 x 14 mm |
| Special Features | Dual Motor Drive |
| Output Current | 600mA |
| Operating Voltage | 7 V to 12V DC |
| Weight | 15 gm. |
| Peak Output Current 2 A Per Channel | 1.2 A |
| Operating Temperature | 0°C to 70°C. |
