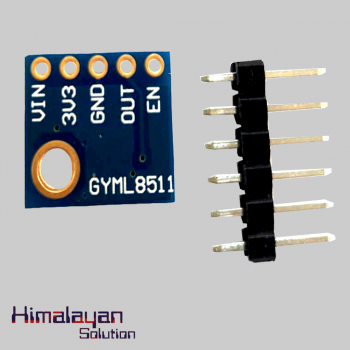

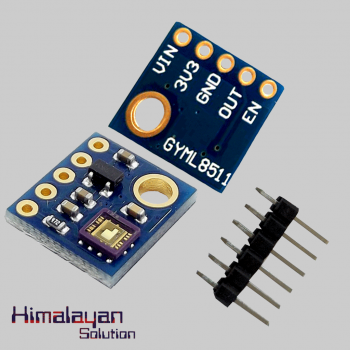

GYML8511 Module (Uv Sensor Module)
The GY-ML8511 module use ML8511 sensor chip. This module is mostly used to detect the UV density either indoor or outdoor. It is suitable for both analog and digital circuits. Its sensors has IC highly integrated SOI-CMOS technology with power saving mode. This sensor module covers both UV-A and UV-B spectrum. By connecting with a microcontroller the analog signal can be converted by an ADC and work with the measurement. It is mostly used in projects to monitor environment condition such as UV index.
Availability: In Stock
Sensor Chip | ML5811 |
Power Supply | 2.5..5V |
Working Voltage | DC 5V |
Working Temperature | -20~70°C |
Sensitive Areas | UV-A, UV-B |
Sensitive Wavelength | 280~390nm |
Module Size | 30 x 22mm |
Current Consumption | 0.1mA |
Viewing Angle | 130 Degrees |
Response Time | 1s |
