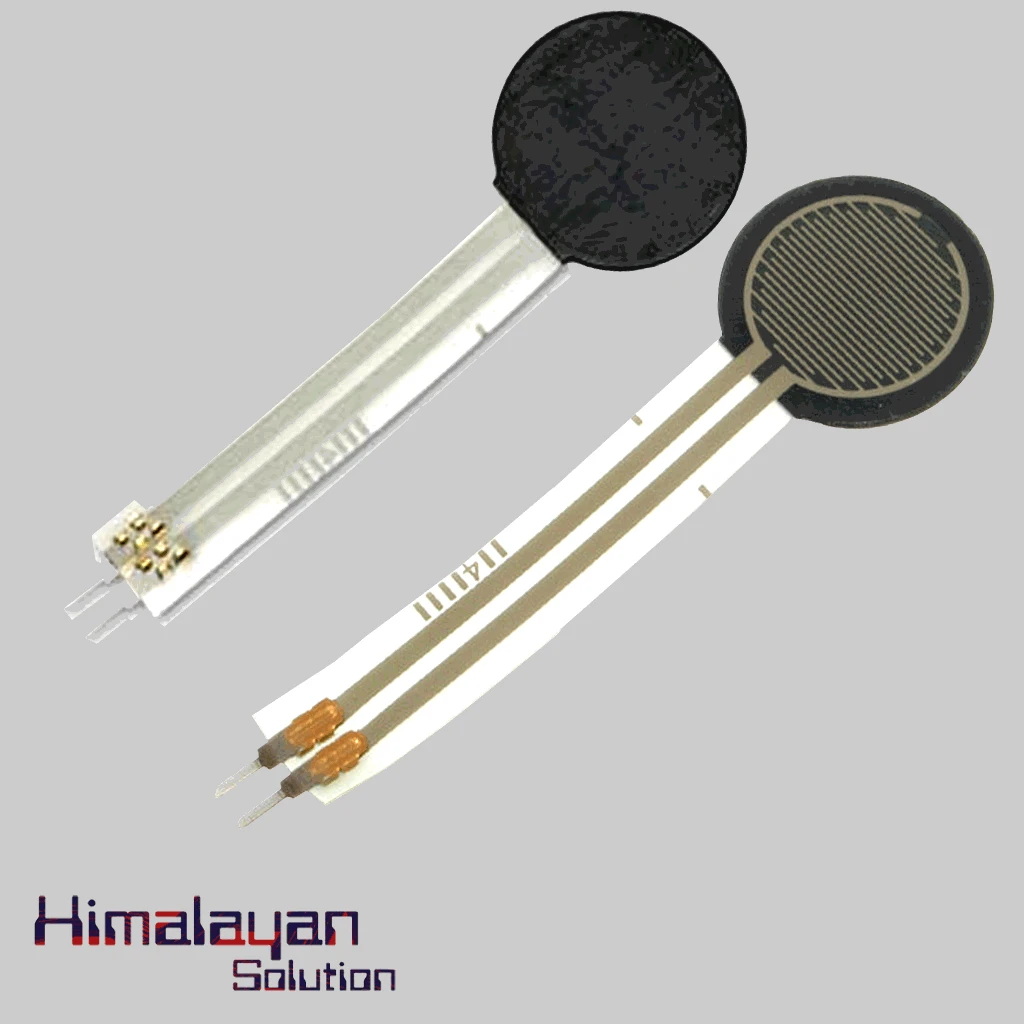

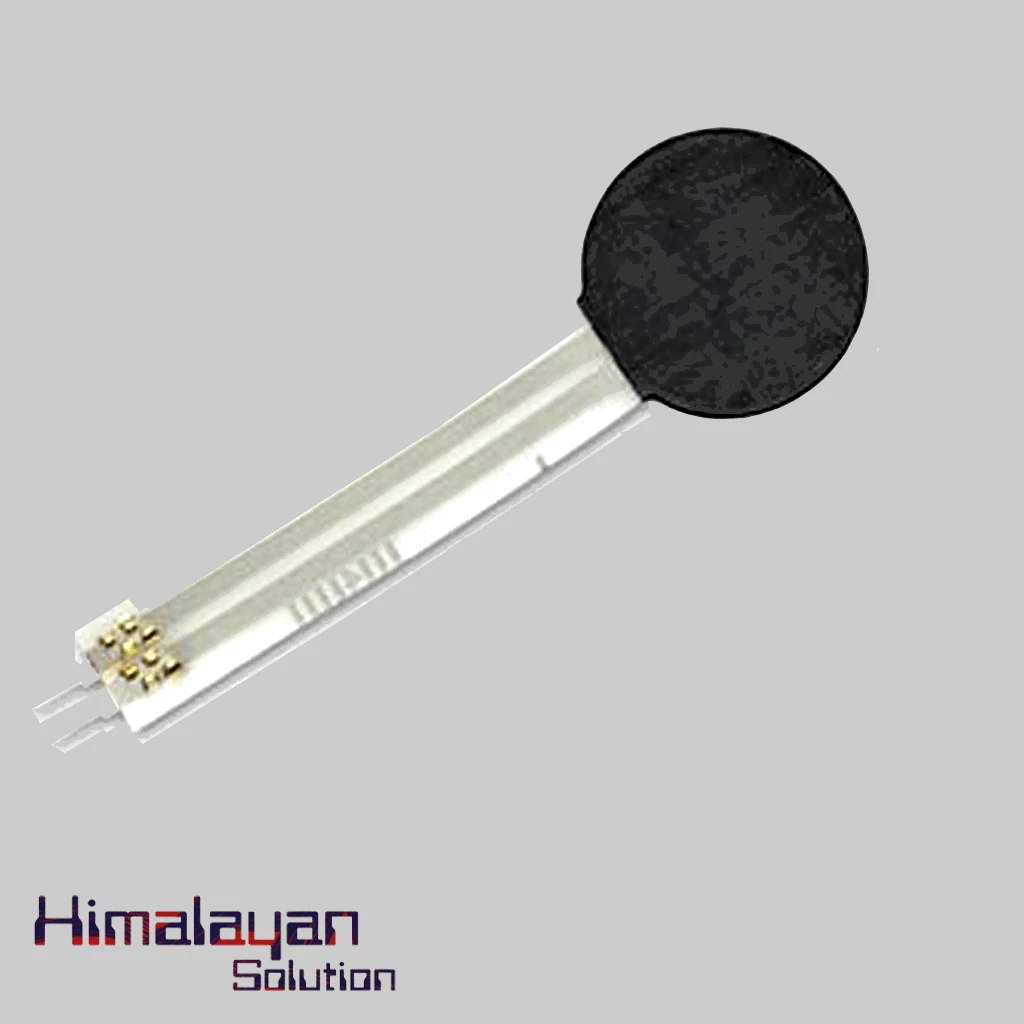

Force Sensitive Resistor (FSR) Sensor Small
The Force Sensitive Resistor (FSR) sensor changes its resistive value depending on how much force is applied. It allows you to detect physical pressure, weight, squeezing. It helps in measuring the amount of forced applied on the sensor. It can be used in Biomechanics, Kinematics, Human – computer interaction, robotics & cybernetics and many more.
Availability: In Stock
| Max Force Detection | Up TO 22lbs (up to 10N) |
| Actuation Force | 0.1N |
| Force Sensitivity Range | 0.1 - 10.02 Newtons |
| Single Part Force Repeatability | ± 2% |
| Resolution | Continuous |
| Part to Part Force Repeatability | ±6% |
| Non-Actuated Resistance | 10M W |
| Thickness Range | 0.2 - 1.25 mm |
| Stand-Off Resistance | >10M ohms Unloaded, unbent |
| Switch Travel (Typical) | 0.05 mm Depends on design |
| Hysteresis: | +/- 10% |
| Device Rise Time | <3 microseconds |
| Long Term Drift | <5% per log(time) |
| Operating Temperature (Recommended) | -30 - +70 ºC |
| Number of Actuations (Life time) | 10 Million tested without failure |
| Active Area Diameter | 0.5” |
| Weight | 0.15 g |
