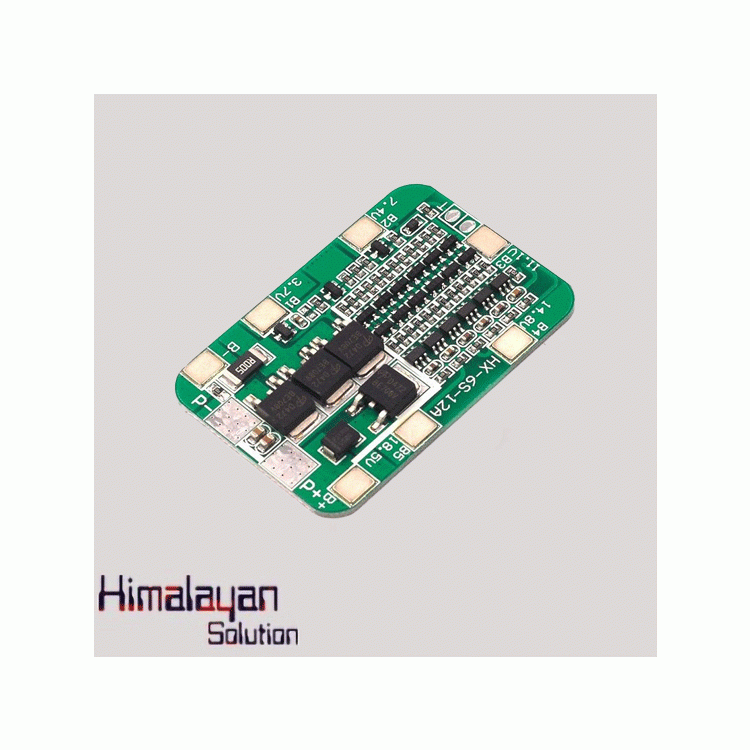

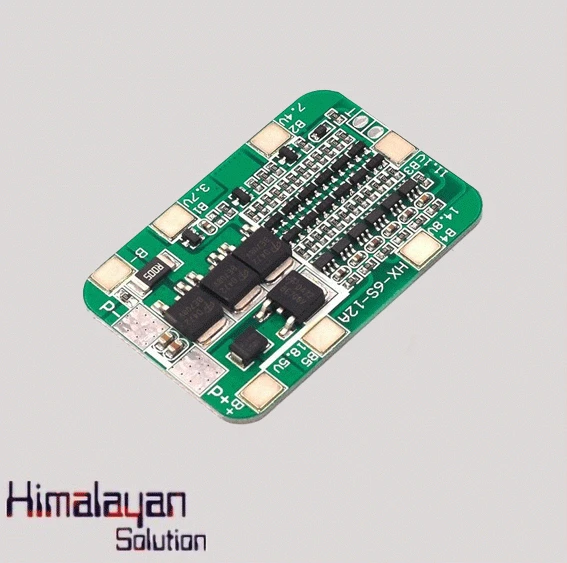

Bms 6 channel 6S Hx-6s-12a
It allows the simultaneous charging of 6 lithium batteries type 18650 or similar (electrically speaking). It is easy to implement and also used to manage the charge and discharge of battery systems that may be part of the electronic projects. It is basically a protection system for overcharging over-discharge and short-circuit.
Availability: In Stock
| Output Voltage | 22..24V |
| Input Voltage | 25.2 - 25.6 VDC |
| Charging Voltage Range | 4.13 to 4.23 VDC (± 0.05 VDC) |
| Over Discharge Voltage Range | 2.55 VDC (± 0.08 VDC ) |
| Maximum Charging Current | 15A |
| Operating Temperature | -30 to 80 ° C |
| Maximum Discharging Current: | 15A |
| Idle Consumption | 10uA |
| Resistance | less than 20m milliohms |
| Size | 31 x 49 x 3.4mm |
