Av Receiver 5.8g 40CH

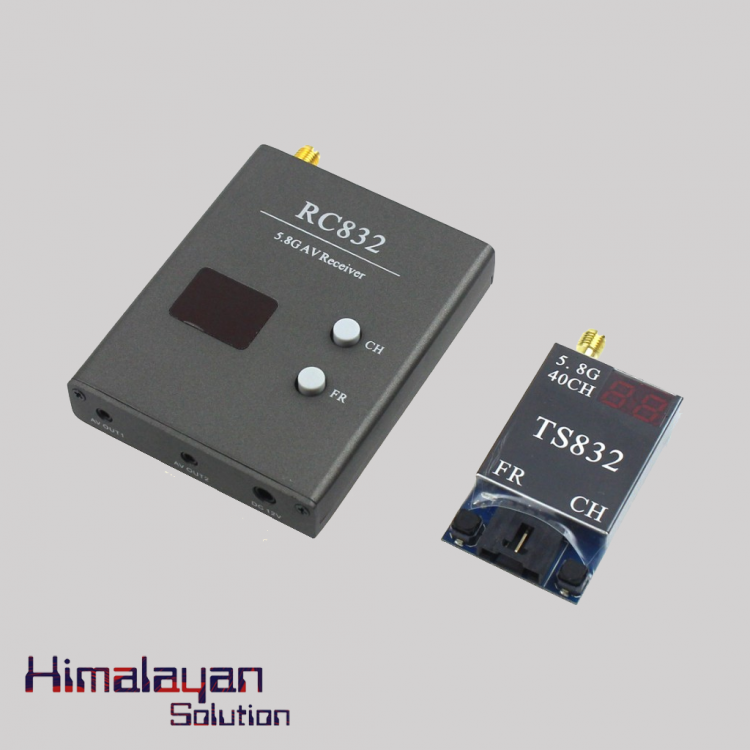

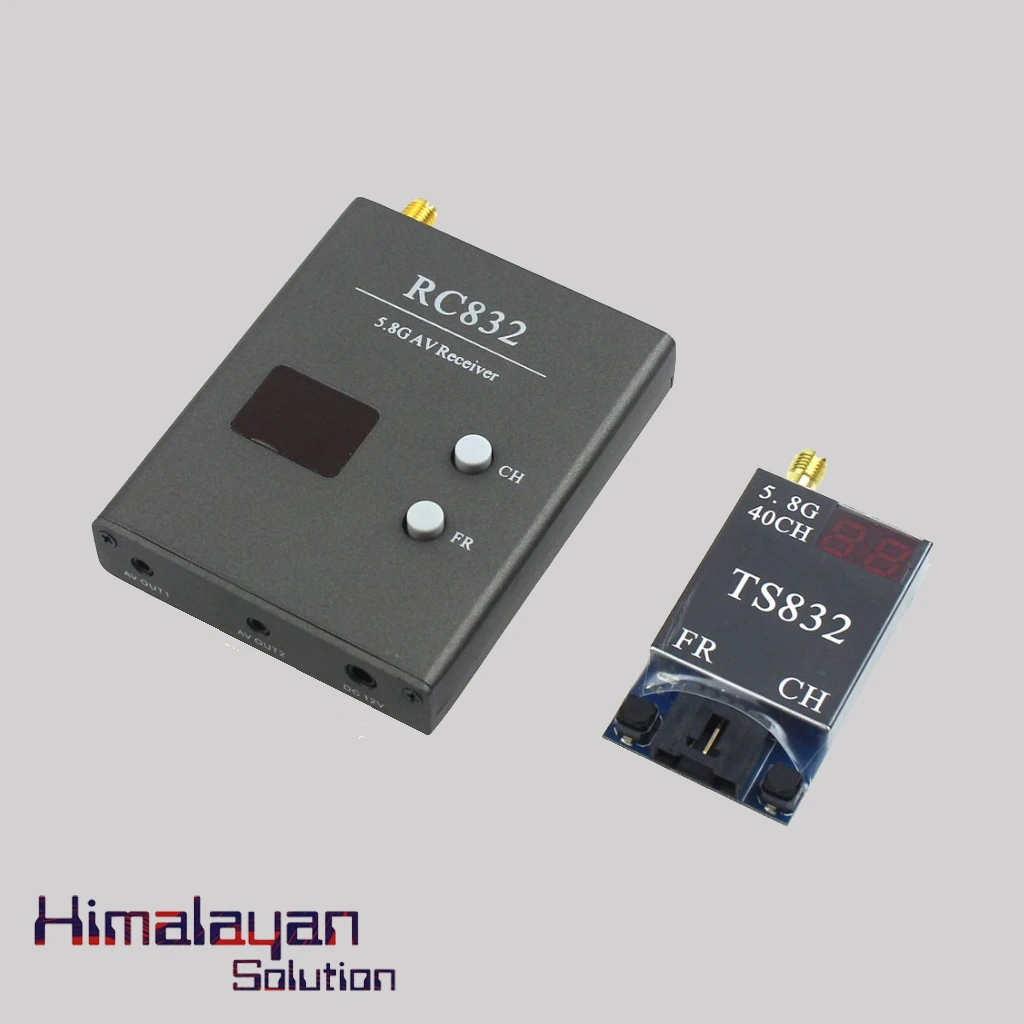

FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + RC832  is used with various kinds of remote control toys like  Rc helicopter , quad copter, airplane and many more as an universal video transmitter and receiver. It is plug and playable with range of more than 5km in an open area. This module has push button and digital display in built for easy channel change. The transmitter is compatible with the old 8 pass receiver and receiver is compatible with the old 8 pass transmitter. It has independent video and audio signal outputs

In Category:
  • Wireless and IOT
  • Wireless Kit
  • Recivers
  • Availability: In Stock

    Trans-receiver Frequency 5.8GHz
    Trans-receiver Frequency Point 40 Points
    Receiver Input voltage 12V
    Receiver Operating Current 200mA Maximum
    Receiver Antenna Impedance 50

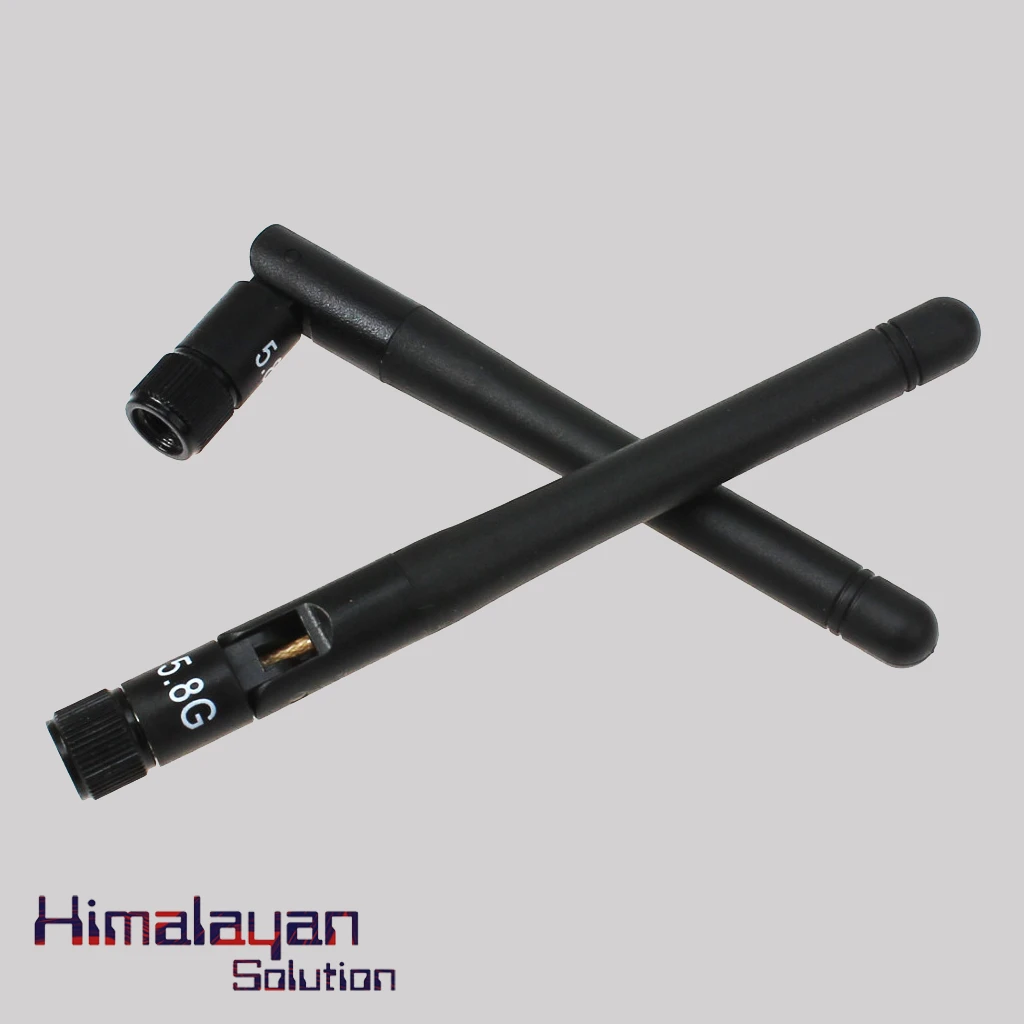

    Antenna Connector Receiving and Transmitting Ends RP-SMA Jack Module Antenna Terminal RP-SMA Plus
    Trans-receiver Antenna Gain 2db
    Receiver Video Impedance 75
    Trans-receiver Video System NTSC / PAL Auto
    Receiver Size 80 * 65 * 15mm
    Receiver Weight 85g
    Transmitter Video Bandwidth 8M
    Transmitter Audio Bandwidth 6.5M
    Transmitter Launch Weight 22g
    Transmitter Size 54 * 32 * 10mm
    Transmit Power 600mw
    Transmitter Operating Current 220mA / 12V
    Transmitter Working Temperature -10-85 Celsius
    Channel 40
