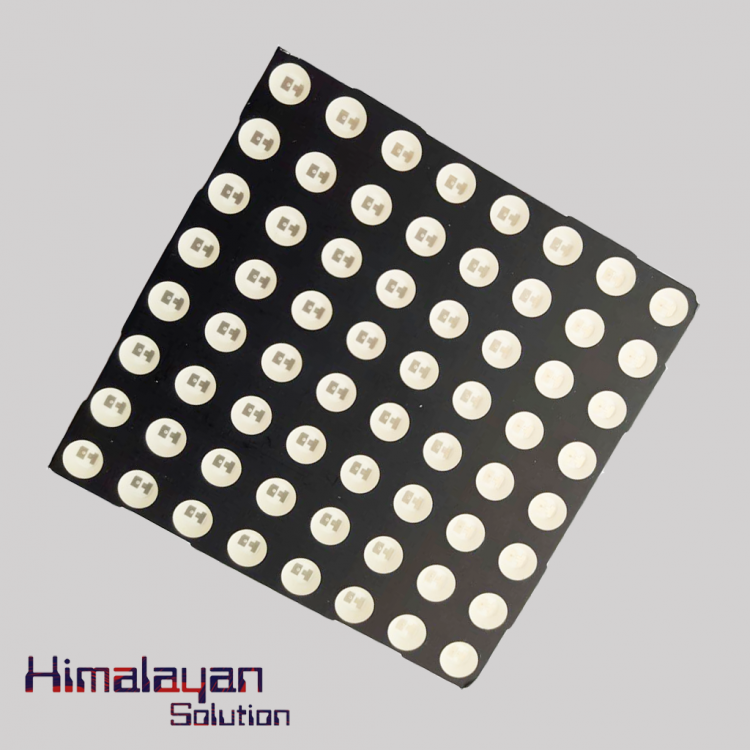

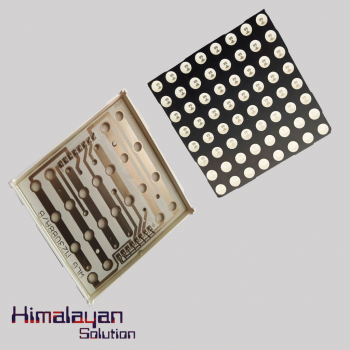

8*8 Matrix Board Red
The 8 x 8 RGB LED Dot Matrix Module(Red) is LED display module that emits red color. It is suitable for both the commercial and Industrial sectors. It can be applicable in audio equipment, Instrument panels, digital read out display and many more.
Availability: In Stock
| Name | 8*8 Matrix Board Red |
| Emitted Colour | Red |
| LED Size | 3mm |
| Peak Wave Length (nm) | 625 ~ 630. |
| Forward Voltage (V) | 2.1 ~ 2.5V |
| Reverse Current (uA) | <= 20 |
| Max Power Dissipation(PM) | 40mW |
| Max Peak Forward Current(IFP) | 100mA |
| Max Continuous Forward Current(IFM) | 20mA |
| Lead Soldering Temperature | 260 Degree (<5Sec) |
| Operating Temperature Range | -30°C ~ +70°C |
| Preservative Temperature Range | -40°C ~ +85°C |
| Size | 32mm X 32mm X 8.0mm |
