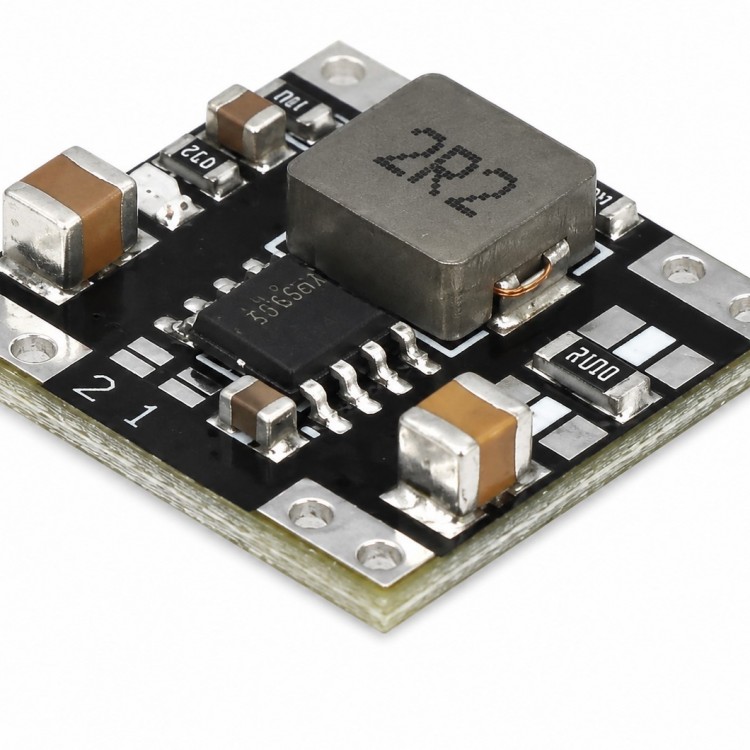

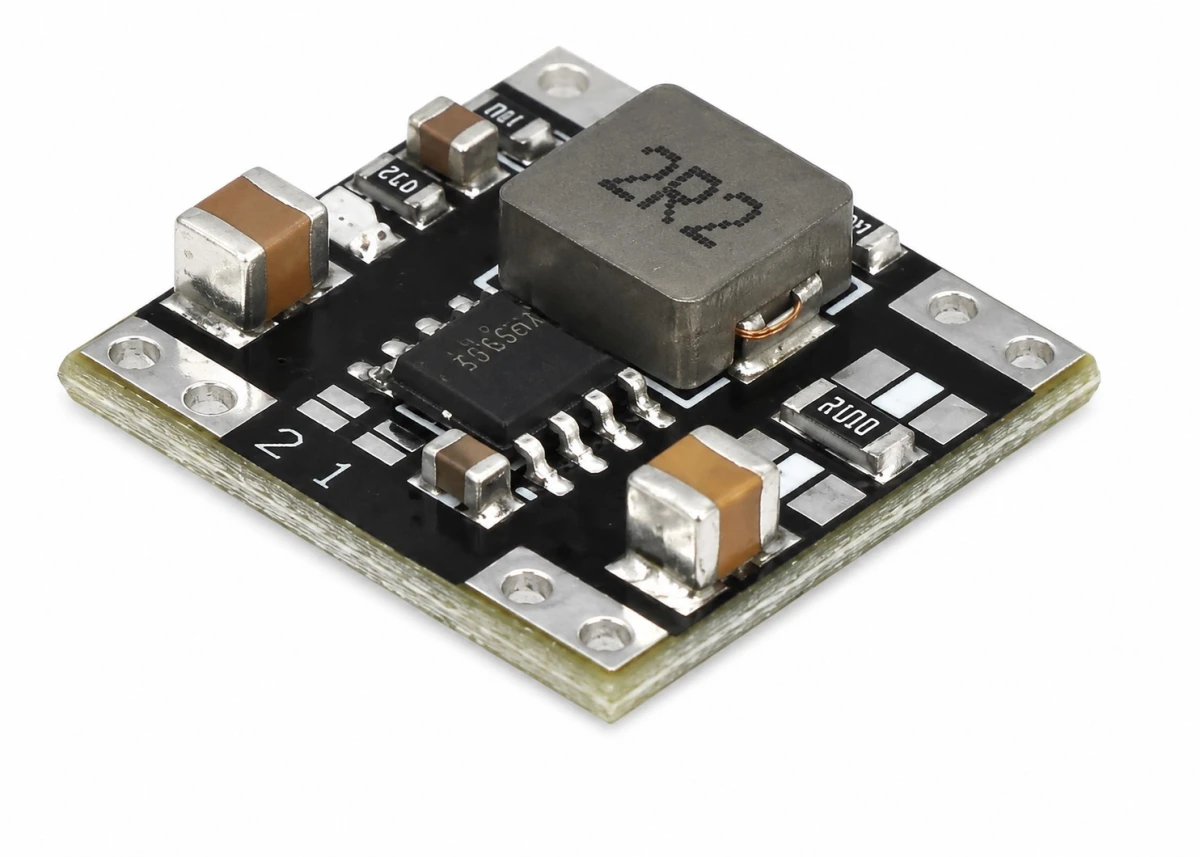

Lithium Battery Charging Buck Converter Board (DC-DC step-down charger module). It is commonly used for charging  3S lithium batteries from a higher DC voltage source like solar panels or adapters.

Usage Points

1. Lithium Battery Charging

• Charges 18650 lithium cells safely
• Supports:
  • 1S (4.2V)
  • 2S (8.4V)
  • 3S (12.6V)

2. Solar Charging Projects

• Can directly charge lithium batteries from solar panels
• Common in:
  • Solar lights
  • DIY solar power banks
  • Portable energy systems

3. Arduino / ESP32 Battery Backup

• Used in IoT projects for rechargeable battery systems
• Keeps batteries charged while powering electronics

4. Automotive & Portable Devices

• Suitable for:
  • Dashcams
  • Portable speakers
  • Mini UPS systems
  • Emergency lights

5. DIY Power Bank Systems

• Used to build custom rechargeable packs
• Can charge battery packs from adapters or solar panels

Important Notes

• Use the correct version:
  • 4.2V for 1 battery
  • 8.4V for 2 batteries in series
  • 12.6V for 3 batteries in series
• Do NOT exceed input voltage limit
• Use proper lithium BMS protection for battery safety
• Ensure correct polarity connection

Advantages

• High efficiency
• Compact size
• Low heating
• Stable charging
• Good for embedded projects
• Simple wiring

Typical Applications

• Solar battery charging
• LED emergency lights
• Portable electronics
• DIY UPS
• Robotics
• Wireless sensor nodes
• Battery-powered displays
