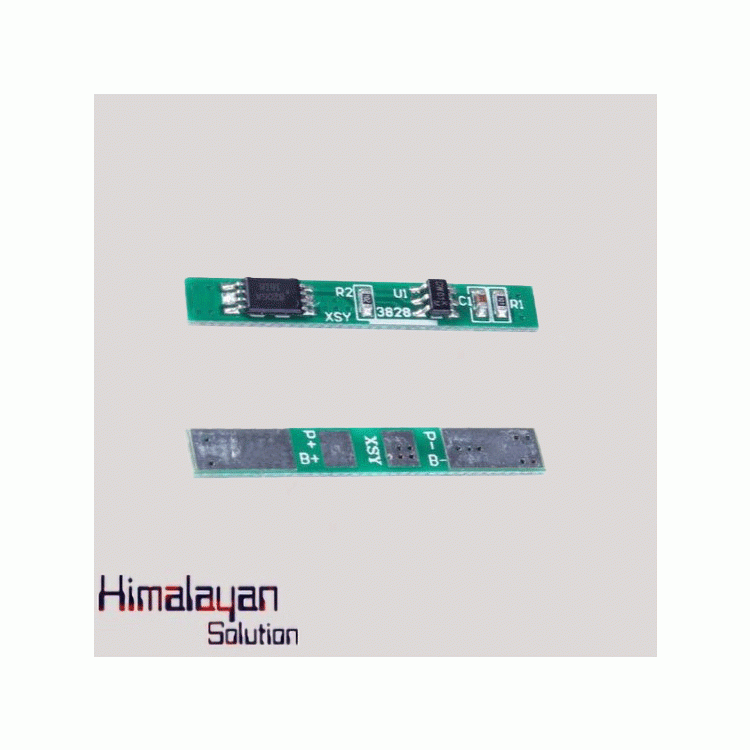

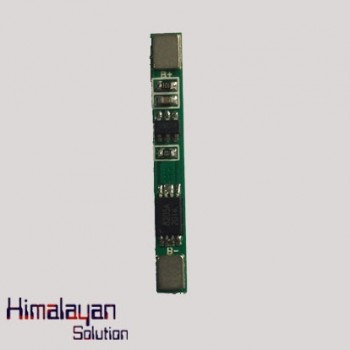

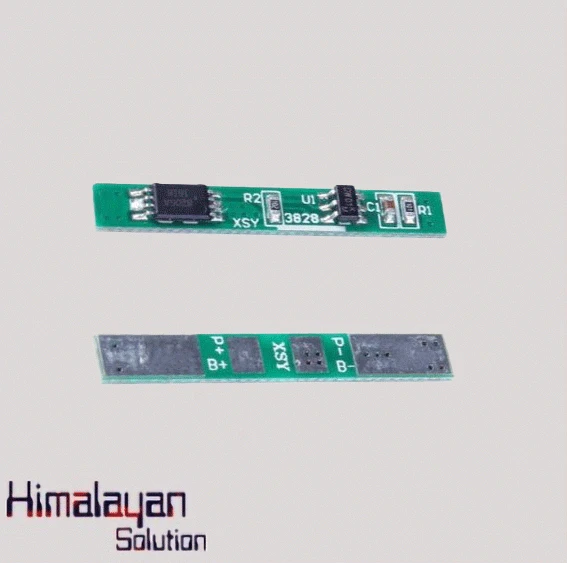

1Channel Bms

It has overcharge, over-discharge, over current, short circuit protection functions for a variety of different shapes of 3.7V capacity lithium batteries. It is well-designed, comprehensive test and compact size too.1Channel Bms is suitable for many requirements of high integration, low-cost occasions can meet the performance requirements of many aspects, to ensure the absolute safety of the battery group.

In Category:
  • inductive chargers
  • Availability: Out Of Stock

    Charging voltage 4.2v
    Over Charge voltage 4.25v plus or minus 0.05v
    Over Discharge voltage 2.45v plus or minus 0.05v
    Max Working current 4A
    Max peak current 5A
    Working temperature -40 ~ +50 Celsius
    Storage Temperature -40 ~ +80 Celsius
    Life cycle more than 30000 hours
    Short Circuit Protection: Protectable, Delayed self-recovery
    Size 35 mm×4mm×2.2mm/ 1.38″ ×0.16″×0.09″(L x W x H)
    • Be the first to review this product
