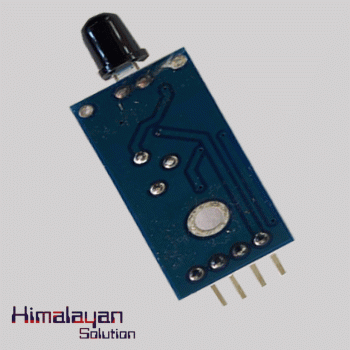

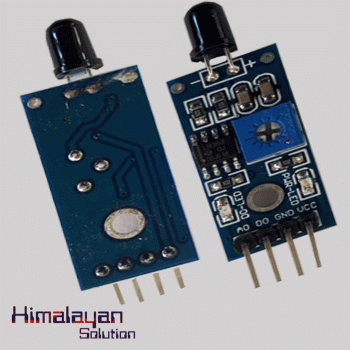

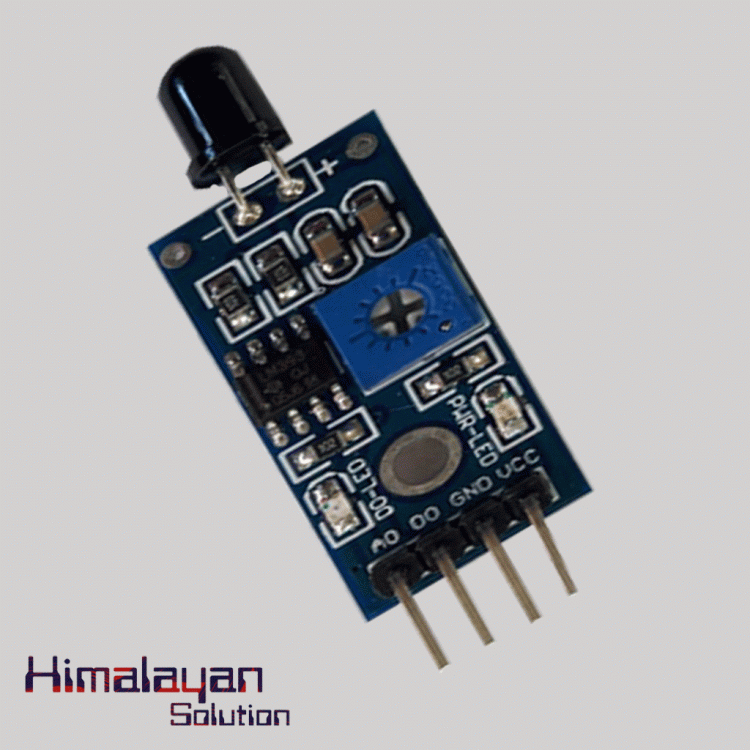

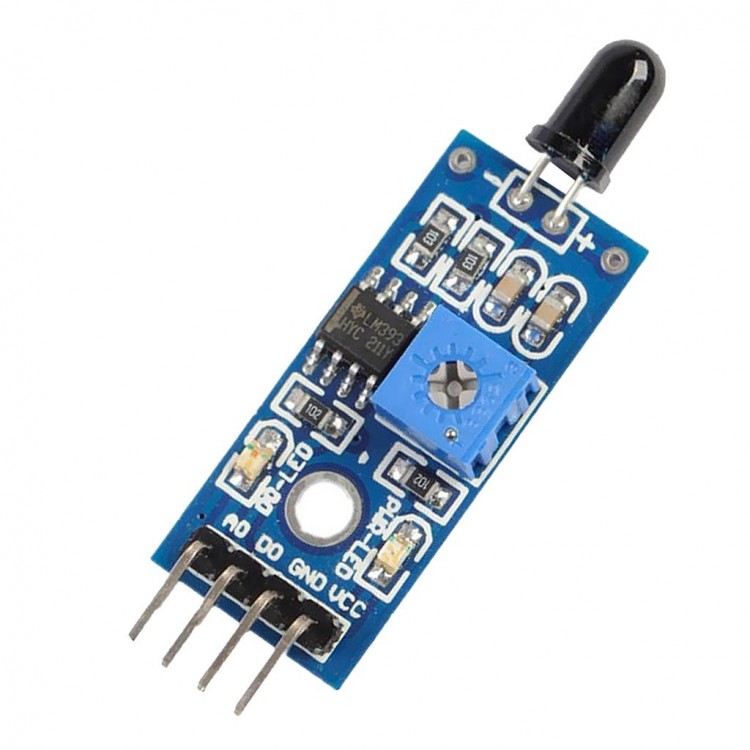

Flame Sensor Module

The flame sensor has wavelength of 760nm to 1100nm. It is mostly used in firefighting robot or heat seeking robot for detecting the flame or light source. The detection range of this module is 100cm. It has adjustable detecting range and be easily mountable.It has inbuilt signal output indicator and power indicator.

In Category:
  • Sensors
  • Availability: In Stock

    Supply Voltage 3.3V to 5V
    Detection Range 20cm (4.8V) ~ 100cm (1V)
    Rang of Spectral Bandwidth  760nm to 1100nm
    Responsive Time  15us
    Interface Analog
    Size 22x30mm
    Detection Distance 20cm (4.8V) ~ 100cm (1V)
    Detection Angle Degree 0 - 60 degree
    Operating temperature: 25℃ ~ 85℃
    Mounting holes size 2.0mm
    Dimension 27.3mm * 15.4mm
