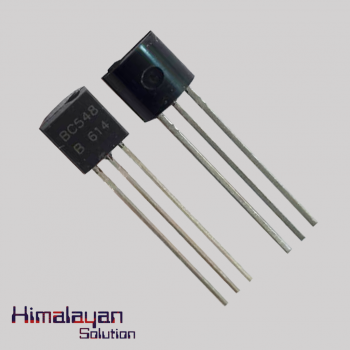

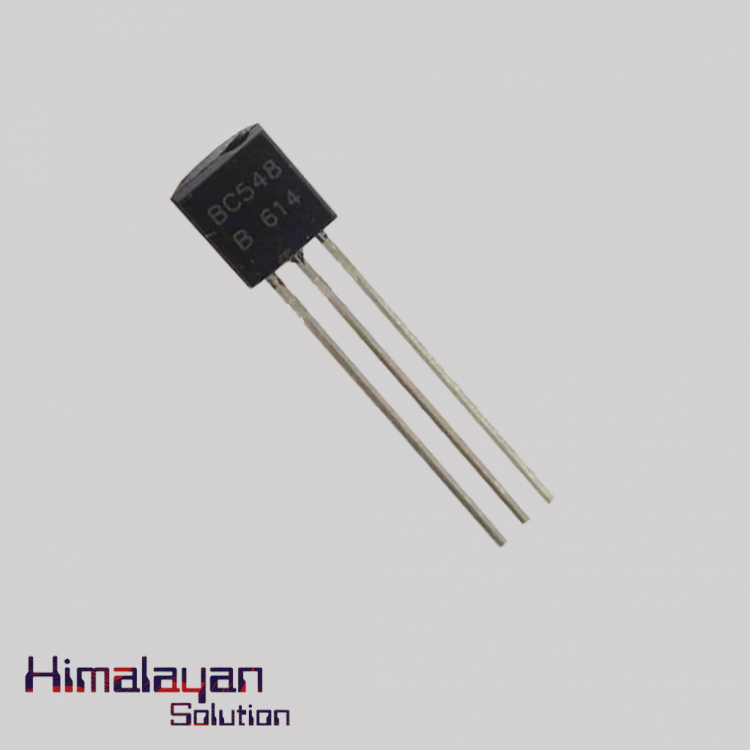

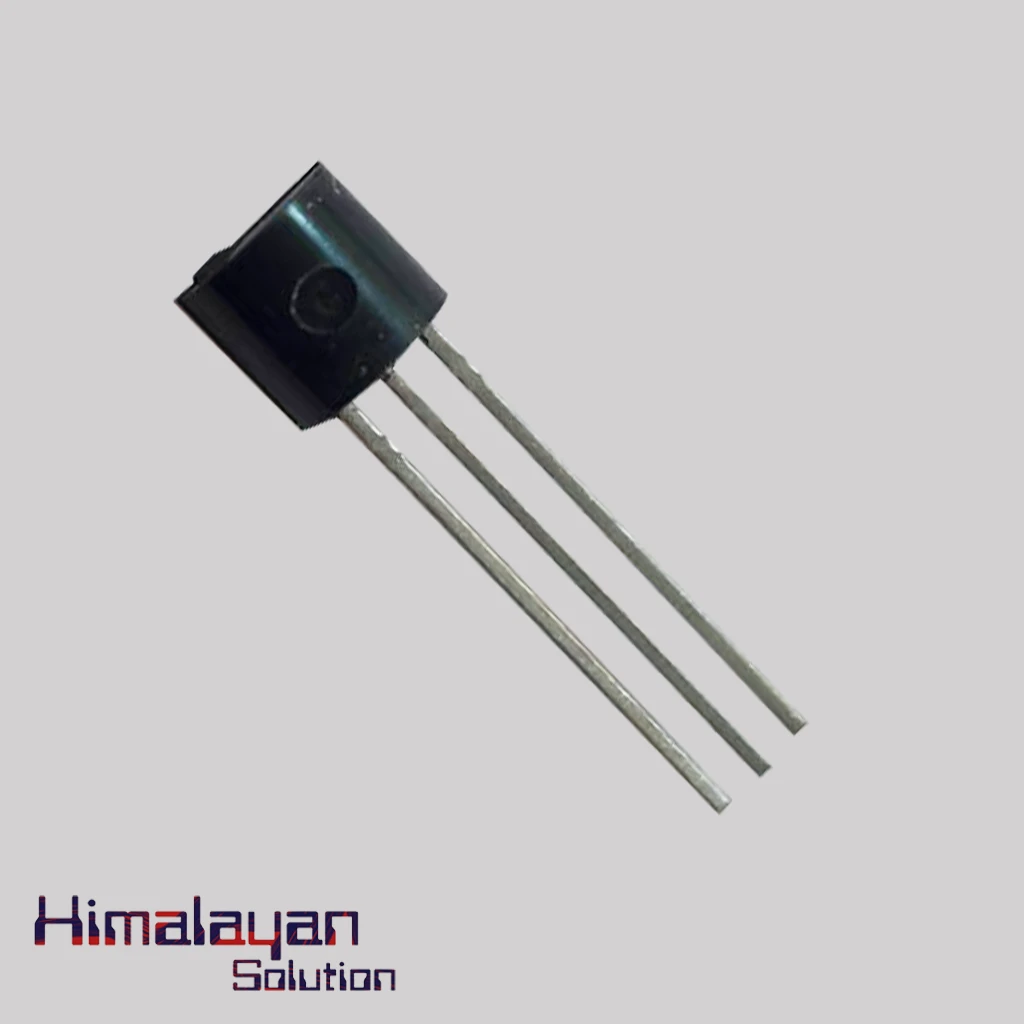

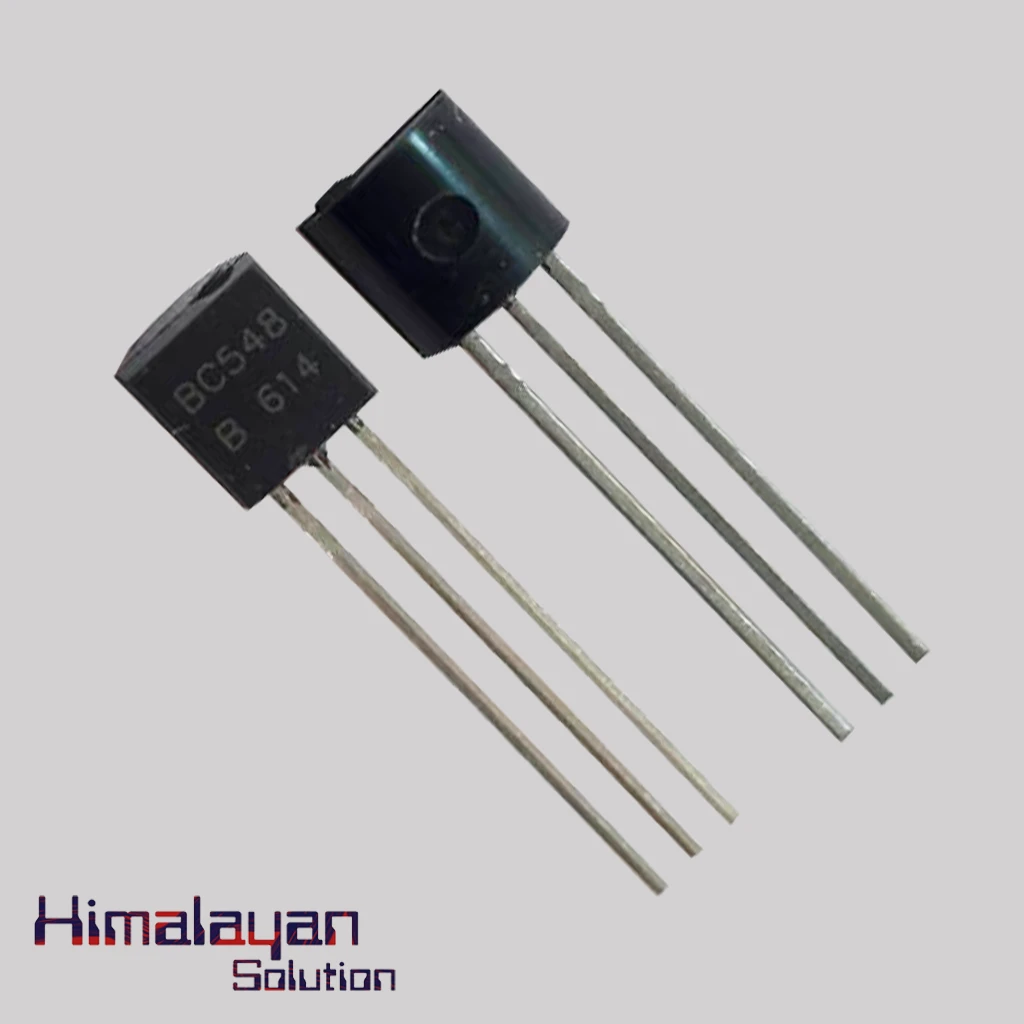

BC 548 Transistor
The BC548 Transistor is an NPN bi-polar junction transistor which has the function of amplifing current. It is mainly used for mainly used for amplification and switching purposes. It has a maximum current gain of 800. It is also equivalent to transistors named BC548 and BC549.
Availability: In Stock
| Product Name | BC548 Transistor |
| Transistor Type | NPN |
| Voltage Collector Emitter Breakdown (Max) | 45V |
| Current Collector (Ic) (Max) | 100mA |
| Power Max | 625mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 2mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 100mA |
| Frequency Transition | 300MHz |
| Mounting Type | Through Hole |
