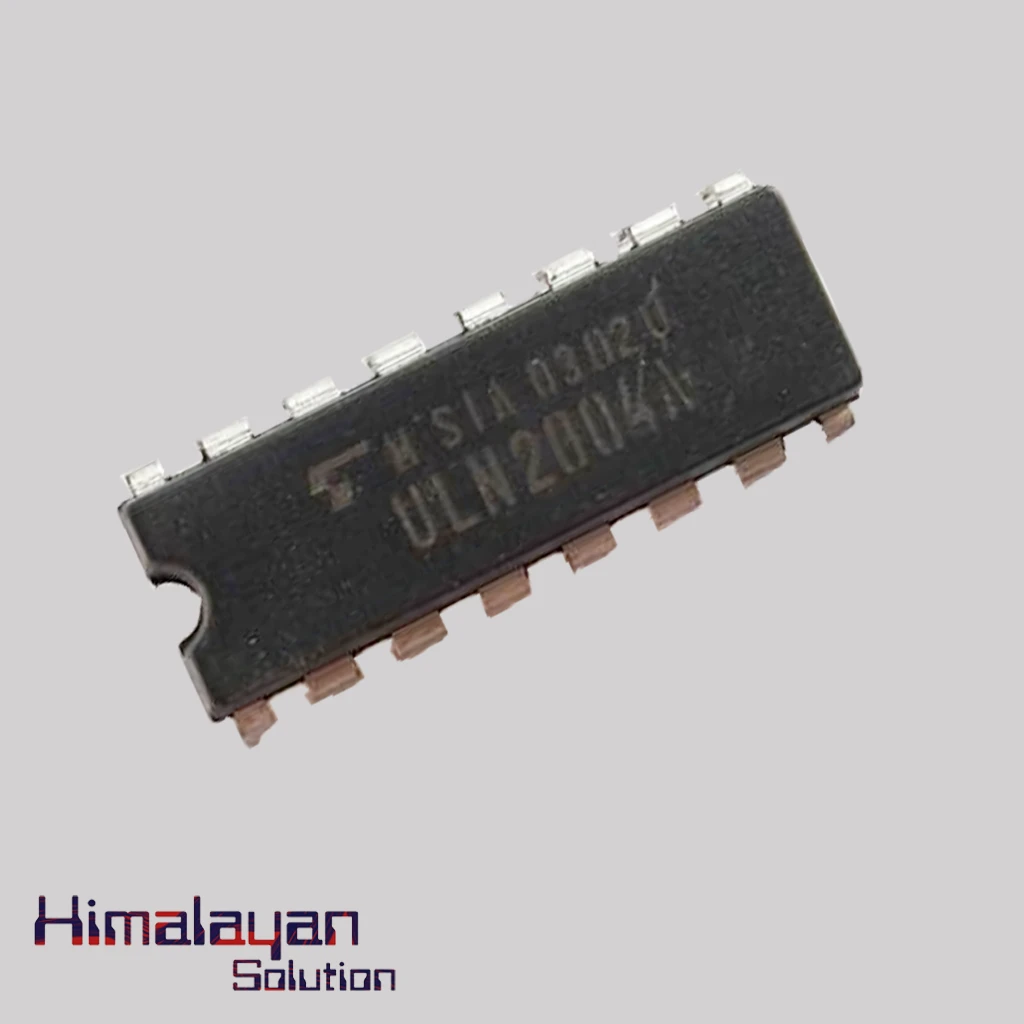

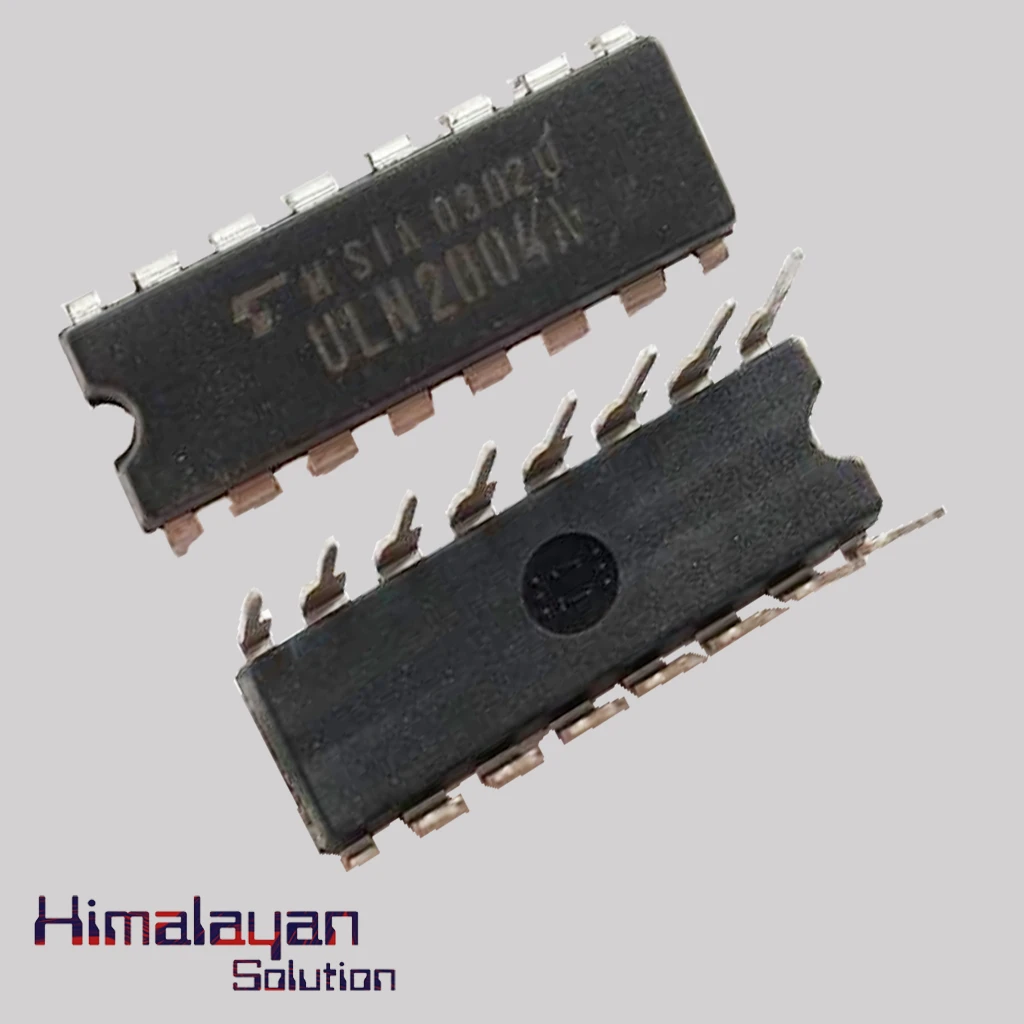

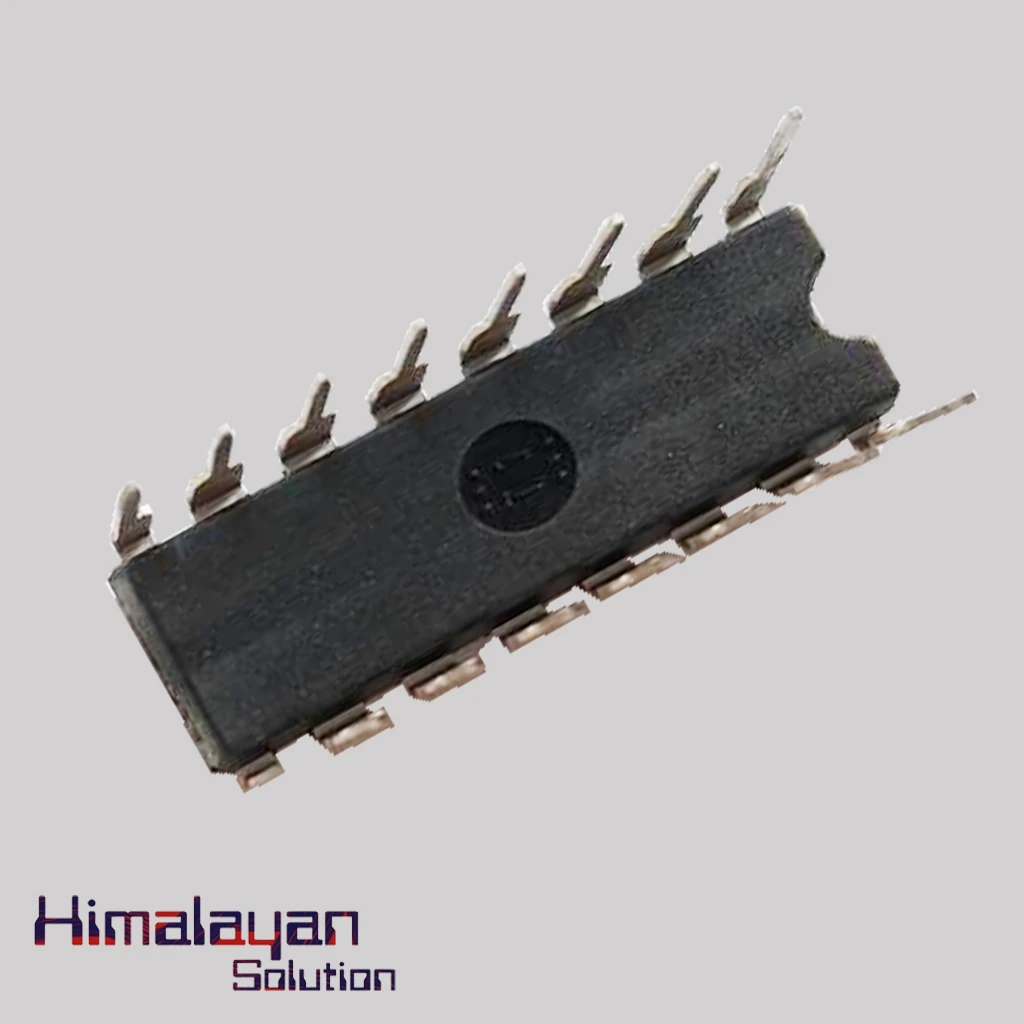

ULN 2004 IC
The ULN2004A is a high voltage and high current Darlington driver that is composed of seven NPN Darlington pairs. It has feature of sustaining high voltage output. It is applicable for relays, lamp and LED displays, Stepper motors, logic buffers and many more
Availability: In Stock
| Name | ULN2004 |
| Switching Voltage (Max) (V) | 50V |
| Peak Output Current (mA) | 500mA |
| Delay Time (Typ) (ns) | 250ns |
| Output Voltage (Max) (V) | 50V |
| Input Compatibility | CMOS TTL |
| Vol Lowest Spec Current (Typ) (mV) | 900mV |
| Iout/ch (Max) (mA) | 500mA |
| Iout_off (Typ) (uA) | 50uA |
| Pins | 16 |
| Drivers Per Package | 7 |
