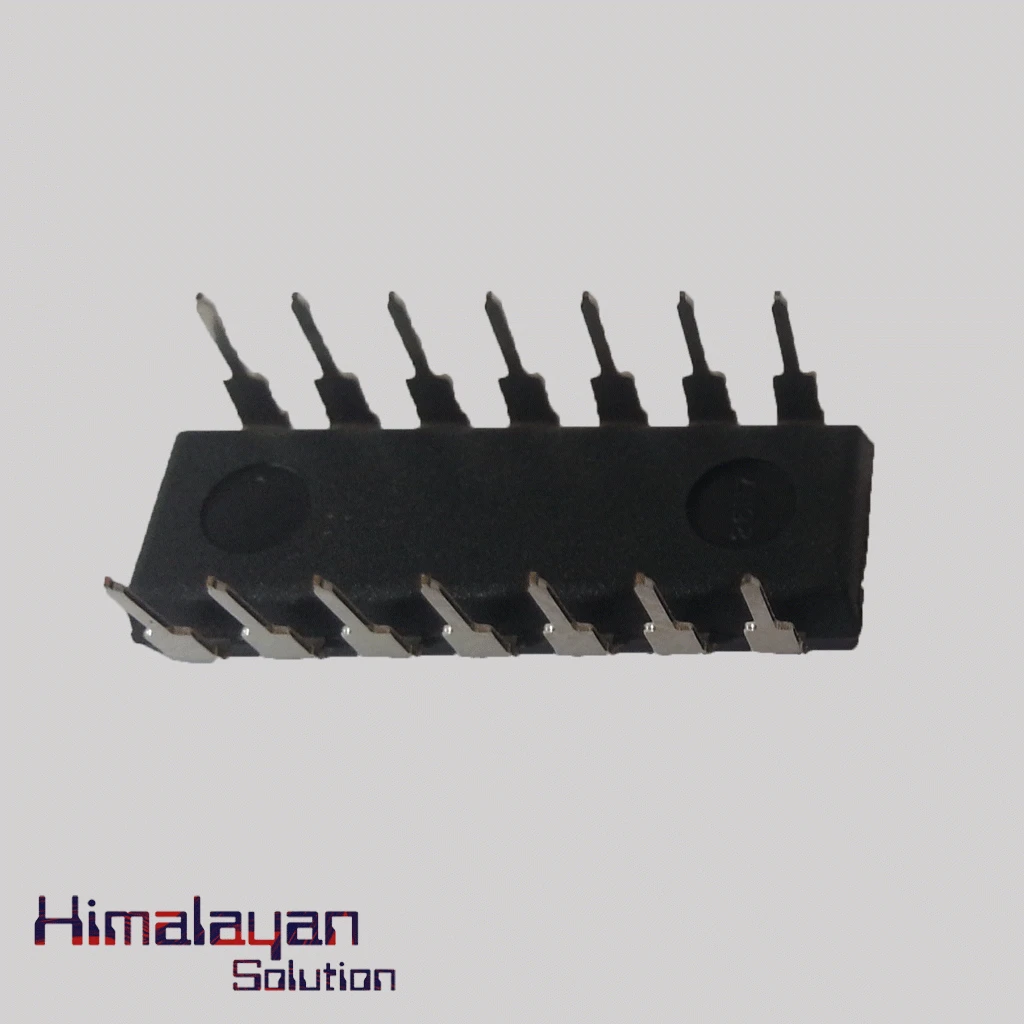

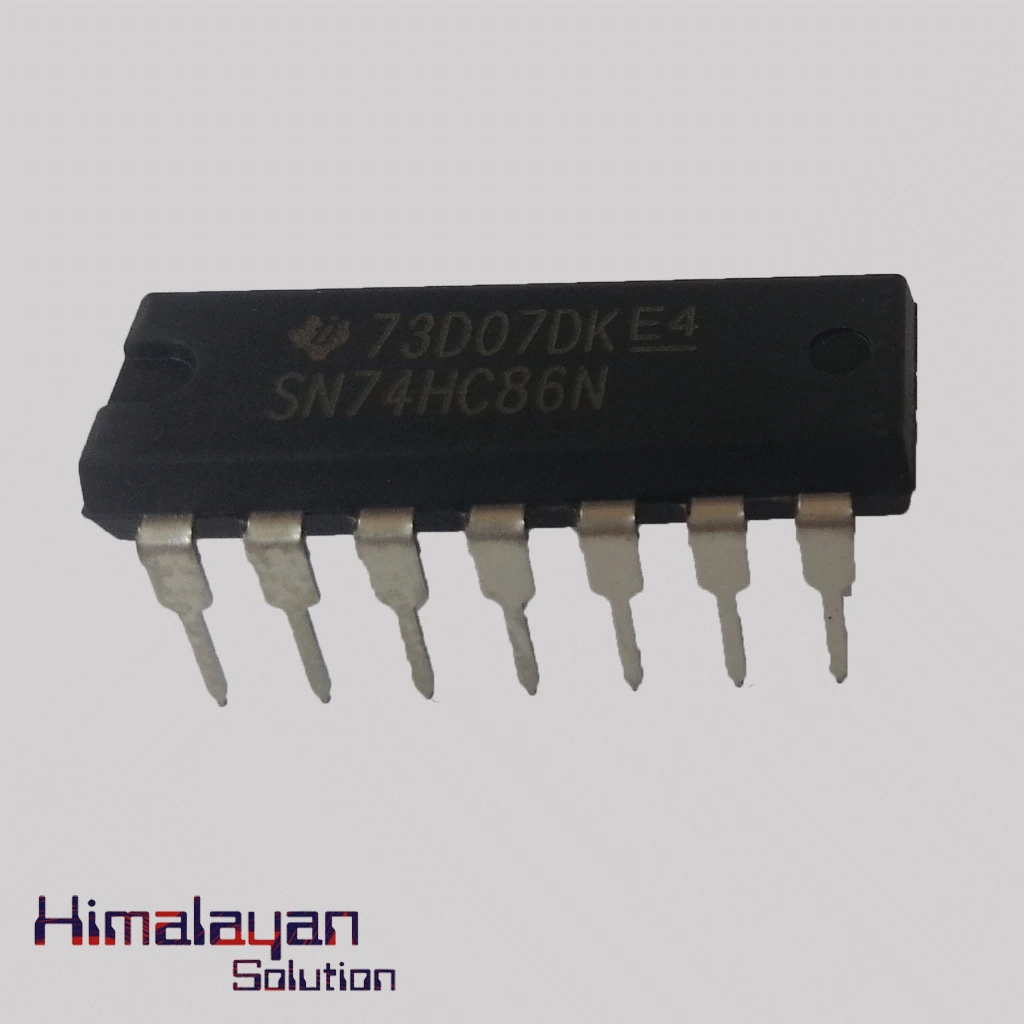

SN74HC86N IC

The SN74HC86N is a quadruple 2-input Exclusive-OR Gate performs the Boolean function Y = A * B or Y = A\B + A(B\) in positive logic. A common application is as a true/complement element. If one of the inputs is low the other input is reproduced in true form at the output. If one of the inputs is high the signal on the other input is reproduced inverted at the output. It has a wide operating voltage range and  has low power consumption.

In Category:
  • Basic Electronics Components
  • ICS
  • Availability: In Stock

    Name SN74HC86N IC
    Series 74HC
    Logic Type XOR (Exclusive OR)
    Number of Circuits 4
    Number of Inputs 2
    Voltage Supply 2 to 6 V
    Current Quiescent 2µA MAX
    Current-Output High,Low 5.2 mA, 5.2 mA
    Logic Level-Low 0.5 to 1.8 V
    Logic Level-High 1.5V to 4.2V
    Max Propagation Delay @V,Max CL 17ns@6V, 50 pF
    Operating Temperature -40° to 85° C
    Mounting Type Through Hole
